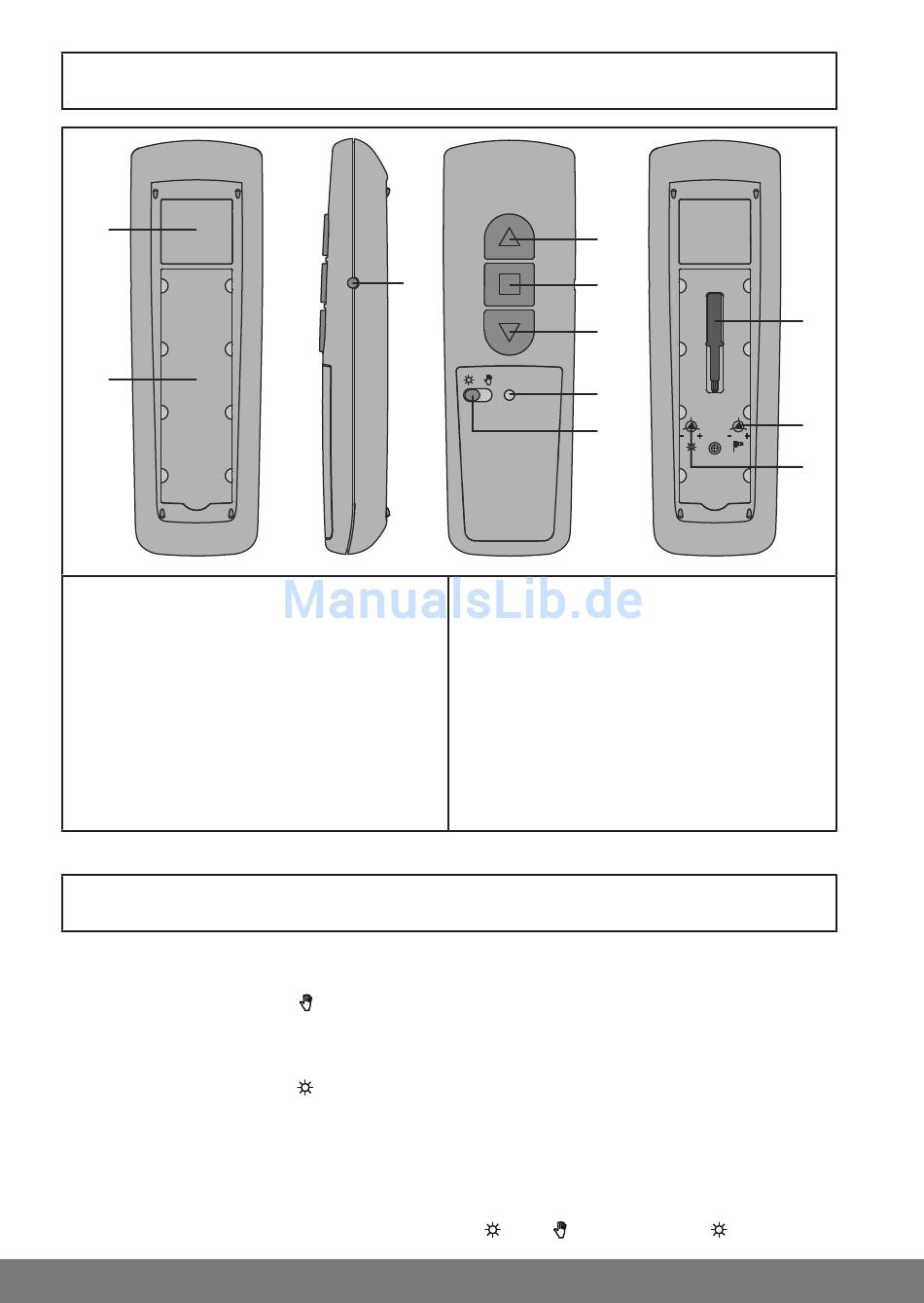

Explanation of displays and buttons

11
10
1. Setting tool
2. Wind threshold regulator
3. Sun threshold regulator
4. RETRACT button
5. STOP button
6. EXTEND button
Manual/Automatic slide switch
In slide switch position " " only manual drive commands and alarm signals can
be performed (e.g.: RETRACT, STOP, EXTEND via button actuation and wind
alarm).
In slide switch position " " automatic drive commands are performed (e.g.
sun protection, ...).
The automatic sun protection functions are interrupted if a manual drive com-
mand is carried out when in automatic mode. These functions are automatic-
ally re-activated if upper/lower threshold limits are violated, following retrac-
tion, or if the slide switch is switched from " " to " " and back to " ".
20 - en
9

Explanation of functions

4
5
6
7
8
7. Channel indicator lamp
8. Slide switch
9. Programming button
10. Labelling field
11. Type plate
