ENGLISH

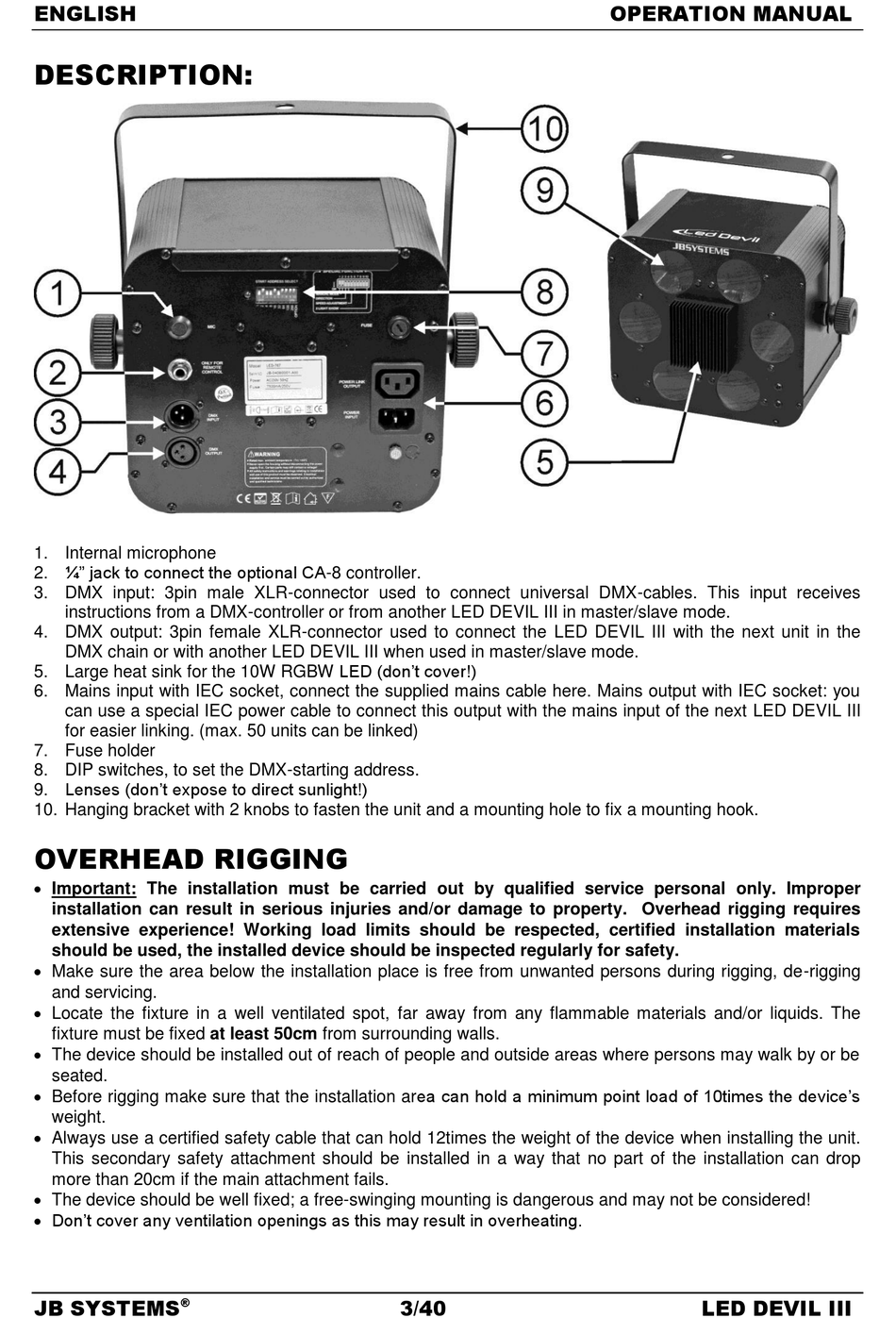

DESCRIPTION:
1. Internal microphone
2. ¼" jack to connect the optional CA-8 controller.
3. DMX input: 3pin male XLR-connector used to connect universal DMX-cables. This input receives
instructions from a DMX-controller or from another LED DEVIL III in master/slave mode.
4. DMX output: 3pin female XLR-connector used to connect the LED DEVIL III with the next unit in the
DMX chain or with another LED DEVIL III when used in master/slave mode.
5. Large heat sink for the 10W RGBW LED (don't cover!)
6. Mains input with IEC socket, connect the supplied mains cable here. Mains output with IEC socket: you
can use a special IEC power cable to connect this output with the mains input of the next LED DEVIL III
for easier linking. (max. 50 units can be linked)
7. Fuse holder
8. DIP switches, to set the DMX-starting address.
9. Lenses (don't expose to direct sunlight!)
10. Hanging bracket with 2 knobs to fasten the unit and a mounting hole to fix a mounting hook.

OVERHEAD RIGGING

 Important: The installation must be carried out by qualified service personal only. Improper
installation can result in serious injuries and/or damage to property. Overhead rigging requires
extensive experience! Working load limits should be respected, certified installation materials
should be used, the installed device should be inspected regularly for safety.
 Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging
and servicing.
 Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. The
fixture must be fixed at least 50cm from surrounding walls.
 The device should be installed out of reach of people and outside areas where persons may walk by or be
seated.
 Before rigging make sure that the installation area can hold a minimum point load of 10times the device's
weight.
 Always use a certified safety cable that can hold 12times the weight of the device when installing the unit.
This secondary safety attachment should be installed in a way that no part of the installation can drop
more than 20cm if the main attachment fails.
 The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!
 Don't cover any ventilation openings as this may result in overheating.
JB SYSTEMS
®
3/40
OPERATION MANUAL
LED DEVIL III
