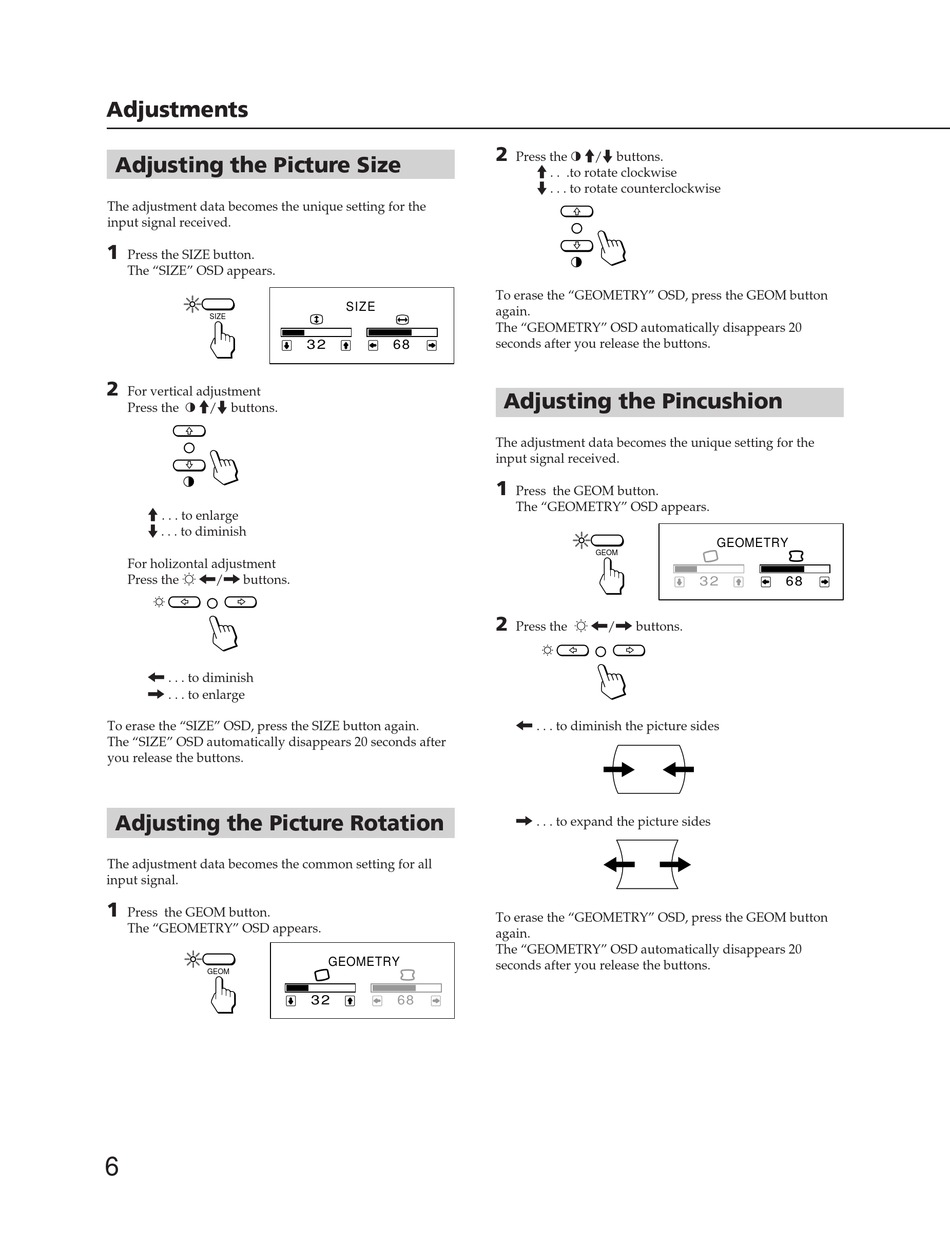

Adjustments
Adjusting the Picture Size
The adjustment data becomes the unique setting for the
input signal received.
1
Press the SIZE button.
The "SIZE" OSD appears.
SIZE
2
For vertical adjustment
Press the > >/. buttons.
> . . . to enlarge
. . . . to diminish
For holizontal adjustment
Press the ¨ ?// buttons.
? . . . to diminish
/ . . . to enlarge
To erase the "SIZE" OSD, press the SIZE button again.
The "SIZE" OSD automatically disappears 20 seconds after
you release the buttons.

Adjusting the Picture Rotation

The adjustment data becomes the common setting for all
input signal.
1
Press the GEOM button.
The "GEOMETRY" OSD appears.
GEOM
6
SIZE
3 2 68
GEOMETRY
3 2 68
2
Press the > >/. buttons.
> . . .to rotate clockwise
. . . . to rotate counterclockwise
To erase the "GEOMETRY" OSD, press the GEOM button
again.
The "GEOMETRY" OSD automatically disappears 20
seconds after you release the buttons.
Adjusting the Pincushion
The adjustment data becomes the unique setting for the
input signal received.
1
Press the GEOM button.
The "GEOMETRY" OSD appears.
GEOM
2
Press the ¨ ?// buttons.
? . . . to diminish the picture sides
/ . . . to expand the picture sides
To erase the "GEOMETRY" OSD, press the GEOM button
again.
The "GEOMETRY" OSD automatically disappears 20
seconds after you release the buttons.
GEOMETRY
3 2 68
