Overview

³ Lever arm
· Hand grip
Roller base
¿ Rotatable loading surface
´ Swivelling head

Technical data

Loading per roller base: 150 kg
Loading Lever arm: 150 kg
Weight: ca. 1,1 kg
Placing furniture on the roller
bases
1.
Ensure that there is sufficient space available to
work safely.
2. Remove obstacles, e.g. other furniture items,
within ca. 1,5 m from the roller bases ».
Hints:
To avoid an irregular elevation, always place
the lever arm in the middle of the side to be
lifted.

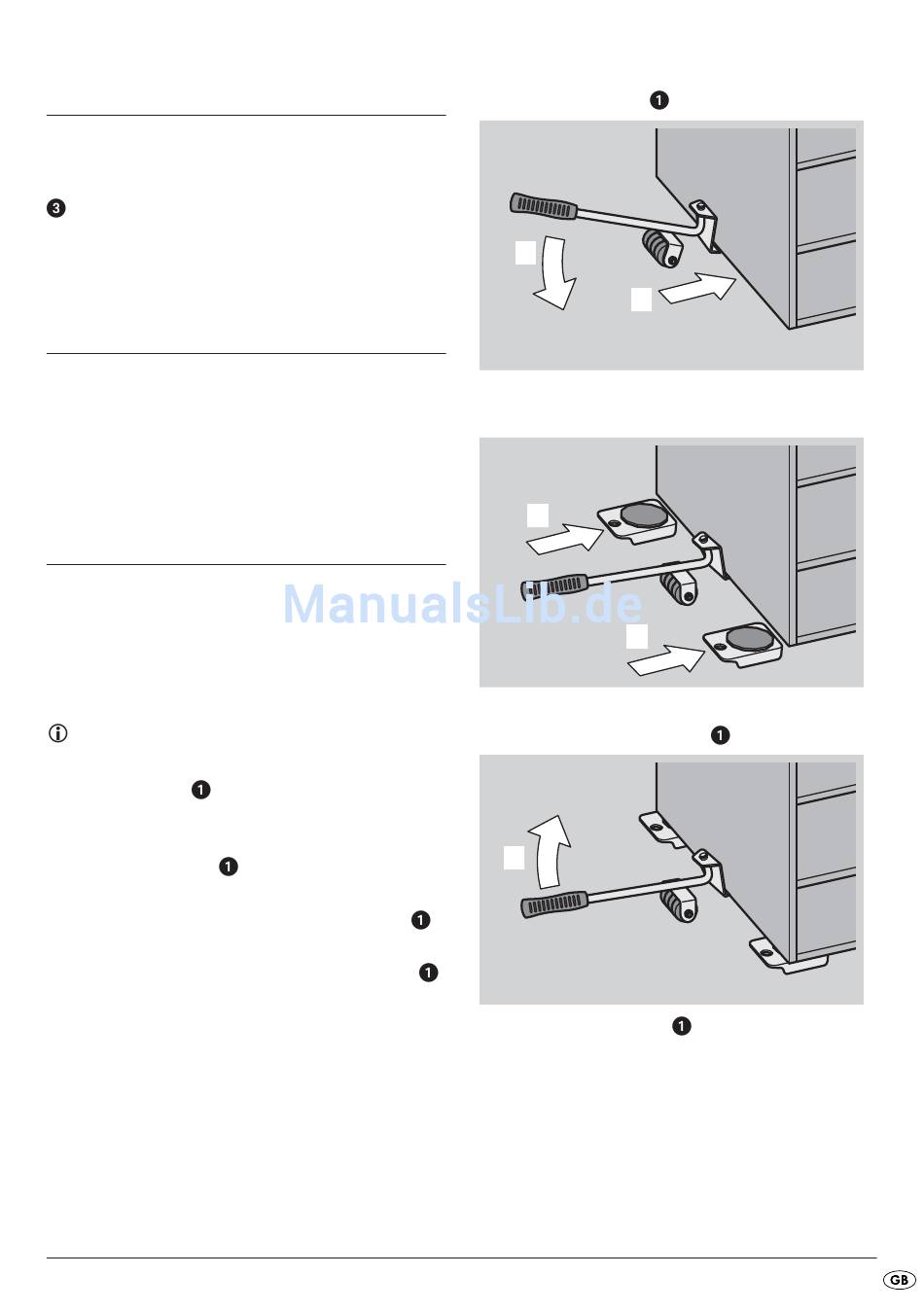

1. Hold the lever arm
this you will require the least effort.
Push the swivelling head ´ of the lever arm
2.
under the furniture and in the middle of it (A).
3. To lift the furniture, slowly press the lever arm
down (B).
at the hand grip ·. With
4. Hold the lever arm
B
Place one roller base » (C) under each raised
5.
corner of the furniture piece.
C
6. To lower the furniture piece onto the roller base
», slowly lift the lever arm
D
7. Remove the lever arm
8.
Repeat the above procedure for the opposite
side of the furniture piece.
- 3 -
pressed down.
A
C
(D).
.
