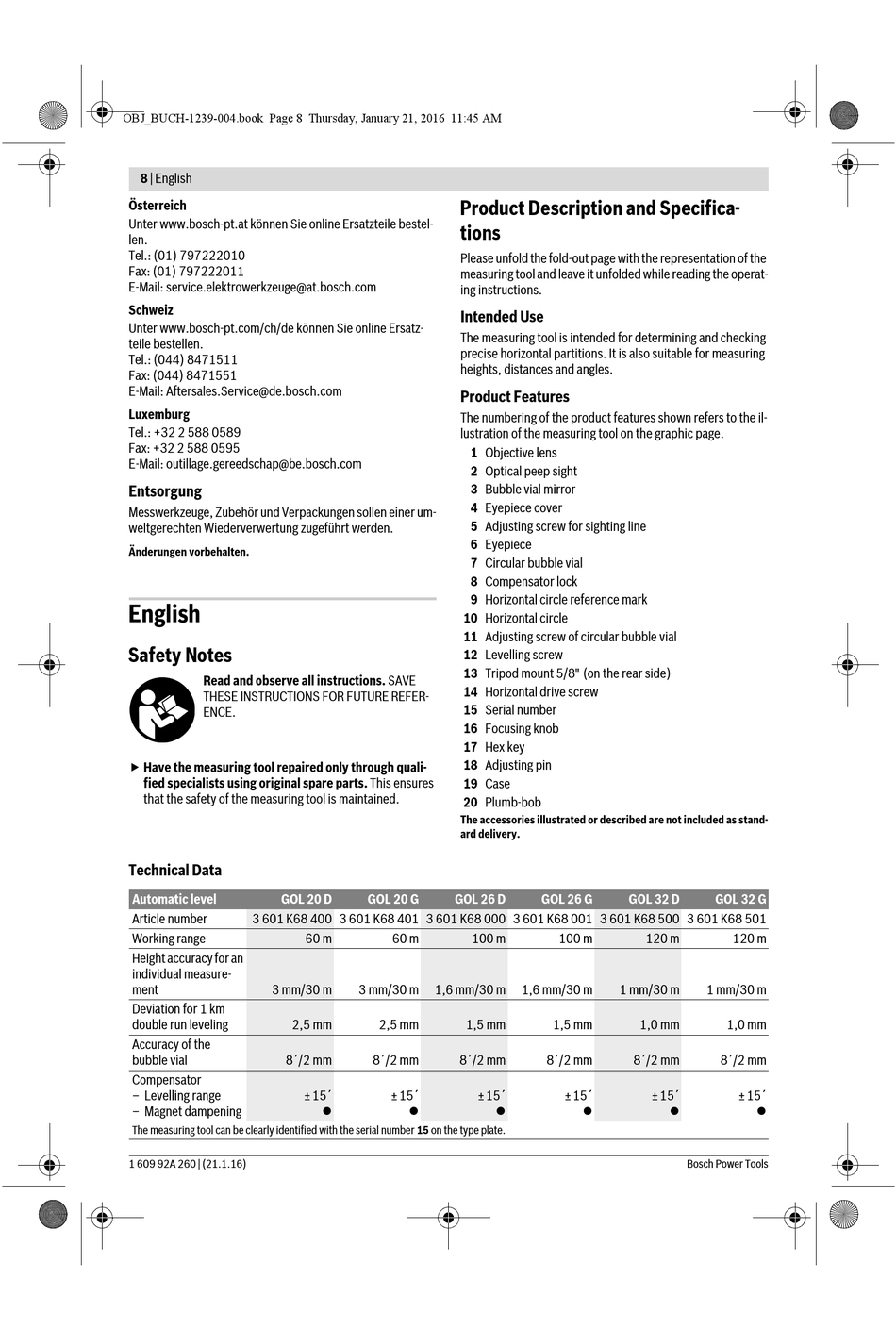

8 | English

Österreich
Unter www.bosch-pt.at können Sie online Ersatzteile bestel-
len.
Tel.: (01) 797222010
Fax: (01) 797222011
E-Mail: service.elektrowerkzeuge@at.bosch.com
Schweiz
Unter www.bosch-pt.com/ch/de können Sie online Ersatz-
teile bestellen.
Tel.: (044) 8471511
Fax: (044) 8471551
E-Mail: Aftersales.Service@de.bosch.com
Luxemburg
Tel.: +32 2 588 0589
Fax: +32 2 588 0595
E-Mail: outillage.gereedschap@be.bosch.com

Entsorgung

Messwerkzeuge, Zubehör und Verpackungen sollen einer um-
weltgerechten Wiederverwertung zugeführt werden.
Änderungen vorbehalten.
English

Safety Notes

Read and observe all instructions. SAVE
THESE INSTRUCTIONS FOR FUTURE REFER-
ENCE.
 Have the measuring tool repaired only through quali-
fied specialists using original spare parts. This ensures
that the safety of the measuring tool is maintained.

Technical Data

Automatic level GOL 20 D
Article number 3 601 K68 400 3 601 K68 401 3 601 K68 000 3 601 K68 001 3 601 K68 500 3 601 K68 501
Working range
Height accuracy for an
individual measure-
ment 3 mm/30 m
Deviation for 1 km
double run leveling 2,5 mm
Accuracy of the
bubble vial 8´/2 mm
Compensator
– Levelling range
– Magnet dampening
The measuring tool can be clearly identified with the serial number 15 on the type plate.
1 609 92A 260 | (21.1.16)
Product Description and Specifica-
tions
Please unfold the fold-out page with the representation of the
measuring tool and leave it unfolded while reading the operat-
ing instructions.
Intended Use
The measuring tool is intended for determining and checking
precise horizontal partitions. It is also suitable for measuring
heights, distances and angles.
Product Features
The numbering of the product features shown refers to the il-
lustration of the measuring tool on the graphic page.
1 Objective lens
2 Optical peep sight
3 Bubble vial mirror
4 Eyepiece cover
5 Adjusting screw for sighting line
6 Eyepiece
7 Circular bubble vial
8 Compensator lock
9 Horizontal circle reference mark
10 Horizontal circle
11 Adjusting screw of circular bubble vial
12 Levelling screw
13 Tripod mount 5/8" (on the rear side)
14 Horizontal drive screw
15 Serial number
16 Focusing knob
17 Hex key
18 Adjusting pin
19 Case
20 Plumb-bob
The accessories illustrated or described are not included as stand-
ard delivery.
GOL 20 G GOL 26 D
60 m 60 m 100 m
3 mm/30 m 1,6 mm/30 m
2,5 mm 1,5 mm
8´/2 mm 8´/2 mm
±15´ ±15´
 
GOL 26 G GOL 32 D
100 m 120 m
1,6 mm/30 m 1 mm/30 m
1,5 mm 1,0 mm
8´/2 mm 8´/2 mm
±15´ ±15´
 
GOL 32 G
120 m
1 mm/30 m
1,0 mm
8´/2 mm
±15´ ±15´
 
