DIRIS A20 - RS485 - JBUS/MODBUS

PRELIMINARY OPERATIONS

For personnel and product safety please read the
contents of these operating instructions carefully
before connecting.
Check the following points as soon as you receive
the Diris A 20 package:
• the packing is in good condition,
• the product has not been damaged during transit,

GENERAL INFORMATION

Functions
The optional Communication module must be
connected to the DIRIS A20 (ref. 4825 0A20). It pro-
vides an RS485 serial link (2 or 3 wires) with
protocol for the use of DIRIS A20
JBUS/MODBUS ®
from a PC or PLC.
Programmable
controllers
Other systems
Programmable
controllers
Other systems
Recommendations:
You should use a shielded twisted pair (LIYCY type). In
a disturbed environment or large network (in terms of
length) we recommend the use of a shielded twisted
pair (type LIYCY-CY).
A repeater (1 channel) or an arrestor (4 channels)
should be used if you intend to exceed the distance
(1200 m) and/or maximum number (31) of DIRIS .
Please contact us for more information.
16
®
• the product reference number conforms to your
order,
• the package contains the product and the operating
instructions.

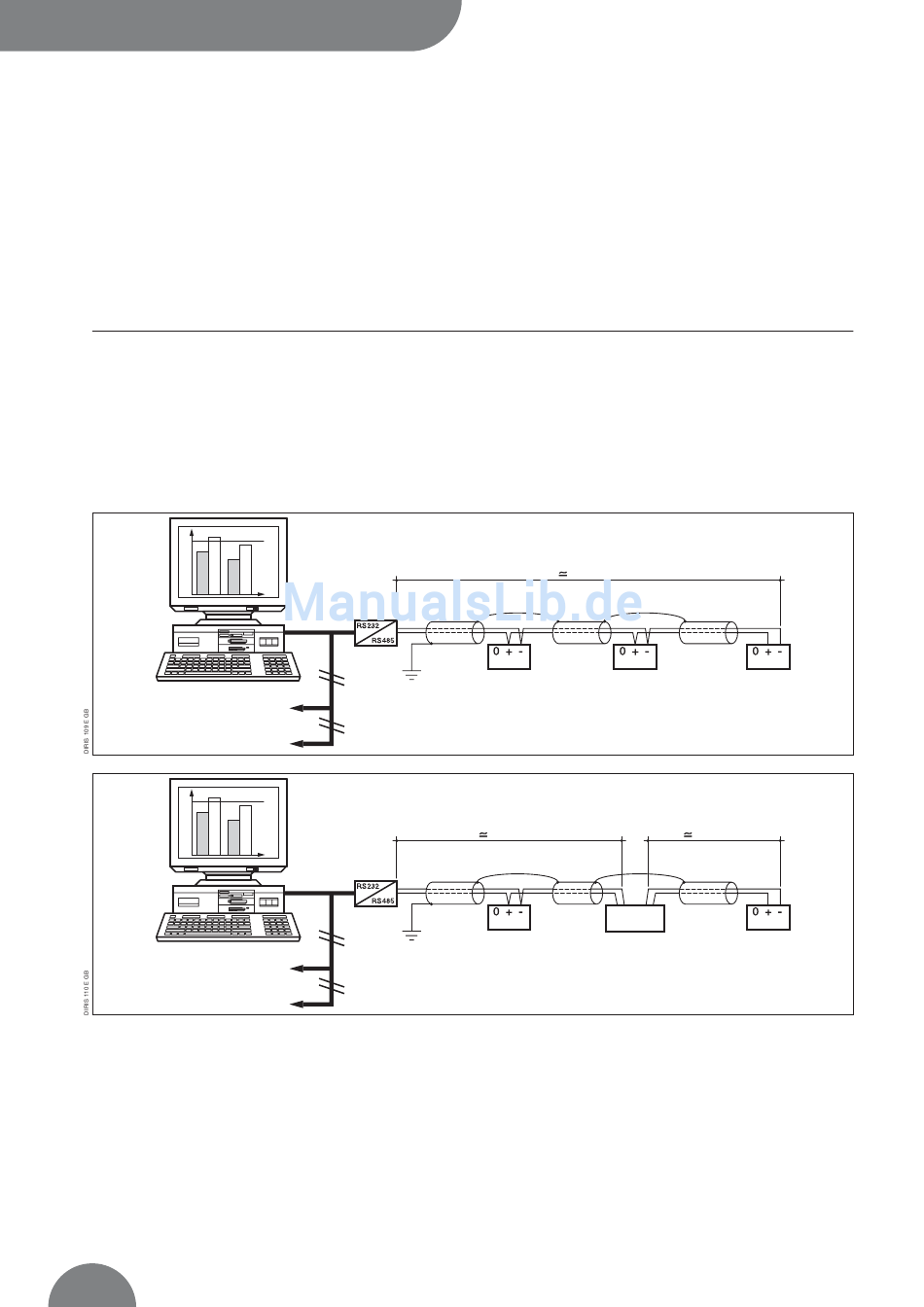

General points

For a standard configuration, an RS 485 link is used to
connect up to 31 DIRIS A20 or COUNTIS Ci with a
PC or a PLC over a distance of 1500 metres, using
JBUS/MODBUS
R = 120
N 1
1200 M
R = 120
N 1
NB :
A 120 ohm resistance (found on the additional module)
must be fixed at both ends of the link.
Other solutions are available (modem, TCP-IP, optical
fibre, etc.). Please contact us
© protocol.
1200 M
N 2
R = 120
1200 M
0+- -+0
repetor
R = 120
RS485
SOCOMEC - Réf. : 876 581 B
N n
N n
