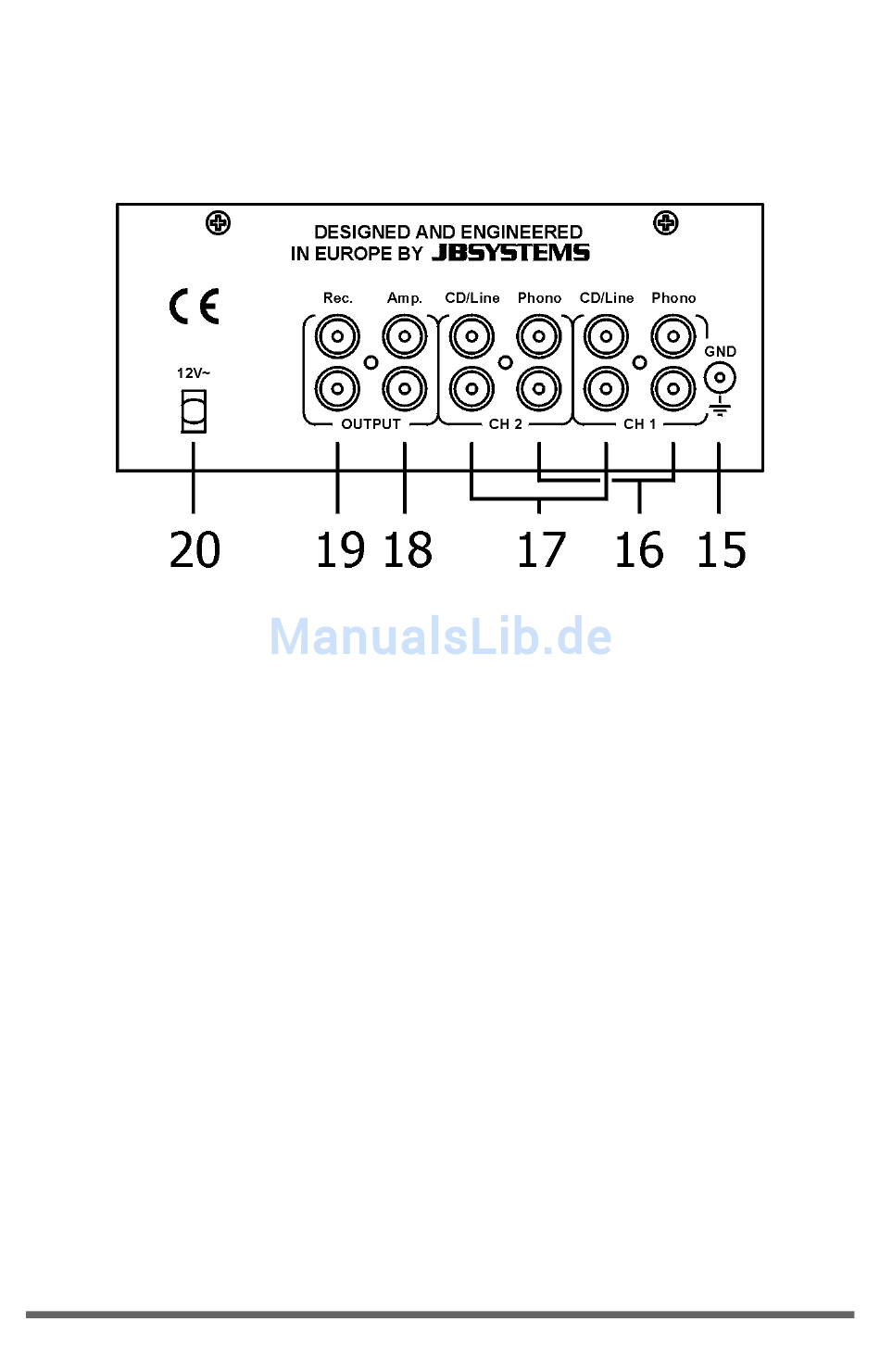

REAR PANEL

15. GND connection for a common ground, e.g. for turntables.
16. RCA input connectors for CH1 and CH2 for connecting PHONO
turntables.
17. RCA input connectors for CH1 and CH2, for connecting units
with Line level, e.g. tuner, CD player, tape, recorder.
18. Master output for connecting an AMP (amplifier).
19. Output connectors REC for connecting a sound recording unit;
the recording level is independent of the setting of the master
control (8).
20. AC IN socket for connecting the power supply.
Compact 4
