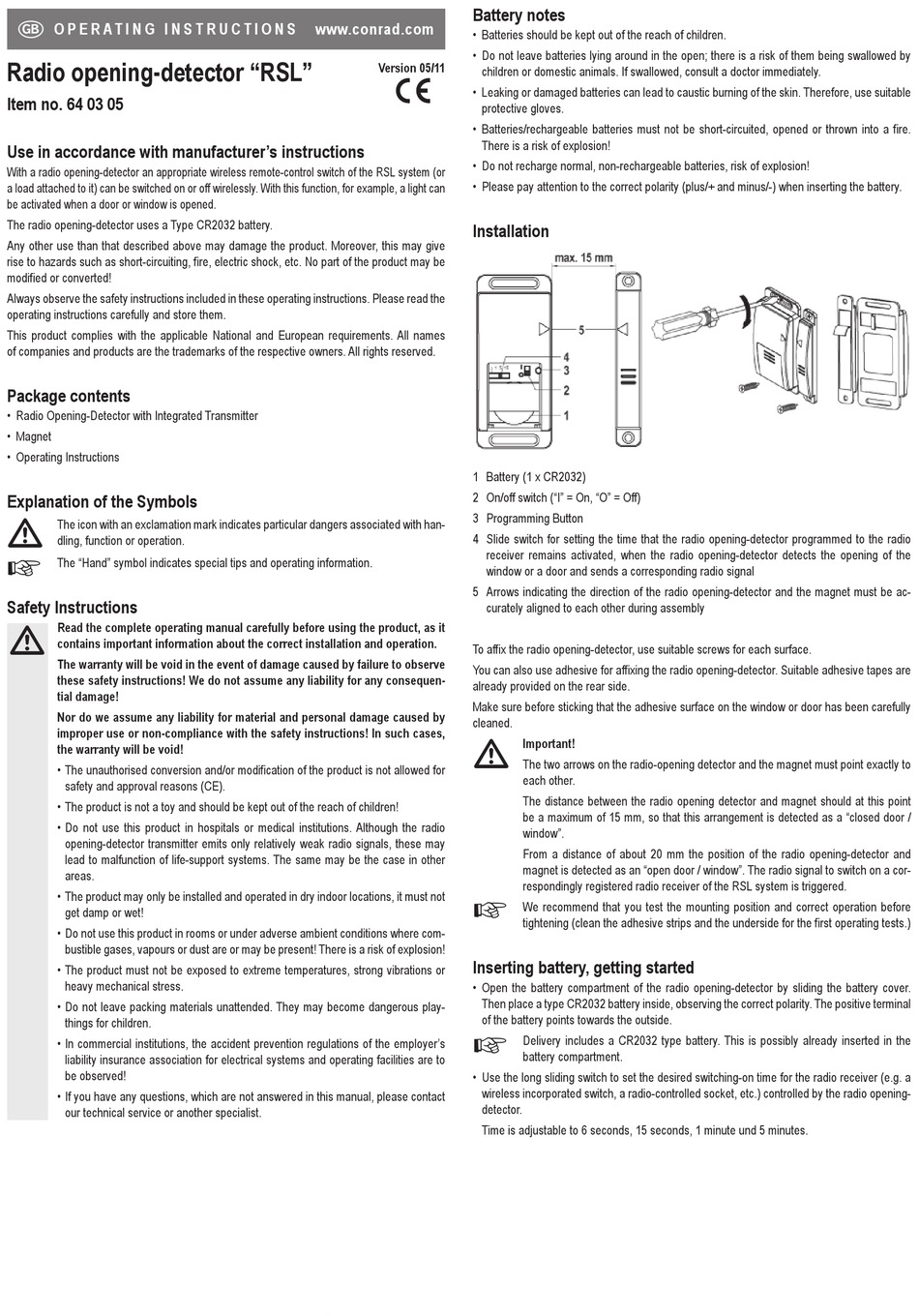

O P E R A T I N G I N S T R U C T I O N S
Radio opening-detector "RSL"
Item no. 64 03 05
Use in accordance with manufacturer's instructions
With a radio opening-detector an appropriate wireless remote-control switch of the RSL system (or
a load attached to it) can be switched on or off wirelessly. With this function, for example, a light can
be activated when a door or window is opened.
The radio opening-detector uses a Type CR2032 battery.
Any other use than that described above may damage the product. Moreover, this may give
rise to hazards such as short-circuiting, fi re, electric shock, etc. No part of the product may be
modifi ed or converted!
Always observe the safety instructions included in these operating instructions. Please read the
operating instructions carefully and store them.
This product complies with the applicable National and European requirements. All names
of companies and products are the trademarks of the respective owners. All rights reserved.
Package contents
• Radio Opening-Detector with Integrated Transmitter
• Magnet
• Operating Instructions
Explanation of the Symbols
The icon with an exclamation mark indicates particular dangers associated with han-
dling, function or operation.
☞
The "Hand" symbol indicates special tips and operating information.
Safety Instructions
Read the complete operating manual carefully before using the product, as it
contains important information about the correct installation and operation.
The warranty will be void in the event of damage caused by failure to observe
these safety instructions! We do not assume any liability for any consequen-
tial damage!
Nor do we assume any liability for material and personal damage caused by
improper use or non-compliance with the safety instructions! In such cases,
the warranty will be void!
• The unauthorised conversion and/or modifi cation of the product is not allowed for
safety and approval reasons (CE).
• The product is not a toy and should be kept out of the reach of children!
• Do not use this product in hospitals or medical institutions. Although the radio
opening-detector transmitter emits only relatively weak radio signals, these may
lead to malfunction of life-support systems. The same may be the case in other
areas.
• The product may only be installed and operated in dry indoor locations, it must not
get damp or wet!
• Do not use this product in rooms or under adverse ambient conditions where com-
bustible gases, vapours or dust are or may be present! There is a risk of explosion!
• The product must not be exposed to extreme temperatures, strong vibrations or
heavy mechanical stress.
• Do not leave packing materials unattended. They may become dangerous play-
things for children.
• In commercial institutions, the accident prevention regulations of the employer's
liability insurance association for electrical systems and operating facilities are to
be observed!
• If you have any questions, which are not answered in this manual, please contact
our technical service or another specialist.
Battery notes
www.conrad.com
• Batteries should be kept out of the reach of children.
• Do not leave batteries lying around in the open; there is a risk of them being swallowed by
Version 05/11
children or domestic animals. If swallowed, consult a doctor immediately.
• Leaking or damaged batteries can lead to caustic burning of the skin. Therefore, use suitable
protective gloves.
• Batteries/rechargeable batteries must not be short-circuited, opened or thrown into a fi re.
There is a risk of explosion!
• Do not recharge normal, non-rechargeable batteries, risk of explosion!
• Please pay attention to the correct polarity (plus/+ and minus/-) when inserting the battery.

Installation

1 Battery (1 x CR2032)
2 On/off switch ("I" = On, "O" = Off)
3 Programming Button
4 Slide switch for setting the time that the radio opening-detector programmed to the radio
receiver remains activated, when the radio opening-detector detects the opening of the
window or a door and sends a corresponding radio signal
5 Arrows indicating the direction of the radio opening-detector and the magnet must be ac-
curately aligned to each other during assembly
To affi x the radio opening-detector, use suitable screws for each surface.
You can also use adhesive for affi xing the radio opening-detector. Suitable adhesive tapes are
already provided on the rear side.
Make sure before sticking that the adhesive surface on the window or door has been carefully
cleaned.
☞
Inserting battery, getting started
• Open the battery compartment of the radio opening-detector by sliding the battery cover.
Then place a type CR2032 battery inside, observing the correct polarity. The positive terminal
of the battery points towards the outside.
☞
• Use the long sliding switch to set the desired switching-on time for the radio receiver (e.g. a
wireless incorporated switch, a radio-controlled socket, etc.) controlled by the radio opening-
detector.
Time is adjustable to 6 seconds, 15 seconds, 1 minute und 5 minutes.
Important!
The two arrows on the radio-opening detector and the magnet must point exactly to
each other.
The distance between the radio opening detector and magnet should at this point
be a maximum of 15 mm, so that this arrangement is detected as a "closed door /
window".
From a distance of about 20 mm the position of the radio opening-detector and
magnet is detected as an "open door / window". The radio signal to switch on a cor-
respondingly registered radio receiver of the RSL system is triggered.
We recommend that you test the mounting position and correct operation before
tightening (clean the adhesive strips and the underside for the fi rst operating tests.)
Delivery includes a CR2032 type battery. This is possibly already inserted in the
battery compartment.
