Jamara 05 7600 Bauanleitung Seite 20

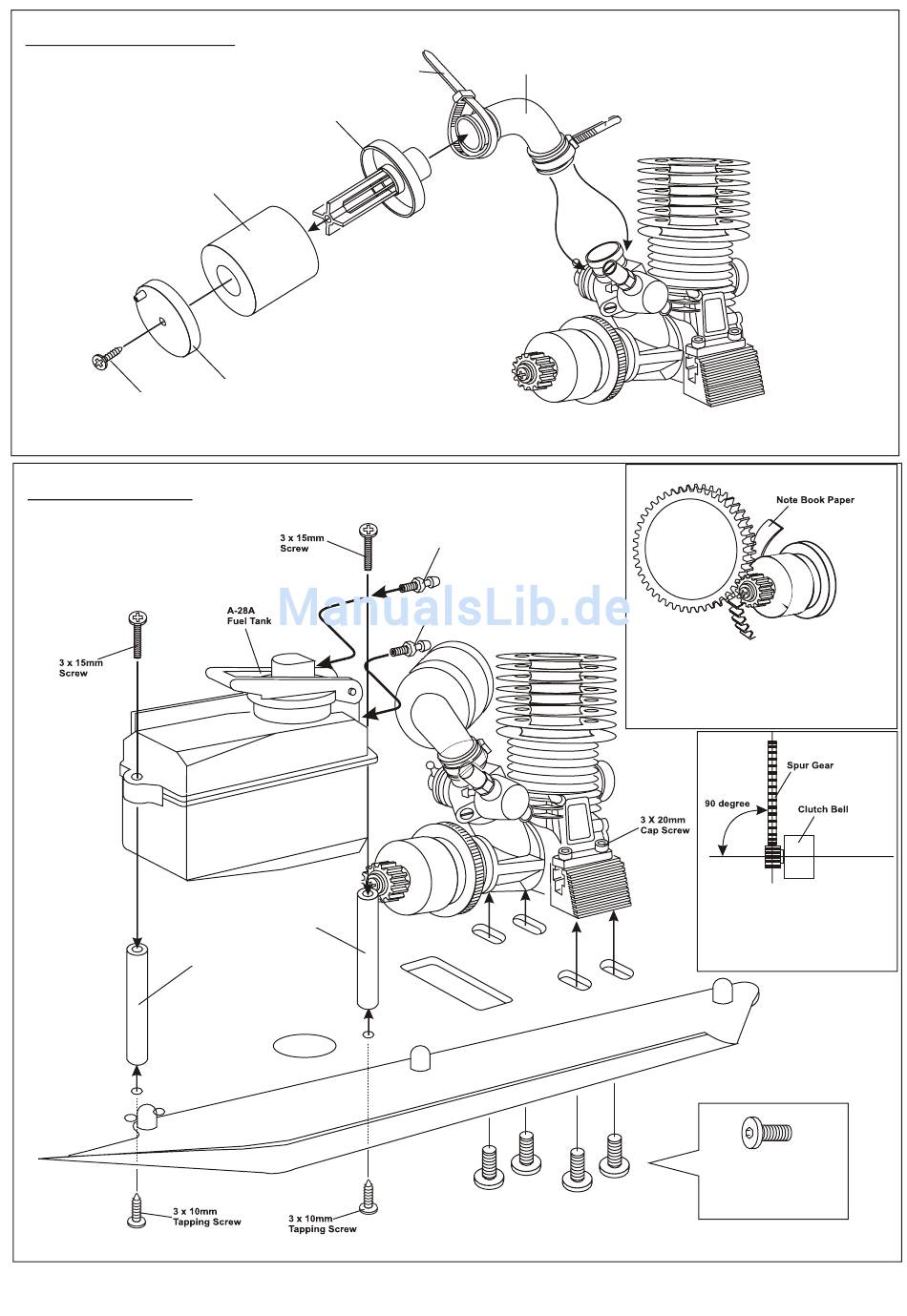

ASSEMBLY OF THE AIR FILTER
Montage Luftfilter
#265A
Filter-Einsatz
Air Filter
Sponge
05 2263
3x10mm
3x10mm
Tapping Screw
INSTALLATION OF THE FUEL TANK
Montage Tank
AND ENGINE ONTO CHASSIS
05 1753
Kabelbinder
A-81
Nylon Straps
( Small )
#265
Air Filter
05 2260
Mount
Benutzen Sie den
Filtereinsatz mit Luftfilteröl
* Apply filter oil to the
sponge before use.
05 2260
#265
Air Filter
Cover
05 1228
05 1753
#194
Air Filter
A-81
05 1194
Connecter
Nylon Straps
( Small )
* Contacts to the
carburetor.
Druck-Nippel
Kraftstoff Nippel
18
17
s. Anlage 1
#195
3mm Hex Screw
for Engine Mount
