Jamara 05 7600 Bauanleitung Seite 16

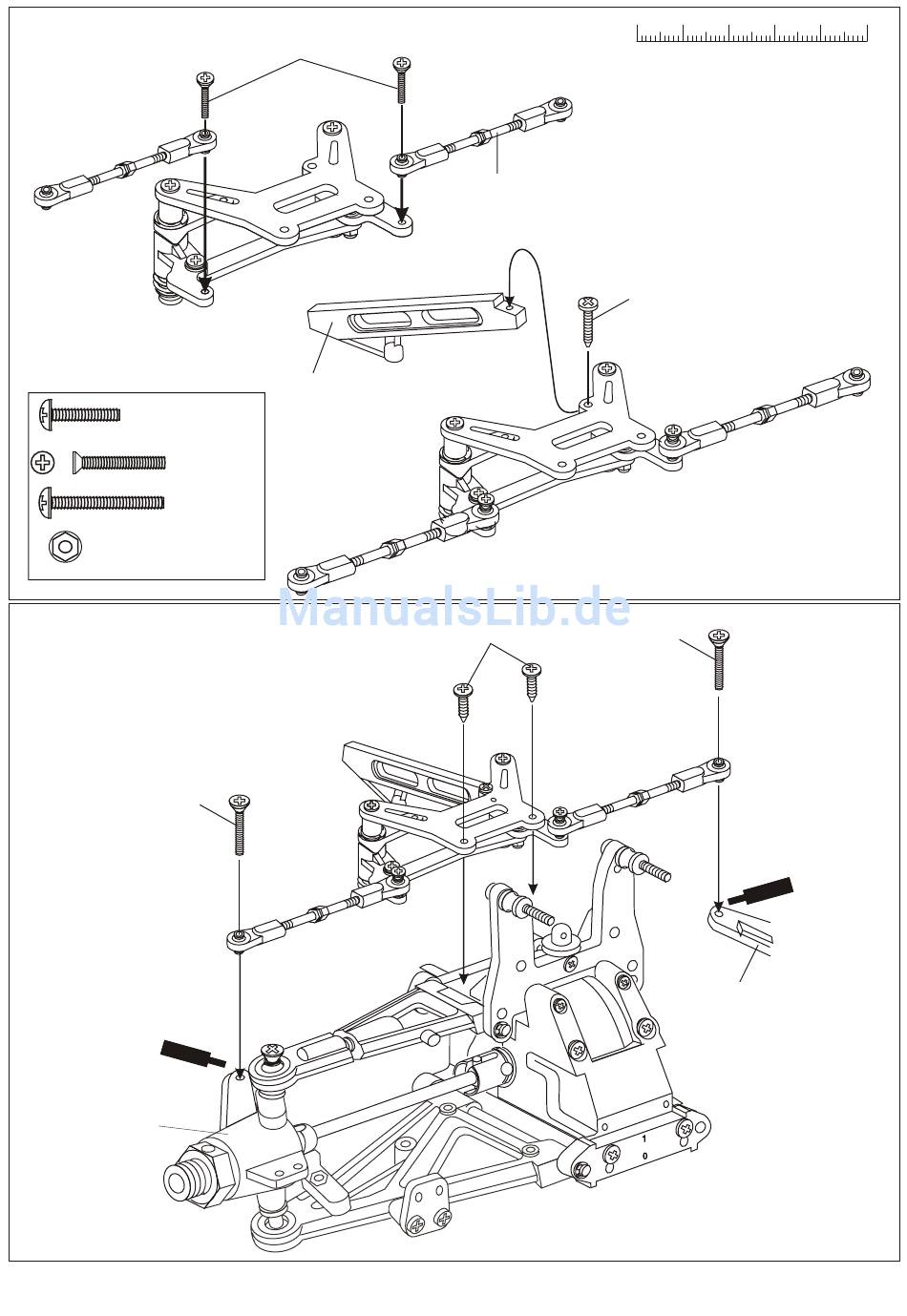

ASSEMBLY OF THE FRONT PLATE AND
STEERING ROD
Spurstange
Front Steering Rod
( Right )
rechts
3 x 15mm Screw
3 x 20mm Flat Head
3 x 25mm Screw
3mm Flange Nut
( Steel )
ASSEMBLY OF THE FRONT PLATE
ONTO THE FRONT GEAR BOX
3 x 15mm
Flat Head
Screw
Achsschenkel links
05 1206
3 x 20mm
Flat Head Screw
C-15
Center Chassis
Brace
( Front )
Screw
Front Steering Rod
Spurstange
( Left )
links
3 x 10mm
Tapping Screw
14
0 10 20 30
3x12mm
Screw
3 x 15mm
Flat Head
Screw
Mit Schraubensicherungs-
lack einschrauben
Achsschenkel
Knuckle arm
(Right-side.) rechts
05 1206
40 50
mm
