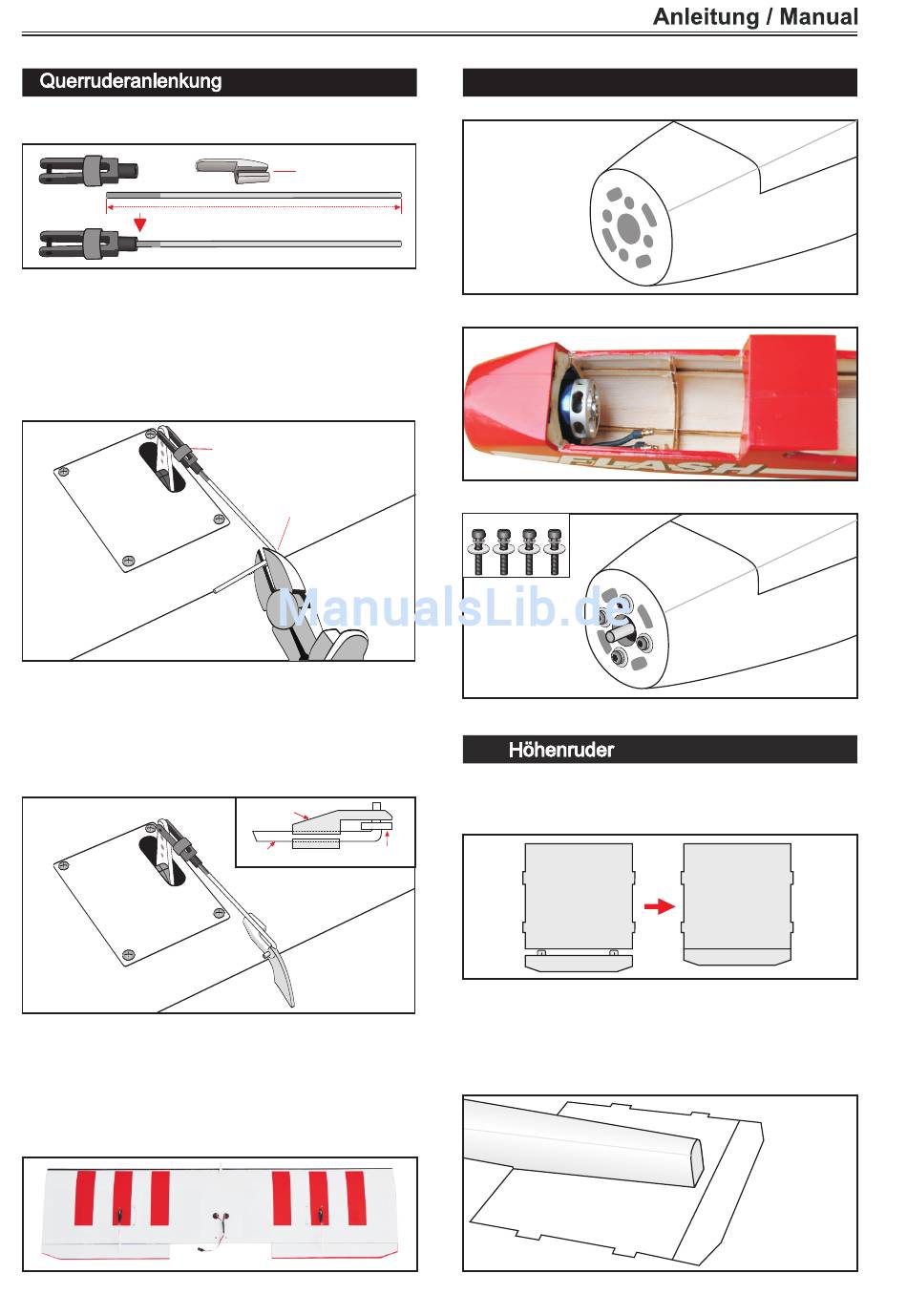

Installing the aileron linkages as pictures below.
Attach the clevis to the outer hole in the servo arm.
Install a silicone tube on the clevis.
Using pliers, carefully make a 90 degree bend down
at the mark made. Cut off the excess wire, leaving
about 6mm beyond the blend.
Insert the 90 degree bend down through the hole in the
control horn. Install one nylon snap keeper over the
wire to secure it to the control horn. Install the control
horn retaining screw and remove the masking tape
from the aileron.
Repeat the procedure to install the second aileron.
After both linkages are completed. connect both of
the aileron servo loads using a Y-harness you have
purchased.
4
/ Aileron Linkages
Snap keeper.
100mm
Silicone Tube
Bend and cut.
Flaslink
Control horn
Pushrod wire
Motoreinbau / Motor Installation
3x15mm
/ Horizontal stabilizer
Elevator install as same as the way of aileron.
Please see pictures below.
Put the horizontal into the fuselage.
horizontal stabilizer in its slot. Make sure the horizontal
stabilizer is square and centered to the fuselage by
taking measurements, but don't glue anything yet.
Check the fit of the
