DT 280 / DT 290
Microphone
Transducer type. . . . . . . . . . . . . . . . . dynamic
Frequency response. . . . . . . . . . . . . . 40 - 12,000 Hz
Polar pattern. . . . . . . . . . . . . . . . . . . hypercardioid
Interference discharging . . . . . . . . . . 30 dB
Output voltage at a distance
of 5 cm . . . . . . . . . . . . . . . . . . . . . . approx. 3 mV
Nominal impedance . . . . . . . . . . . . . approx. 200 Ω
Weight . . . . . . . . . . . . . . . . . . . . . . . approx. 45 g

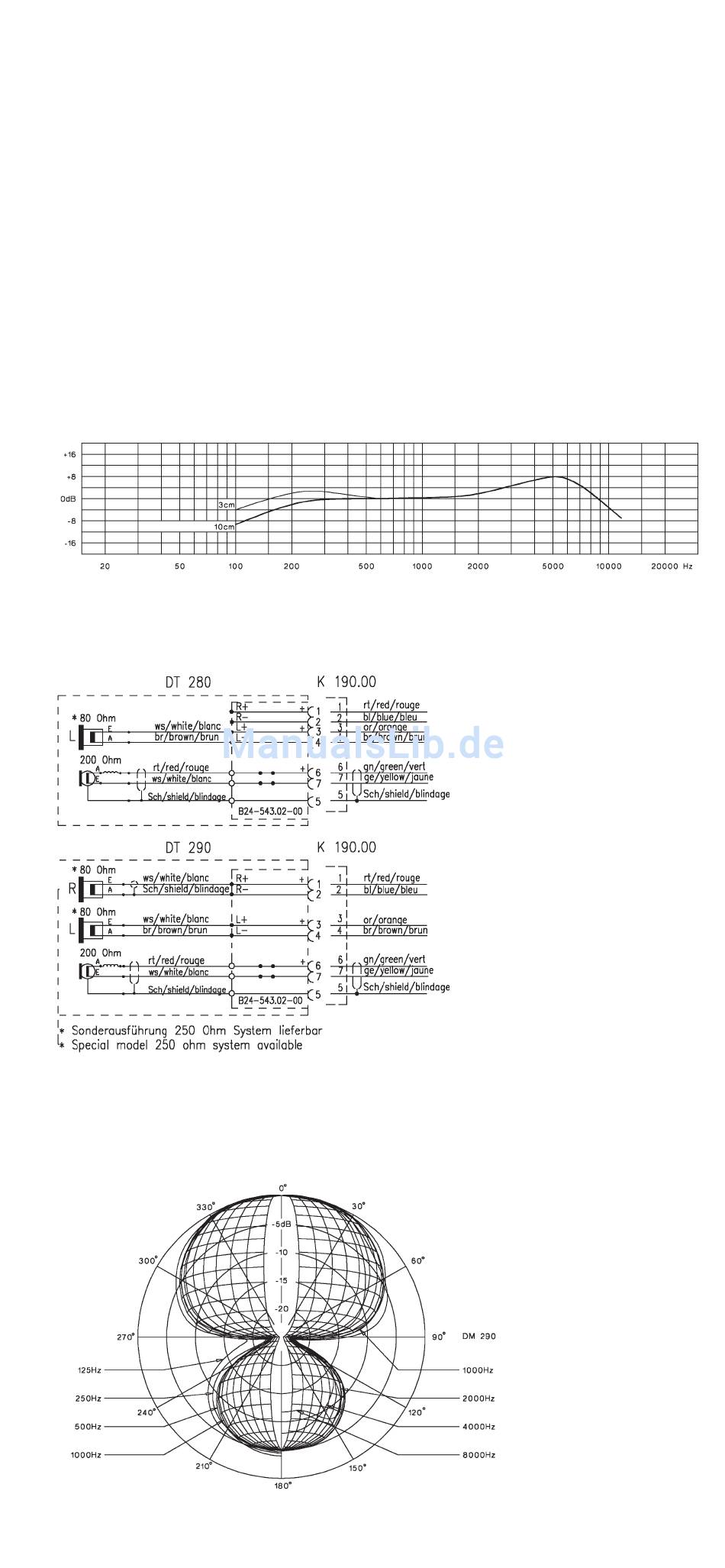

Frequency Response Curve

Frequency response curve ± 2.5 dB 0 dB = 3 mV Output voltage at a distance of 5 cm

Wiring Diagram

Polar Pattern

22
