User manual – Basic seat unit

Symbols and warning signs

Sticker

Specifications and versions

Basic seat system
Seat depth
Seat width
Back height
Lower leg length
Hip angle
Knee angle
Foot angle
Turning range of seat
Seat tilt-in-space (on A chassis Advantage) driving direction -10° to +35°
Seat tilt-in-space (on A chassis Advantage) face-to-face
Size of hip guide (w x h)
Size of footrest (w x d)
Overall dimensions
(on A chassis Advantage) (l x w x h)
Folded dimensions
(on A chassis Advantage) (l x w x h)
Weight (seat)
Max. user weight (seat)
The Basic seat unit is available in the following versions:
Item No.
6226
6426
16
Designation
Basic seat unit size 1
Basic seat unit size 2
Meaning

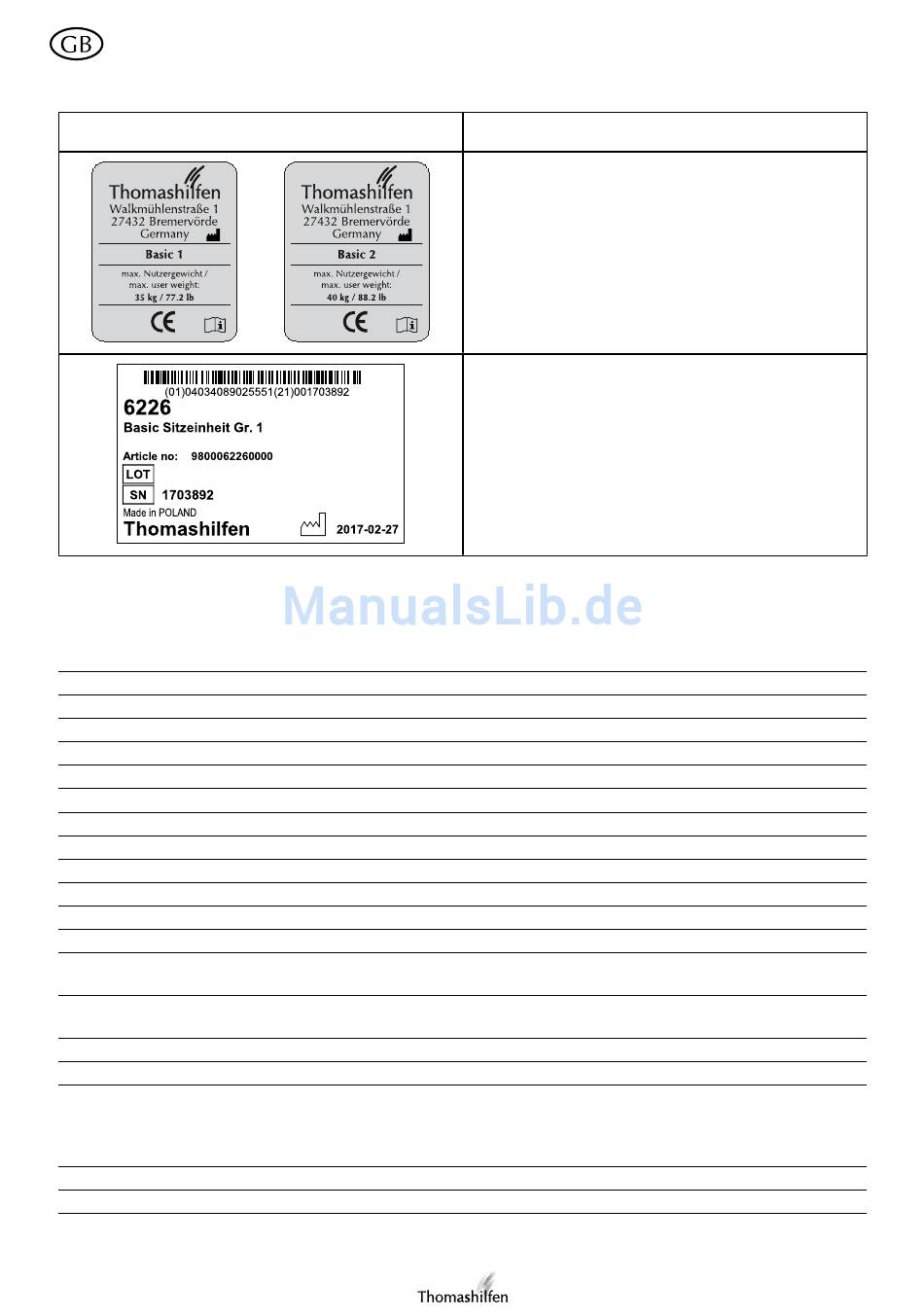

Specification labels / loading capacity stickers
The specification label of the seat unit is attached at the
bottom of the seat.
The specification label includes the name of the manu-
facturer, including the address; the type designation, the
maximum loading capacity and the CE label.
Bar code label
The bar code label is attached under the seat of the seat
unit.
The bar code label includes the item number, designati-
on, serial number and production date of the product.
Basic size 1
190 - 300 mm / 7.5 - 11.8"
190 - 310 mm / 7.5 - 12.2"
415 - 680 mm / 16.3 - 26.8" 550 - 740 mm / 21.7 - 29.1"
175 - 290 mm / 6.9 - 11.4"
90° to 130°
90° to 180°
78° to 100°
180°
0° to +35°
230 x 120 mm / 9.1 x 4.7"
280 x 180 mm / 11 x 7.1"
995 x 595 x 1140 mm
39.2 x 23.4 x 44.9"
800 x 595 x 670 mm
31.5 x 23.4 x 26.4"
8.6 kg / 19 lb
35 kg / 77.2 lb
Equipment
Seat unit including cushioning and footrest
Seat unit including cushioning and footrest
Basic size 2
270 - 380 mm / 10.6 - 15"
250 - 370 mm / 9.8 - 14.6"
210 - 370 mm / 8.3 - 14.6"
90° to 130°
90° to 180°
78° to 100°
180°
-10° to +35°
0° to +35°
300 x 150 mm / 11.8 x 5.9"
320 x 210 mm / 12.6 x 8.3"
1070 x 690 x 1200 mm
42.1 x 27.2 x 47.2"
800 x 690 x 630 mm
31.5 x 27.2 x 24.8"
10.2 kg / 22.5 lb
40 kg / 88.2 lb
