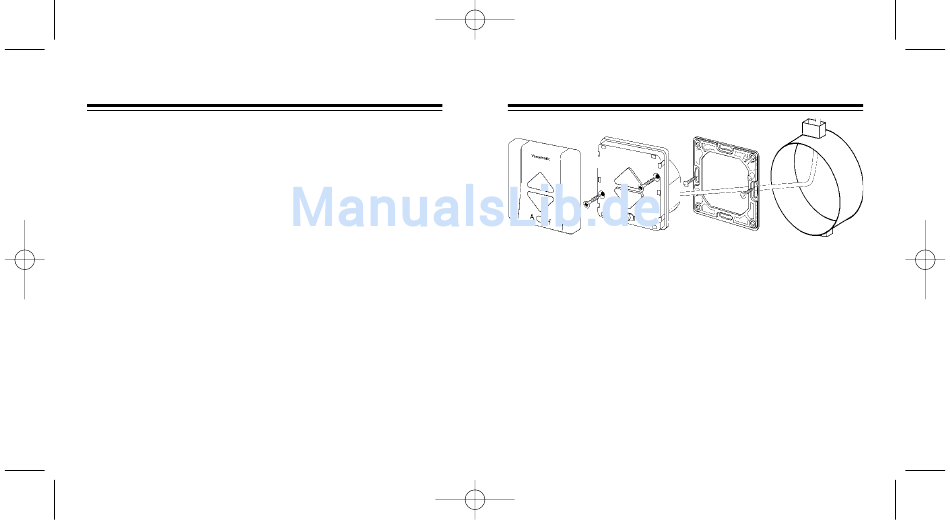

Installation and putting into operation:
1. Carefully pull to remove the cover cap of the roller shutter control
Vestamatic DZ-Plus "R".
2. Loosen the screws and separate the supporting frame from hous-
ing.
3. Mount the supporting frame.
There are several holes available for different switch boxes as well
as for the wall mounting.
A special flush-type box is available for the wall mounting.
4. Perform the wiring according to the wiring diagram.
Attention: Currently valid VDE standards must be observed,
when connecting the device, in particular DIN VDE
0100/0700 as well as the currently valid regulations
of your local power company and accident preven-
tion regulations.
5. Push the basic housing carefully into the supporting frame (make
sure not to pinch any cables) and tightly fasten the screws.
Note: Parallel triggering of several drives can only be implemented
with isolating relays or cluster controllers.
15:55 Seite 19

Notes for Professional Electricians

- 19 -

Installation Instructions

The delivered supporting frame must always be mounted!
The following suitable covering frames of the brand Jung "TopLine",
alpine white are available:
Combination frame one-fold,
Combination frame two-fold,
Combination frame three-fold,
Combination frame four-fold,
Combination frame five-fold,
For flush-type mounting
please use our flush-type box,
For control via two drives, we recommend our isolating relays:
Isolating relays TR2,
Isolating relays TR2A,
G G
Article-No. 01400101
Article-No. 01400102
Article-No. 01400103
Article-No. 01400104
Article-No. 01400105
Article-No. 01030750
Article-No. 010540
Article-No. 010541.
