ENG

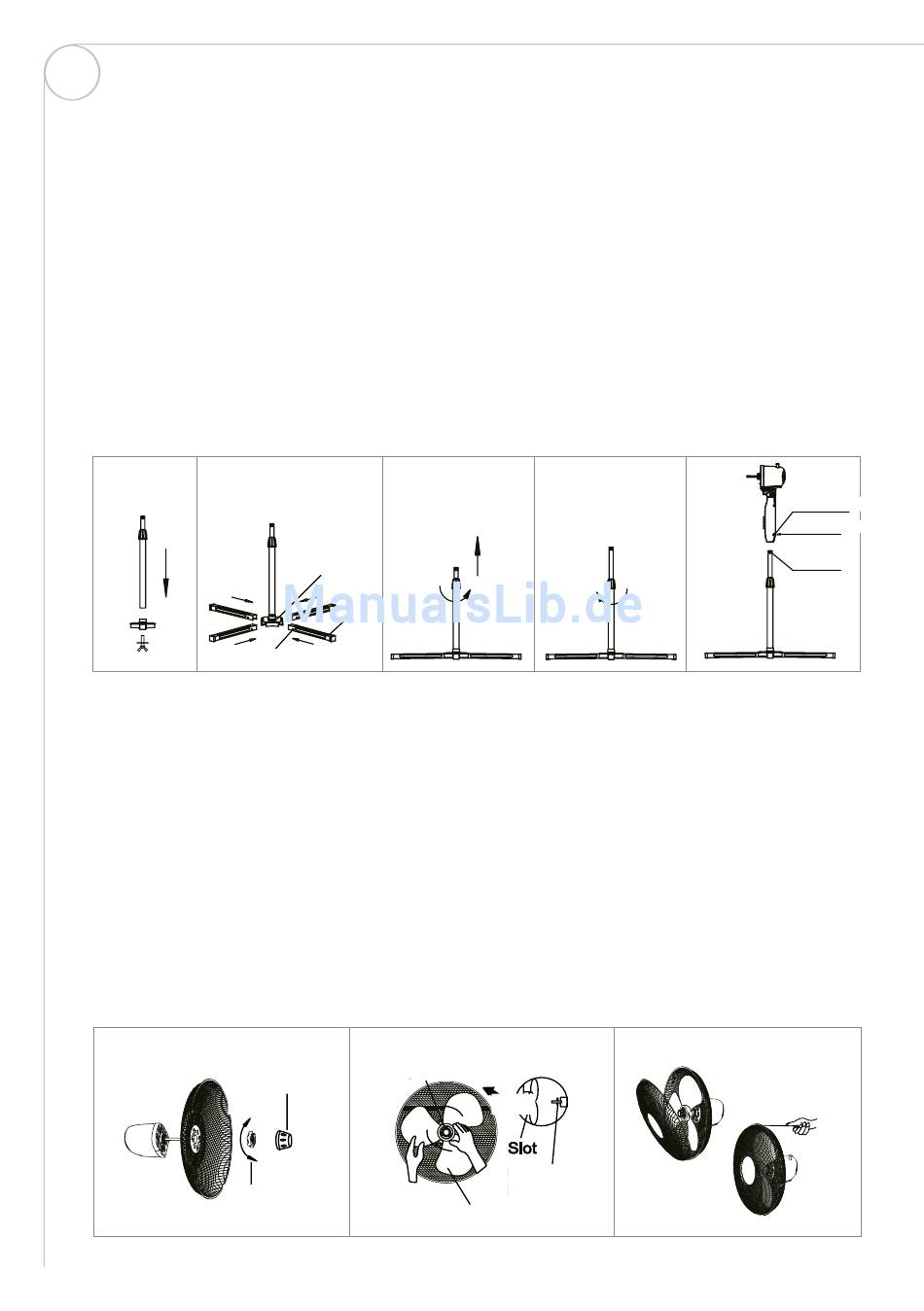

CROSS STAND AND COLUMN UNT
• Loosen the butterfly screw and washer from the standing pole. Connect the standing
pole with the crossbase connector and fasten the butterfly screw with the washer (fig.1).
• Attach 4 stands and slide into the crossbase connector. Ensure the stands are well
fixed into the connector (fig.2).
• Loosen the height adjustment ring, lift the internal pole to the max height (fig.3).
• You may adjust the extension tube to the desire height and then fasten the height
adjustment ring (fig.4).
• The height adjustment ring must be fully tightened before assembling the motor housing
to the extension tube. Unscrew the thumbscrew, then fit the Motor housing to the
extension tube and tighten the thumbscrew in alignment with the groove on the extension
tube. The thumbscrew must be fully tightened before the fan is operated (fig.5).
1
2
GRILL AND FAN BLADE ASSEMBLY
• Unscrew the spinner clockwise (or take the spinner out from the bag) and the plastic
nut counterclockwise to remove both of them. Fix the rear grill to the motor then
tighten the plastic nut again (fig. 6).
• Insert the blade into shaft, and make sure the rotor shaft pin is fitted into groove of the
blade. Turn the spinner counterclockwise to tighten the blade (fig. 7).
• Fasten the front grill and the rear grill by the grill clip and then tighten the fan grill
locking screw and nut (fig. 8).
6
4
3
Crossbase
Crossbase
connector
connector
Stand
Stand
Support hole
Support hole
7
Spinner
Spinner
Tighten
Tighten
Loosen
Loosen
Plastic nut
4
Tighten
Tighten
Loosen
Loosen
8
Tighten
Tighten
Slot
Retaining
spin
Blade
5
Annular groove
Annular groove
Thumb screw
Thumb screw
Mounting hole
Mounting hole
