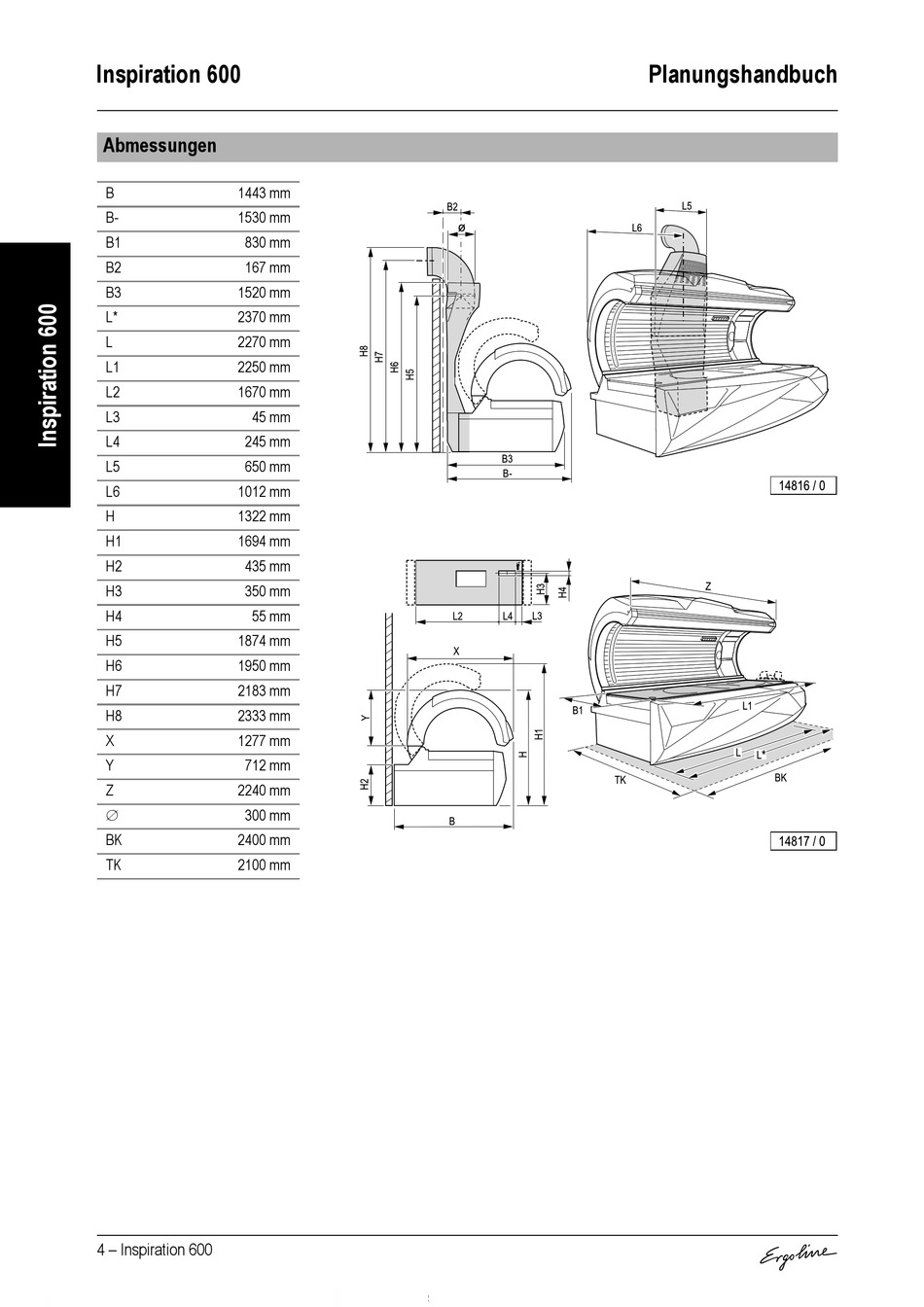

Abmessungen - Ergoline Inspiration 600 Planungshandbuch

Inspiration 600

Abmessungen

B 1443 mm
B- 1530 mm
B1 830 mm
B2 167 mm
B3 1520 mm
L* 2370 mm
L 2270 mm
L1 2250 mm
L2 1670 mm
L3 45 mm
L4 245 mm
L5 650 mm
L6 1012 mm
H 1322 mm
H1 1694 mm
H2 435 mm
H3 350 mm
H4 55 mm
H5 1874 mm
H6 1950 mm
H7 2183 mm
H8 2333 mm
X 1277 mm
Y 712 mm
Z 2240 mm

300 mm
BK 2400 mm
TK 2100 mm
