24. The appliance must be disconnected from the supply when removing the battery.
25. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance

PARTS LIST

1. Sweeper Power Head
2. On / Off Switch
3. Speed control
4. Speed indicator light
5. Charging Light Indicator
6. Rotating Brush
7. Transparent Brush Cover
8. Edging Tool
9. Gear Box
10. Dust Cup (Container)
11. Charging Jack
12. Lower Handle
13. extension
14. Metal telescopic extension Handles
15. Upper Handle
16. Charging Adapter
NOTE: Cordless Sweeper is shipped with the batteries uncharged. Charging of
the unit for 16-20 hours prior to fi rst use is required.
ASSEMBLING YOUR CORDLESS SWEEPER
Before you start:
Your Cordless Sweeper will require very little assembly. You should remove it from

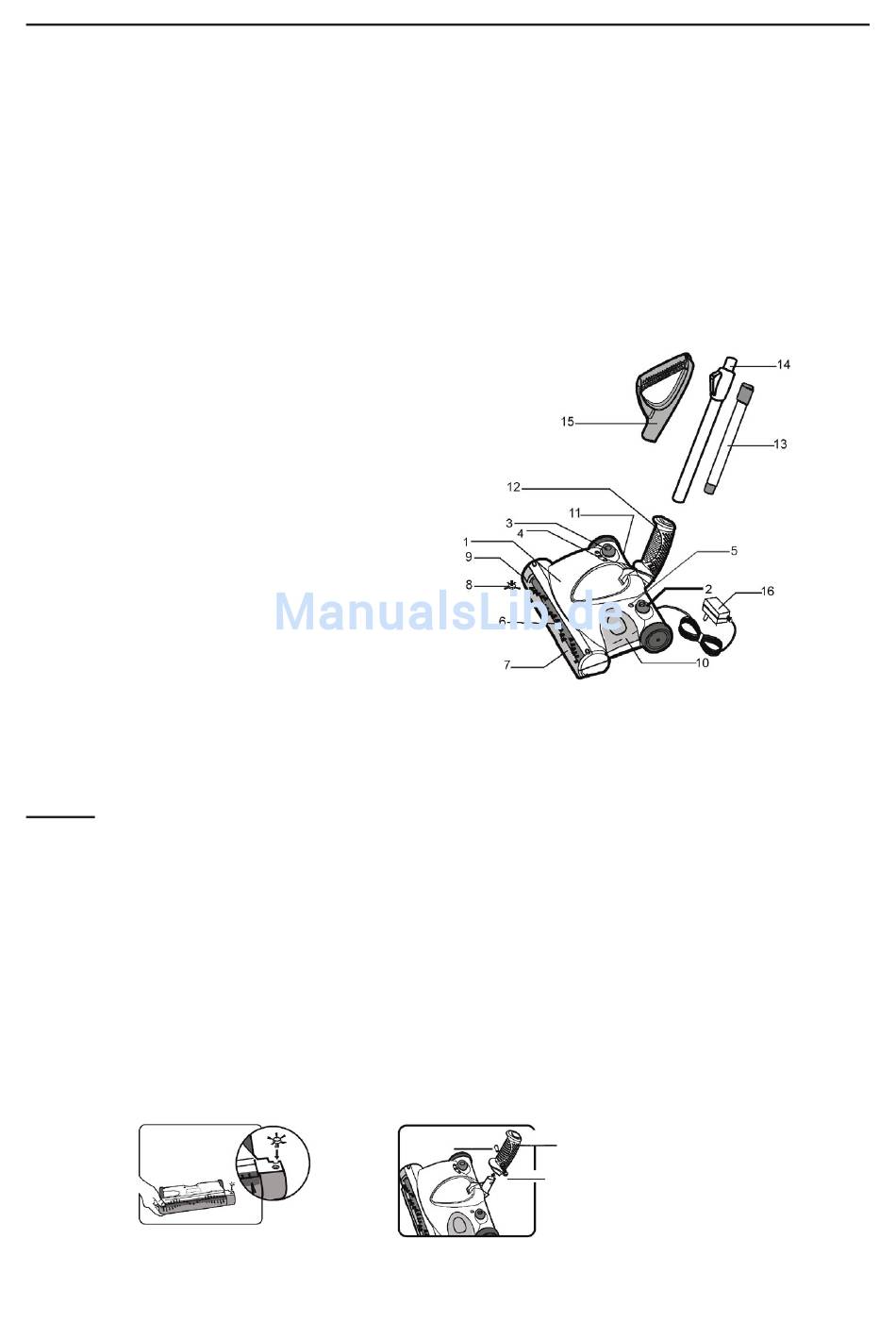

the carton and familiarize yourself with all the components listed per the exploded
view drawing . This will help you in the assembly and operation of your cordless
sweeper.
Note: The charging adapter and the lower handle are shipped inside the dust cup.
1. Insert the Edging Tool into the "square" hole under the bottom of the sweeper power
28
