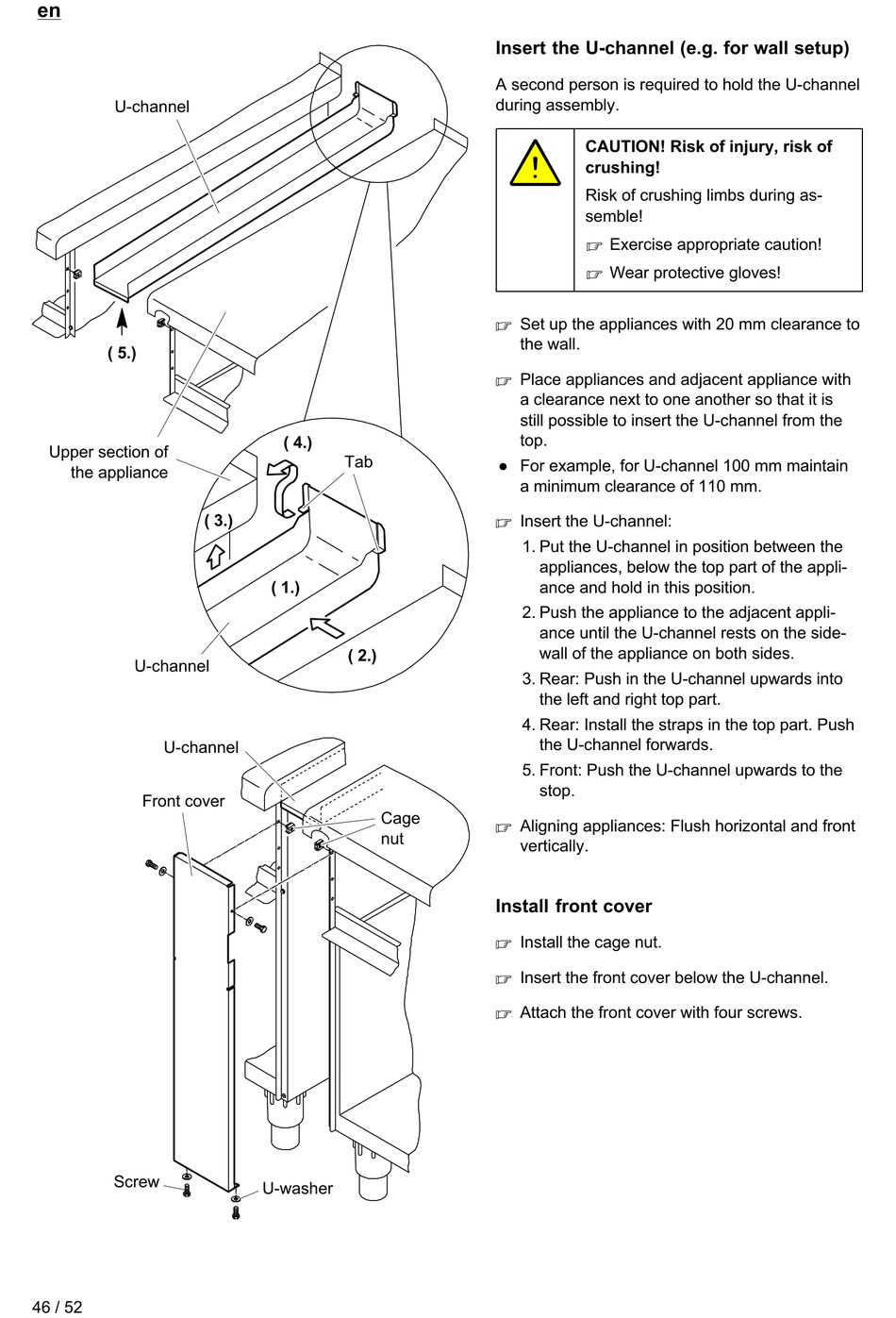

Insert the U-channel (e.g. for wall setup)
A second person is required to hold the U-channel
during assembly.
. Set up the appliances with 20 mm clearance to
the wall.
. Place appliances and adjacent appliance with
a clearance next to one another so that it is
still possible to insert the U-channel from the
top.
● For example, for U-channel 100 mm maintain
a minimum clearance of 110 mm.
. Insert the U-channel:
1. Put the U-channel in position between the
appliances, below the top part of the appli­
ance and hold in this position.
2. Push the appliance to the adjacent appli­
ance until the U-channel rests on the side­
wall of the appliance on both sides.
3. Rear: Push in the U-channel upwards into
the left and right top part.
4. Rear: Install the straps in the top part. Push
the U-channel forwards.
5. Front: Push the U-channel upwards to the
stop.
Cage
. Aligning appliances: Flush horizontal and front
nut
vertically.
Install front cover
. Install the cage nut.
. Insert the front cover below the U-channel.
. Attach the front cover with four screws.
CAUTION! Risk of injury, risk of
crushing!
Risk of crushing limbs during as­
semble!
. Exercise appropriate caution!
. Wear protective gloves!
