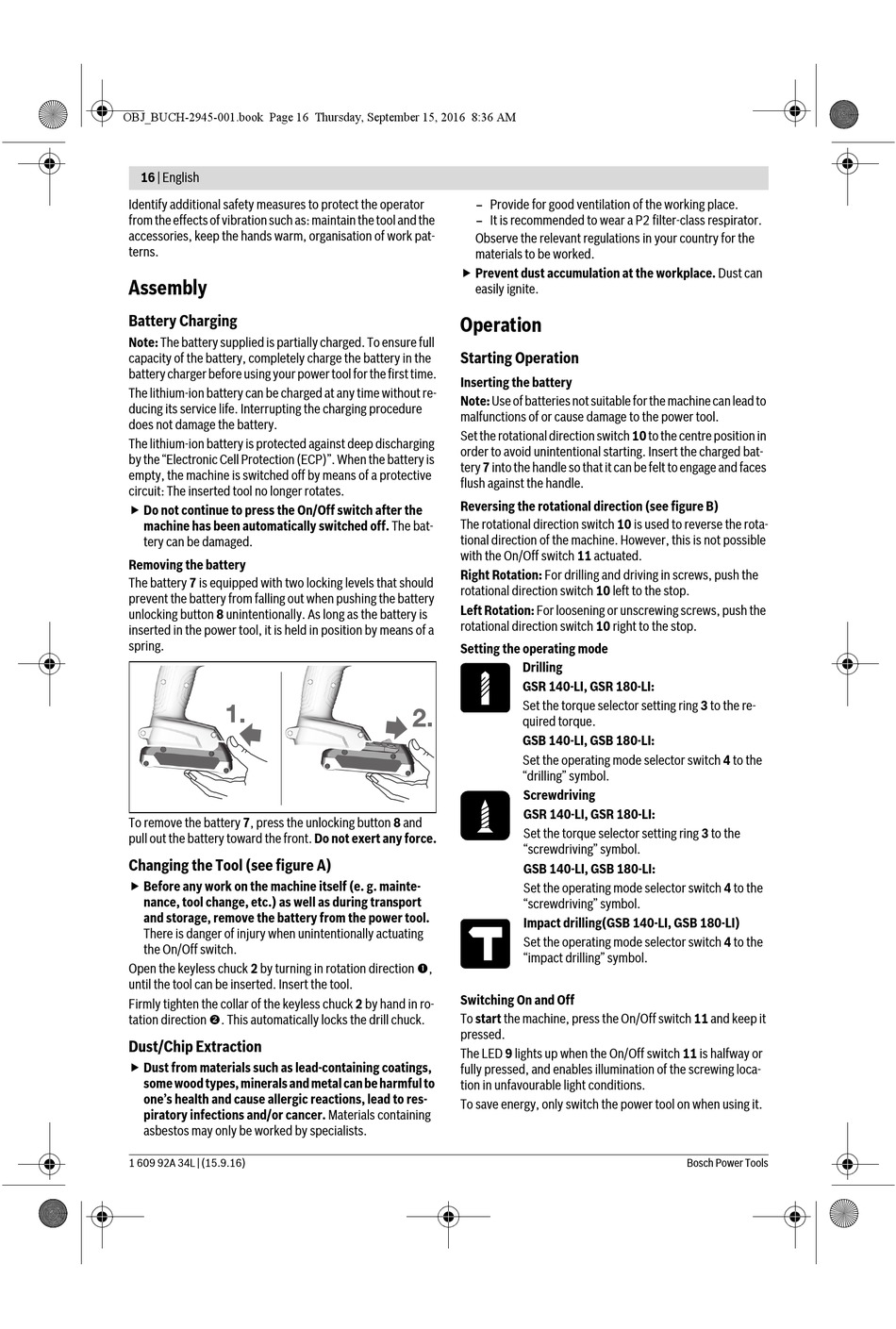

Identify additional safety measures to protect the operator
from the effects of vibration such as: maintain the tool and the
accessories, keep the hands warm, organisation of work pat-
terns.
Assembly

Battery Charging

Note: The battery supplied is partially charged. To ensure full
capacity of the battery, completely charge the battery in the
battery charger before using your power tool for the first time.
The lithium-ion battery can be charged at any time without re-
ducing its service life. Interrupting the charging procedure
does not damage the battery.
The lithium-ion battery is protected against deep discharging
by the "Electronic Cell Protection (ECP)". When the battery is
empty, the machine is switched off by means of a protective
circuit: The inserted tool no longer rotates.
 Do not continue to press the On/Off switch after the
machine has been automatically switched off. The bat-
tery can be damaged.
Removing the battery
The battery 7 is equipped with two locking levels that should
prevent the battery from falling out when pushing the battery
unlocking button 8 unintentionally. As long as the battery is
inserted in the power tool, it is held in position by means of a
spring.
To remove the battery 7, press the unlocking button 8 and
pull out the battery toward the front. Do not exert any force.
Changing the Tool (see figure A)
 Before any work on the machine itself (e. g. mainte-
nance, tool change, etc.) as well as during transport
and storage, remove the battery from the power tool.
There is danger of injury when unintentionally actuating
the On/Off switch.
Open the keyless chuck 2 by turning in rotation direction ,
until the tool can be inserted. Insert the tool.
Firmly tighten the collar of the keyless chuck 2 by hand in ro-
tation direction . This automatically locks the drill chuck.

Dust/Chip Extraction

 Dust from materials such as lead-containing coatings,
some wood types, minerals and metal can be harmful to
one's health and cause allergic reactions, lead to res-
piratory infections and/or cancer. Materials containing
asbestos may only be worked by specialists.
1 609 92A 34L | (15.9.16)
– Provide for good ventilation of the working place.
– It is recommended to wear a P2 filter-class respirator.
Observe the relevant regulations in your country for the
materials to be worked.
 Prevent dust accumulation at the workplace. Dust can
easily ignite.
Operation

Starting Operation

Inserting the battery
Note: Use of batteries not suitable for the machine can lead to
malfunctions of or cause damage to the power tool.
Set the rotational direction switch 10 to the centre position in
order to avoid unintentional starting. Insert the charged bat-
tery 7 into the handle so that it can be felt to engage and faces
flush against the handle.
Reversing the rotational direction (see figure B)
The rotational direction switch 10 is used to reverse the rota-
tional direction of the machine. However, this is not possible
with the On/Off switch 11 actuated.
Right Rotation: For drilling and driving in screws, push the
rotational direction switch 10 left to the stop.
Left Rotation: For loosening or unscrewing screws, push the
rotational direction switch 10 right to the stop.
Setting the operating mode
Drilling
GSR 140-LI, GSR 180-LI:
Set the torque selector setting ring 3 to the re-
quired torque.
GSB 140-LI, GSB 180-LI:
Set the operating mode selector switch 4 to the
"drilling" symbol.
Screwdriving
GSR 140-LI, GSR 180-LI:
Set the torque selector setting ring 3 to the
"screwdriving" symbol.
GSB 140-LI, GSB 180-LI:
Set the operating mode selector switch 4 to the
"screwdriving" symbol.
Impact drilling(GSB 140-LI, GSB 180-LI)
Set the operating mode selector switch 4 to the
"impact drilling" symbol.
Switching On and Off
To start the machine, press the On/Off switch 11 and keep it
pressed.
The LED 9 lights up when the On/Off switch 11 is halfway or
fully pressed, and enables illumination of the screwing loca-
tion in unfavourable light conditions.
To save energy, only switch the power tool on when using it.
