Contents
I
1
1.1
Performance Controller Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2
Sound Generator Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
3
II
4
5
6
7
8
8.1
Bank Select (00H,20H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.2
Modulation (01H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.3
Portamento Time (05H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.4
Data Entry (06H,26H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.5
Volume (07H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.6
Pan (0AH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.7
Expression (0BH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.8
Hold1 (40H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.9
Portamento On/Off (41H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.10
Sostenuto (42H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

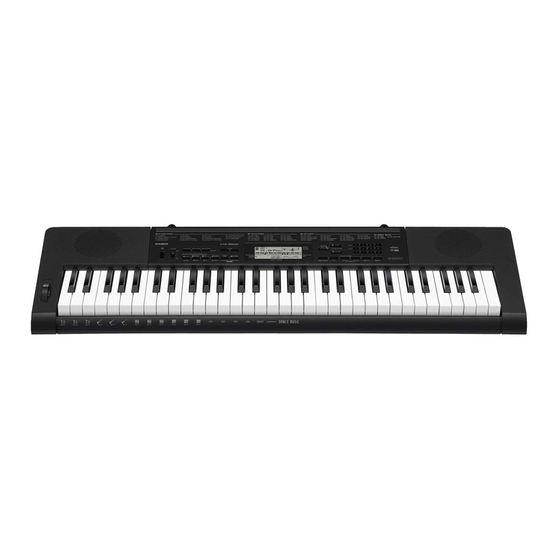

CTK-3500
MIDI Implementation
CASIO COMPUTER CO., LTD.
1
4
4
4
4
5
5
6
6
6
6
6
6
7
7
7
7
8
8
8
8
9
9
Werbung
Inhaltsverzeichnis
Verwandte Anleitungen für Casio CTK-3500
Inhaltszusammenfassung für Casio CTK-3500
-
Seite 1: Inhaltsverzeichnis
CTK-3500 MIDI Implementation CASIO COMPUTER CO., LTD. Contents MIDI Message Overview Product Configuration as a MIDI Device Performance Controller Section ....... . . - Seite 2 8.11 Soft (43H) ..........8.12 Filter Resonance (47H) .
- Seite 3 18.3 Pan Setting Value Table ........17 18.4 Fine Tune Setting Value Table .
-
Seite 4: Midi Message Overview
Part I MIDI Message Overview Product Configuration as a MIDI Device As a MIDI device, this Instrument consists of the Performance Controller Section and Sound Generator Section described below. Each of these sections can send and receive specific MIDI Messages in accordance with its function. -
Seite 5: Timbre Type Specific Operation
Number Name Channel Assigned Function Keyboard Guide Sound Guide Voice Metronome Auto Accompaniment (Percussion) Auto Accompaniment (Drum) Auto Accompaniment (Bass) Auto Accompaniment (Chord 1) Auto Accompaniment (Chord 2) Auto Accompaniment (Chord 3) Auto Accompaniment (Chord 4) Auto Accompaniment (Chord 5) MIDI/Auto Performance Functions MIDI/Auto Performance Functions MIDI/Auto Performance Functions... -
Seite 6: Channel Message
Part II Channel Message Receive Channel The channel number of the channel message received by each part is shown in the table under “1.2.2 Instrument Part Block”. Send Channel Basically, the MIDI channel of the channel message sent when the Instrument is played coincides with the MIDI channel of the part being played. -
Seite 7: Bank Select (00H,20H)
Send Sent when the Instrument’s pedal is operated or when Instrument settings are changed. Receive Receipt changes the pedal and other performance conditions, and Instrument settings. Bank Select (00H,20H) Message Format: BnH 00H mmH (MSB) BnH 20H llH (LSB) MIDI Channel Number MSB Value(Note1) LSB Value(Send:00H, Receive:Ignored) Note1... -
Seite 8: Volume (07H)
Send Sent when there is a change to the parameter assigned to RPN. This Instrument does not have a parameter that corresponds to NRPN. Receive Receipt changes the parameter assigned to RPN. This Instrument does not have a parameter that corresponds to NRPN. Volume (07H) Message Format: BnH 07H vvH... -
Seite 9: Portamento On/Off (41H)
Receive Receipt performs an operation equivalent to a sustain pedal operation. Timbre Type Specific Operation This operation differs in accordance with the Timbre Type (see “About the Timbre Type” in “10 Program Change”) setting. • Timbre Type: Melody Sustain off/on control is performed in accordance with the value of the received message. •... -
Seite 10: Filter Resonance (47H)
8.12 Filter Resonance (47H) Message Format: BnH 47H vvH MIDI Channel Number Value (Note1) Note1 For information about the relationship between setting values and send/receive values, see the “18.2 –64 - 0 - +63 Setting Value Table” in “IV Setting Values and Send/Receive Values” of this document. Receive Receipt changes the Resonance strength. -
Seite 11: Portamento Control (54H)
8.16 Portamento Control (54H) Message Format: BnH 54H vvH MIDI Channel Number Source Key Number Receive Receipt of this message first stores the Source Note Number for the next note.When the next Note On is received,the portamento effect is applied to the note using this Source Note Number as the pitch start point and the Note On event key number as the end point. -
Seite 12: Coarse Tune
8.18.2 Fine Tune Message Format: BnH 64H 01H BnH 65H 00H BnH 06H mmH BnH 26H llH MIDI Channel Number MSB Value LSB Value Receive Receipt changes the fine tune of the corresponding part. 8.18.3 Coarse Tune Message Format: BnH 64H 02H BnH 65H 00H BnH 06H mmH BnH 26H llH... -
Seite 13: Reset All Controllers (79H)
Reset All Controllers (79H) Message Format: BnH 79H 00H MIDI Channel Number Send Sent when MIDI send related settings are changed. Receive Receipt initializes each performance controller. All Notes Off (7BH) Message Format: BnH 7BH 00H MIDI Channel Number Send Sent when MIDI send related settings are changed, or when auto play is stopped, etc. Receive Receipt releases (key release) all voices that are sounding. -
Seite 14: Program Change
Program Change Message Format: CnH ppH MIDI Channel Number Program Number (Note1) Note1 For details about the relationship between the program number and the tone, see the Tone List that comes with the Instrument. Send Sent when a tone is selected. Receive Receipt changes the tone of the corresponding part. -
Seite 15: System Message
Part III System Message Timing Clock Message Format: Send Sent when auto accompaniment is used. Start Message Format: Send Sent when auto accompaniment is used. Stop Message Format: Send Sent when auto accompaniment is used. Active Sensing Message Format: Receive Once this message is received, the Active Sensing mode is entered. If no MIDI message is received for a specified amount of time, voices being sounded by this Instrument’s sound source are released, the controller is reset, and the Active Sensing mode is exited. -
Seite 16: Reverb Type
Receive Receipt changes the Master Volume. 17.1.2 Master Fine Tuning Message Format: F0H 7FH 7FH 04H 03H llH mmH F7H LSB Value(Note1) MSB Value(Note1) Note1 For information about the relationship between setting values and send/receive values, see “18.4 Fine Tune Setting Value Table”... -
Seite 17: Setting Values And Send/ Receive Values
Part IV Setting Values and Send/ Receive Values Setting Value Tables 18.1 Off/On Setting Value Table Transmit Value Receive Value Parameter 00H - 3FH 40H - 7FH 18.2 –64 - 0 - +63 Setting Value Table Transmit Value Receive Value Parameter 18.3 Pan Setting Value Table... -
Seite 18: Reverb Type Setting Value Table
18.5 Reverb Type Setting Value Table Transmit Value Receive Value Parameter Reverb 1 Reverb 2 Reverb 3 Reverb 4 Reverb 5 Reverb 6 Reverb 7 Reverb 8 Reverb 9 Reverb 10 Virtual Hall... -
Seite 19: Midi Implementation Notation
Part V MIDI Implementation Notation Value Notation 19.1 Hexadecimal Notation MIDI implementation sometimes requires that data be expressed in hexadecimal format. Hexadecimal values are indicated by the letter “H” after the value. The hexadecimal equivalents of decimal values 10 through 15 are expressed as the letters A through F. The table below shows the hexadecimal equivalents for decimal values 0 through 127, which are often used in MIDI messages. - Seite 20 Decimal Hexadecimal Binary 00000000B 00000001B 00000010B 00000011B 00000100B 00000101B 00000110B 00000111B 00001000B 00001001B 00001010B 00001011B 00001100B 00001101B 00001110B 00001111B 00010000B 01111101B 01111110B 01111111B...
