Contents
I
1
1.1
Performance Controller Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2
Sound Generator Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
3
II
4
5
6
7
8
9
9.1
Bank Select (00H,20H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.2
Modulation (01H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.3
Data Entry (06H,26H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.4
Volume (07H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.5
Pan (0AH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.6
Expression (0BH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.7
Hold1 (40H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.8
Sostenuto (42H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

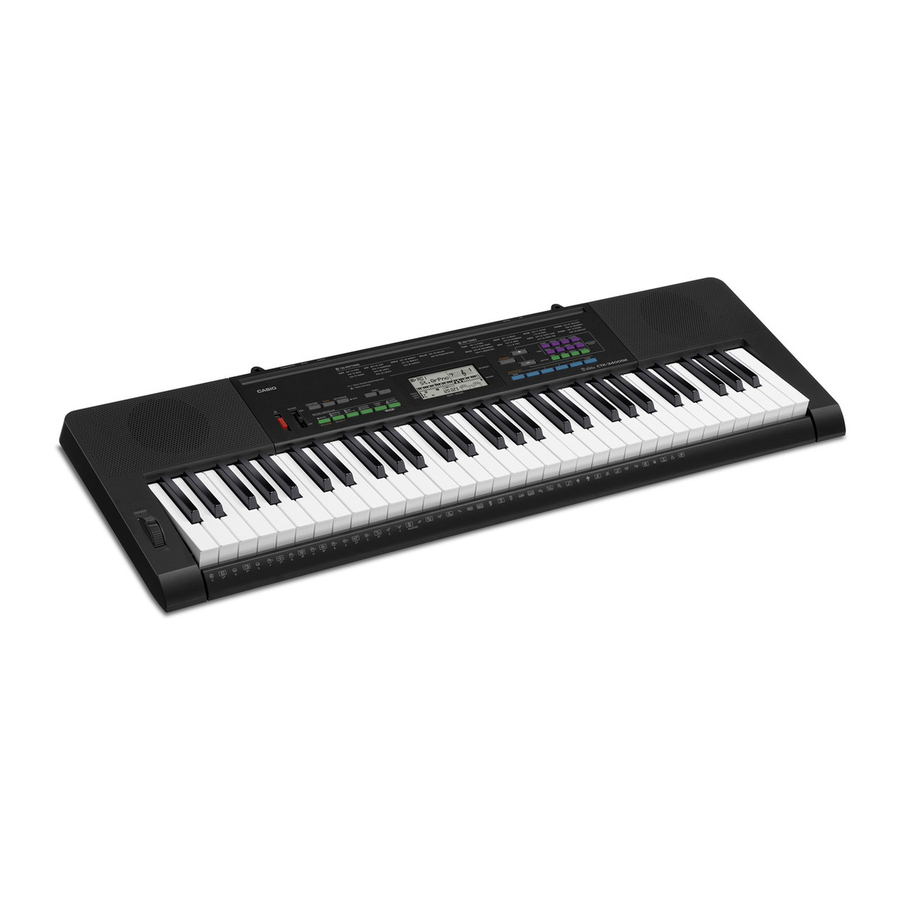

CTK-3400SK/CTK-3388SK
MIDI Implementation
CASIO COMPUTER CO., LTD.
1
4
4
4
4
5
5
6
6
6
6
6
6
7
7
7
8
8
8
8
9
9
Werbung
Inhaltsverzeichnis
Verwandte Anleitungen für Casio CTK-3400SK
Inhaltszusammenfassung für Casio CTK-3400SK
-
Seite 1: Inhaltsverzeichnis
CTK-3400SK/CTK-3388SK MIDI Implementation CASIO COMPUTER CO., LTD. Contents MIDI Message Overview Product Configuration as a MIDI Device Performance Controller Section ....... . . - Seite 2 Soft (43H) ..........9.10 Reverb Send (5BH) .
- Seite 3 MIDI Implementation Notation Value Notation 20.1 Hexadecimal Notation ........20 20.2 Binary Notation .
-
Seite 4: Midi Message Overview
Part I MIDI Message Overview Product Configuration as a MIDI Device As a MIDI device, this Instrument consists of the Performance Controller Section and Sound Generator Section described below. Each of these sections can send and receive specific MIDI Messages in accordance with its function. -
Seite 5: Timbre Type Specific Operation
Number Name Channel Assigned Function Keyboard (Main) Keyboard (Layer) Keyboard (Split) Metronome Auto Accompaniment (Percussion) Auto Accompaniment (Drum) Auto Accompaniment (Bass) Auto Accompaniment (Chord 1) Auto Accompaniment (Chord 2) Auto Accompaniment (Chord 3) Auto Accompaniment (Chord 4) Auto Accompaniment (Chord 5) MIDI/Auto Performance Functions/Recorder (Keyboard Playback Main) MIDI/Auto Performance Functions/Recorder (Keyboard Playback Layer) MIDI/Auto Performance Functions/Recorder (Keyboard Playback Split) -
Seite 6: Channel Message
Part II Channel Message Receive Channel The channel number of the channel message received by each part is shown in the table under “1.2.2 Instrument Part Block”. Send Channel Basically, the MIDI channel of the channel message sent when the Instrument is played coincides with the MIDI channel of the part being played. -
Seite 7: Control Change
Send This message is not sent by this Instrument. Receive This message is not received by this Instrument. Control Change Message Format: BnH ccH vvH MIDI Channel Number Control Number Value Send Sent when the Instrument’s pedal is operated or when Instrument settings are changed. Receive Receipt changes the pedal and other performance conditions, and Instrument settings. -
Seite 8: Data Entry (06H,26H)
Data Entry (06H,26H) Message Format: BnH 06H mmH (MSB) BnH 26H llH (LSB) MIDI Channel Number MSB Value LSB Value Send Sent when there is a change to the parameter assigned to RPN. This Instrument does not have a parameter that corresponds to NRPN. Receive Receipt changes the parameter assigned to RPN. -
Seite 9: Hold1 (40H)
Hold1 (40H) Message Format: BnH 40H vvH MIDI Channel Number Value (Note1) Note1 For information about the relationship between setting values and send/receive values, see the “19.1 Off/On Setting Value Table” in “IV Setting Values and Send/Receive Values” of this document. Send Sent when a pedal that has a sustain (damper) function is operated. -
Seite 10: Reverb Send (5Bh)
9.10 Reverb Send (5BH) Message Format: BnH 5BH vvH MIDI Channel Number Value Send Sent when auto accompaniment is used. Receive Receipt changes the reverb send of the corresponding part. 9.11 NRPN (62H,63H) Message Format: BnH 62H llH (LSB) BnH 63H mmH (MSB) MIDI Channel Number LSB Value MSB Value... -
Seite 11: Coarse Tune
9.12.2 Fine Tune Message Format: BnH 64H 01H BnH 65H 00H BnH 06H mmH BnH 26H llH MIDI Channel Number MSB Value LSB Value Send This message is not sent by this Instrument. Receive Receipt changes the fine tune of the corresponding part. 9.12.3 Coarse Tune Message Format:... -
Seite 12: Reset All Controllers (79H)
Receive Receipt stops all voices that are sounding. 10.2 Reset All Controllers (79H) Message Format: BnH 79H 00H MIDI Channel Number Send Sent when MIDI send related settings are changed. Receive Receipt initializes each performance controller. 10.3 All Notes Off (7BH) Message Format: BnH 7BH 00H MIDI Channel Number... -
Seite 13: Poly (7Fh)
10.7 Poly (7FH) Message Format: BnH 7FH 00H MIDI Channel Number Send This message is not sent by this Instrument. Receive Receipt performs the same operation as when All Notes Off is received. Program Change Message Format: CnH ppH MIDI Channel Number Program Number (Note1) Note1 For details about the relationship between the program number and the tone, see the Tone List that comes with... -
Seite 14: Pitch Bend
Pitch Bend Message Format: EnH llH mmH MIDI Channel Number Value LSB Value MSB Send Sent when the bender is operated. Receive Receipt changes the pitch of the currently sounding note. The range of the pitch change depends on the Bend Range value setting. -
Seite 15: Iii System Message
Part III System Message Timing Clock Message Format: Send Sent when auto accompaniment is used. Receive This message is not received by this Instrument. Start Message Format: Send Sent when auto accompaniment is used. Receive This message is not received by this Instrument. Stop Message Format: Send Sent when auto accompaniment is used. -
Seite 16: Universal Real Time System Exclusive Message
18.1 Universal Real Time System Exclusive Message Message Format: F0H 7FH..F7H 18.1.1 Master Volume Message Format: F0H 7FH 7FH 04H 01H llH mmH F7H LSB Value(Send:00H, Receive:Ignored) MSB Value Send This message is not sent by this Instrument. Receive Receipt changes the Master Volume. 18.1.2 Master Fine Tuning Message Format:... - Seite 17 Receive Receipt changes the Reverb duration. 18.1.5 GM System On Message Format: F0H 7EH 7FH 09H 01H F7H Send This message is not sent by this Instrument. Receive Receipt puts the sound source into a GM sound source mode. 18.1.6 GM System Off...
-
Seite 18: Setting Values And Send/ Receive Values
Part IV Setting Values and Send/ Receive Values Setting Value Tables 19.1 Off/On Setting Value Table Transmit Value Receive Value Parameter 00H - 3FH 40H - 7FH 19.2 –64 - 0 - +63 Setting Value Table Transmit Value Receive Value Parameter 19.3 Pan Setting Value Table... -
Seite 19: Reverb Time Setting Value Table
19.5 Reverb Time Setting Value Table Transmit Value Receive Value Parameter 00H - 0BH 0CH - 17H 18H - 23H 24H - 2FH 30H - 3BH 3CH - 47H 48H - 53H 54H - 5FH 60H - 6BH 6CH - 77H 78H - 7FH... -
Seite 20: V Midi Implementation Notation
Part V MIDI Implementation Notation Value Notation 20.1 Hexadecimal Notation MIDI implementation sometimes requires that data be expressed in hexadecimal format. Hexadecimal values are indicated by the letter “H” after the value. The hexadecimal equivalents of decimal values 10 through 15 are expressed as the letters A through F. The table below shows the hexadecimal equivalents for decimal values 0 through 127, which are often used in MIDI messages. - Seite 21 Decimal Hexadecimal Binary 00000000B 00000001B 00000010B 00000011B 00000100B 00000101B 00000110B 00000111B 00001000B 00001001B 00001010B 00001011B 00001100B 00001101B 00001110B 00001111B 00010000B 01111101B 01111110B 01111111B...
