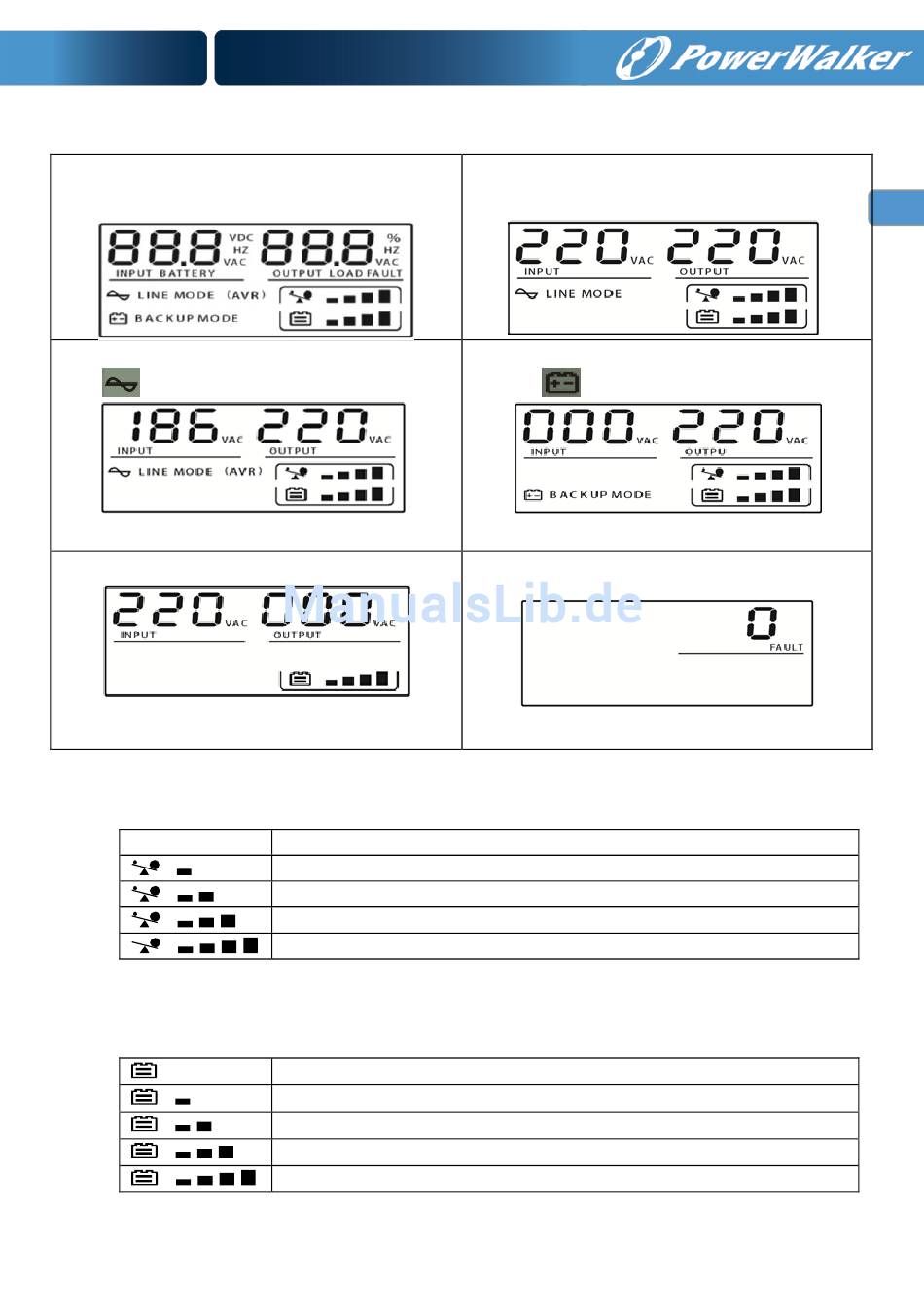

4.3. Display for PowerWalker VI SHL series
When LCD starts to work, it will display all information
for 3 seconds.
When in AVR mode, it will display as below. And the
mark will flicker every 1second.
When in off charging mode, it will display as below.
Note: the output voltage always is displayed as "000"
in off charging mode.
1. Load level definition:
Load level
2. Battery capacity definition:
Battery level
Load bar Indication
0%~25%
25%~50%
50%~75%
75%~100%
When in normal mode, it will display as below.
When in battery mode, it will display as below. And
the mark will flicker every 1second.
Note: If I/P-V<40V，input voltage will display "000"
When in fault mode, it will display as below. "FAULT"
character and "0" character only.
Battery level < 20%
20% ≤ Battery level < 40%
40% ≤ Battery level < 60%
60% ≤ Battery level < 80%
80% ≤ Battery level
