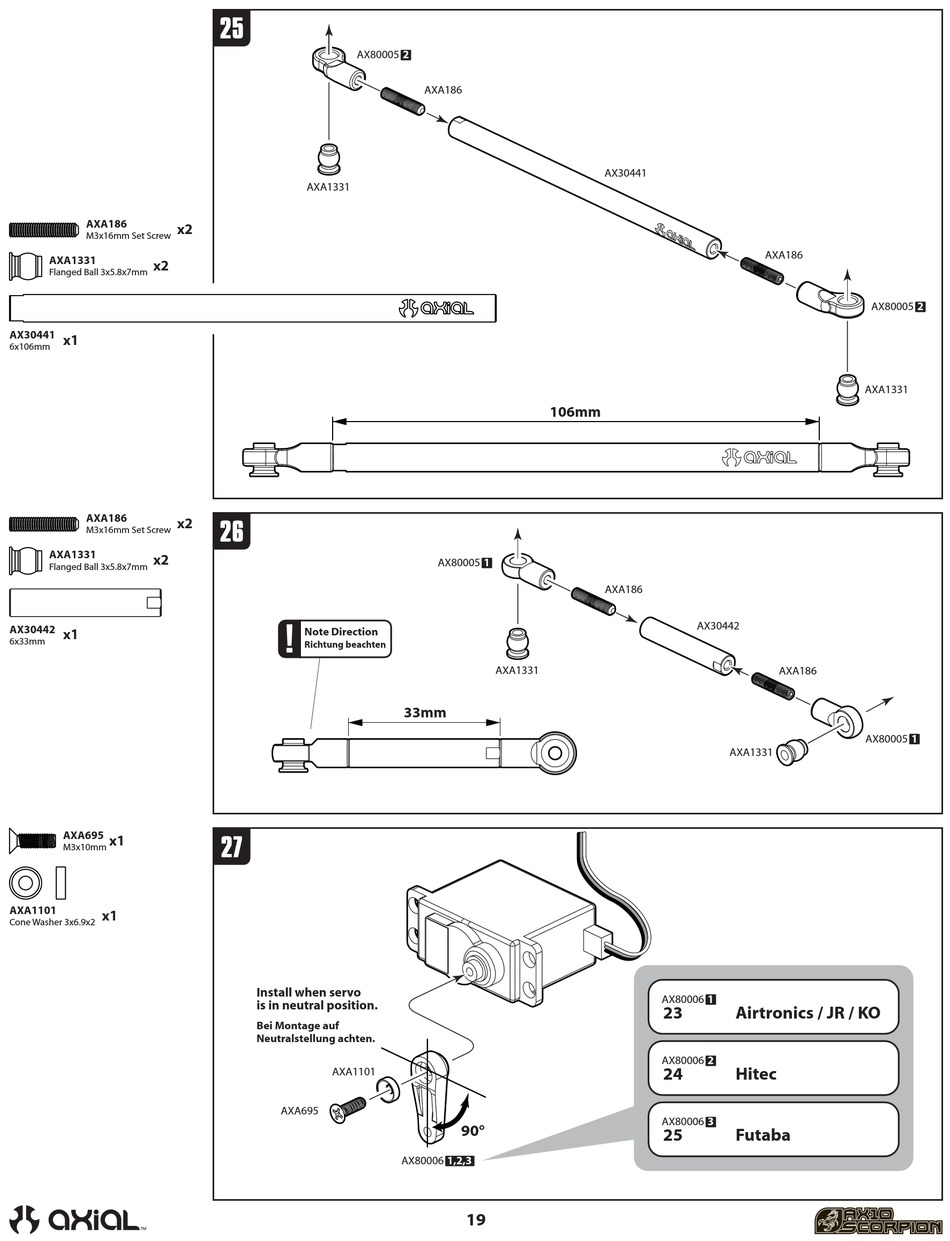

Axial AX10 Scorpion Handbuch Seite 20

AXA186
x2
M3x16mm Set Screw
AXA1331
x2
Flanged Ball 3x5.8x7mm
AX30441
x1
6x106mm
AXA186
x2
M3x16mm Set Screw
AXA1331
x2
Flanged Ball 3x5.8x7mm
AX30442
x1
6x33mm
AXA695
x1
M3x10mm
AXA1101
x1
Cone Washer 3x6.9x2
25
AX80005
AXA1331
26
!
Note Direction
Richtung beachten
27
Install when servo
is in neutral position.
Bei Montage auf
Neutralstellung achten.
AXA1101
AXA695
2
AXA186
106mm
AX80005 1
AXA1331
33mm
90°
AX80006 1,2,3
19
AX30441
AXA186
AXA186
AX30442
AXA186
AXA1331
AX80006 1
23 Airtronics / JR / KO
AX80006 2
24 Hitec
AX80006 3
25 Futaba
AX80005 2
AXA1331
AX80005 1
