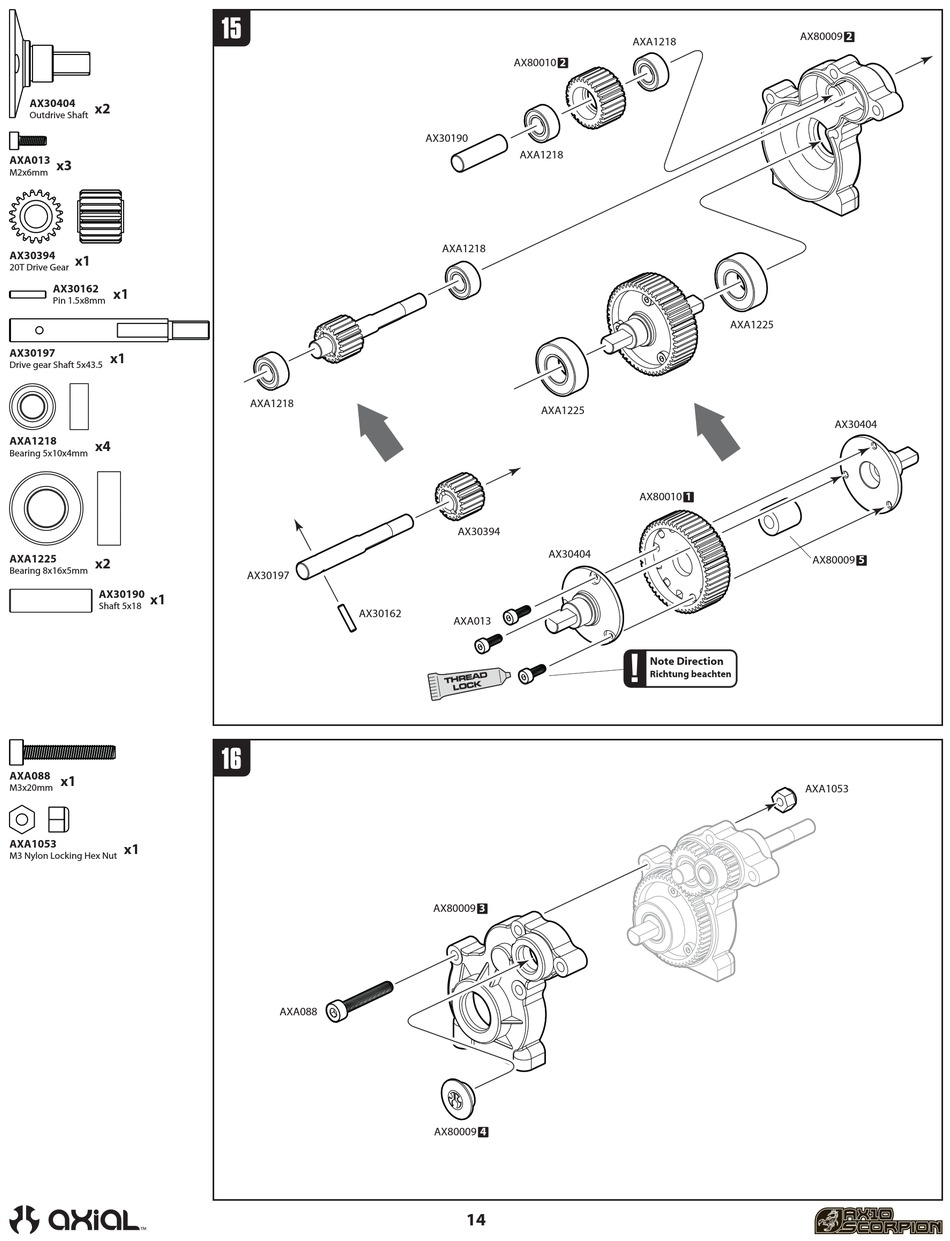

Axial AX10 Scorpion Handbuch Seite 15

AX30404
x2
Outdrive Shaft
AXA013
x3
M2x6mm
AX30394
x1
20T Drive Gear
AX30162
x1
Pin 1.5x8mm
AX30197
x1
Drive gear Shaft 5x43.5
AXA1218
x4
Bearing 5x10x4mm
AXA1225
x2
Bearing 8x16x5mm
AX30190
x1
Shaft 5x18
AXA088
x1
M3x20mm
AXA1053
x1
M3 Nylon Locking Hex Nut
15
AXA1218
AX30197
AX30162
16
AXA088
AX80010 2
AX30190
AXA1218
AXA1218
AXA1225
AX30394
AX30404
AXA013
AX80009 3
AX80009 4
14
AX80009
AXA1218
AXA1225
AX80010 1
!
Note Direction
Richtung beachten
AXA1053
2
AX30404
AX80009 5
