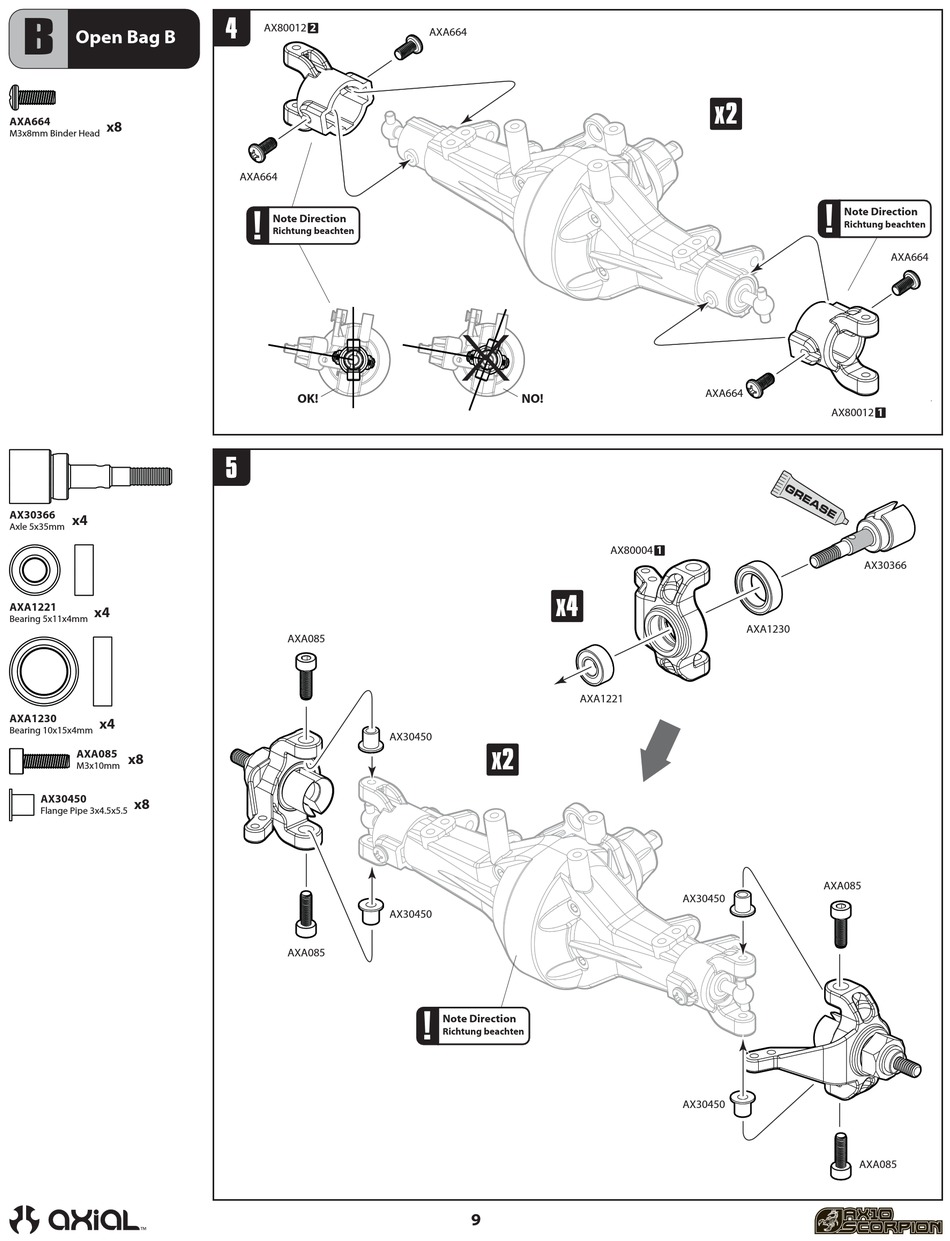

Axial AX10 Scorpion Handbuch Seite 10

B
Open Bag B
AXA664
x8
M3x8mm Binder Head
AX30366
x4
Axle 5x35mm
AXA1221
x4
Bearing 5x11x4mm
AXA1230
x4
Bearing 10x15x4mm
AXA085
x8
M3x10mm
AX30450
x8
Flange Pipe 3x4.5x5.5
4
AX80012 2
AXA664
!
Note Direction
Richtung beachten
OK!
5
AXA085
AX30450
AX30450
AXA085
AXA664
NO!
x4
AXA1221
x2
!
Note Direction
Richtung beachten
9
x2
AXA664
AX80004 1
AXA1230
AX30450
AX30450
!
Note Direction
Richtung beachten
AXA664
AX80012 1
AX30366
AXA085
AXA085
