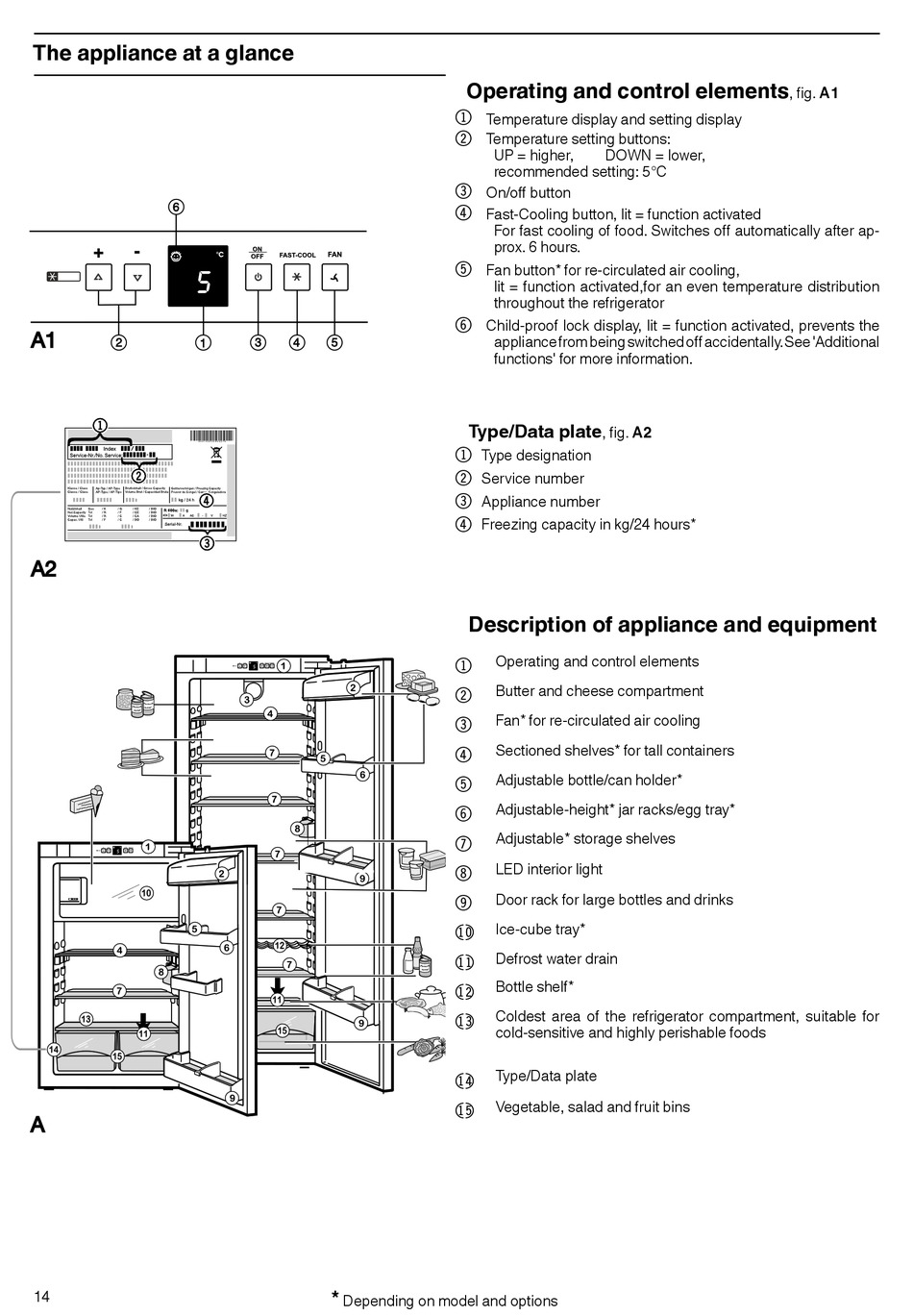

The appliance at a glance

14

Operating and control elements

Temperature display and setting display
1
Temperature setting buttons:
2
UP = higher,
recommended setting: 5°C
On/off button
3
Fast-Cooling button, lit = function activated
4
For fast cooling of food. Switches off automatically after ap-
prox. 6 hours.
Fan button* for re-circulated air cooling,
5
lit = function activated,for an even temperature distribution
throughout the refrigerator
Child-proof lock display, lit = function activated, prevents the
6
appliance from being switched off accidentally. See 'Additional
functions' for more information.
Type/Data plate
Type designation
1
Service number
2
Appliance number
3
Freezing capacity in kg/24 hours*
4

Description of appliance and equipment

Operating and control elements
1
Butter and cheese compartment
2
Fan* for re-circulated air cooling
3
Sectioned shelves* for tall containers
4
Adjustable bottle/can holder*
5
Adjustable-height* jar racks/egg tray*
6
Adjustable* storage shelves
7
LED interior light
8
Door rack for large bottles and drinks
9
Ice-cube tray*
bl
Defrost water drain
bm
Bottle shelf*
bn
Coldest area of the refrigerator compartment, suitable for
bo
cold-sensitive and highly perishable foods
Type/Data plate
bp
Vegetable, salad and fruit bins
bq
*
Depending on model and options
DOWN = lower,
A2
, fig.
A1
, fig.
