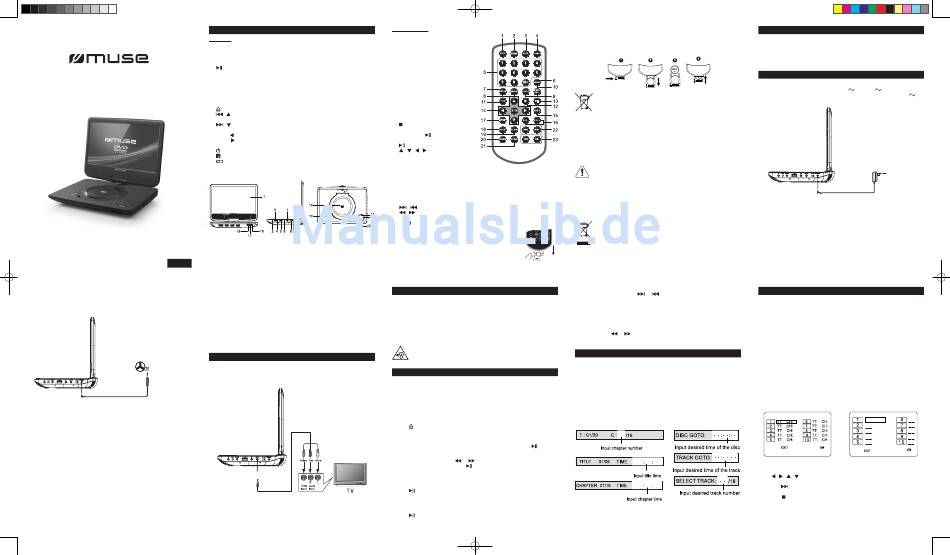

M-1070 DP
Portable DVD Player
User Manual
Please read the instruction carefully before operating the unit.
English
* Never use an AC adaptor that is damaged, route power lead in a safe manner and
make sure it is not subjected to trapping or pinching. If the power lead is damaged
refer to a qualified service agent.
Using the car plug
Right side of unit
To the cigarette
lighter socket
car plug
To DC IN 9V-12V jack
WARNING: Disconnect this car power adaptor when not in use. Not for use in 24V
vehicles.
Cautions:
• Use only the included 12V car power adaptor. Use of any other 12V car power adaptor
could damage the unit.
• The 12V car power adaptor included is for use with this unit only. Do not use it with any
other equipment.
• In the interest of traffic safety, drivers should not operate the unit or view videos while
driving.
• Make sure the unit is fastened correctly to prevent from falling in the vehicle in the
event of an accident.
• When the inside of the cigarette lighter socket is dirty with ashes or dust, the plug
section may become hot due to poor contact. Be sure to clean the cigarette lighter
socket before use.
• After use, disconnect the car power adaptor from both the unit and cigarette lighter
socket.
Using the Built- in battery
The unit has a built-in rechargeable battery (lithium-polymer). Charge the built-in battery
before using it for the first time. For new or exhausted rechargeable battery pack, we
recommend it be recharged for 3 hours. It can be recharged at any time regardless of
whether it is fully or partially discharged. The charging indicator will stay lit when the
built-in battery becomes fully charged.
GB - 5
DVP-3835 IB MUSE 001 REV0- GB.indd 1
LOCATION OF CONTROLS
Main Unit
1. LCD screen
Note: The LCD screen is connected to the main body of the player via a rotatable
axis which can be rotate horizontally clockwise 180 degree. Do not over rotate the
screen or you will destroy the unit.
2. : To start and pause the playback.
3. SETUP: To enter the Setup menu
4. SOURCE : To select between DVD or USB mode.
5. USB port
6. Earphones jack
7. AV OUT jack
8. ON/OFF switch
9. DC IN 9-12V jack
10. OPEN button
11. / : To access previous chapters (DVD) / tracks (CD). Move up during menu
navigation.
12. / : To access next chapters (DVD) / tracks (CD). Move down during menu
navigation.
13. VOL- / : To decrease volume; Move left during menu navigation.
14. VOL+ / : To increase volume; Move right during menu navigation.
15. Disc door
16. Power ON indicator: When the unit is switched ON, the light will illuminate.
17. Remote sensor
18. Charging indicator: The charging indicator will stay lit when the built-in battery
becomes fully charged.
GB - 1
Warnings:
• To charge the battery, just connect the AC adaptor.
• Recharge the built-in battery when you are ready to use it again.
• While using the built-in battery, the environmental temperature should be 5°C (41°F) to
35°C (95°F).
• To get the longest service life of the built-in battery, charge at indoor-temperature.
• The built-in battery in this device may present a risk of fire or chemical burn if
mistreated. Do not disassemble, heat above 100°C (212°F), or incinerate.
• The unit should not be exposed to excessive heat such as sunshine, fire or the like.
• When discarding the unit, environmental problems must be considered and local rules
or laws governing the disposal of such products must be strictly followed.
• When the built-in battery power is low, " LOW BATTERY" will blink on display.
CONNECTIONS
Disconnect all devices from the mains supply before connecting.
Connecting to TV
Right side of unit
A/V cable
To AV OUT jack
GB - 6
Remote control
1. STEP : To play frame by frame
2. SEARCH : To search for a desired title,
chapter, Time or Track.
3. MUTE : To mute or restore sound.
4. SOURCE : To select between DVD or
USB mode
5. 0,1,2...9, 10+ : Number entry
6. DISPLAY : To show status information
on the screen.
7. SUBTITLE : To change the subtitle
setting
8. ANGLE : To access the camera angle
function for DVD disc
9. AUDIO : To change the audio setting
10. MENU/PBC : To access disc menu. To
turn PBC mode on/off for VCD.
11. TITLE : To access the disc title menu
12. : MP3 : press once to stop playback.
D V D / CD: pr e s s onc e t o pr e - s t op
(resume with button), press again to
stop playback.
13. : To start and pause the playback
14. , , , : To navigate through the
on-screen menu.
ENTER : To confirm the selection during
menu navigation
15. MODE : To access Video Setup page directly.
16. VOL-/+ : To adjust the volume
17. SETUP : To enter the Setup menu
18. REPEAT : To repeat playback .
19. SLOW : To play at slow motion.
20. PROGRAM : To program playback sequences.
21. ZOOM : To access the zoom function
22. / : To directly access the next or previous chapter (DVD) or track (CD).
23. / : To start reverse or forward accelerated playback.
Note: " " will be displayed if the function you select is not available.
VO L- VO L+
The remote control operates on 1pc "CR2025" lithium battery
REPEAT
(included). To power up the remote control, remove the insulation PROGRAM Z OOM
tab from the back of unit.
GB - 2
USING HEADPHONES / EARPHONES
Maximum output voltage ≤ 150mV
Wide Band Characteristic Voltage ≥ 75mV
HEADPHONE VOLUME WARNING
Connect earphones with the volume set low and increase it if required. Prolonged
listening through some earphones at high volume settings can result in hearing damage.
When headphones/earphones are connected, no sound will be emitted from the unit's
speaker.
Caution: Avoid listening to sound at levels which may be harmful to your ears.
To prevent possible hearing damage, do not listen at high volume levels for
long periods.
DISC PLAYBACK
Region Management Information
Region Management Information: This unit is designed and manufactured to respond
to the Region Management Information that is encoded on DVD discs. If the Region
number printed on the DVD disc does not correspond to the Region number of this unit,
this unit cannot play that disc.
The region number of this unit is 2.
Basic Playback
1. Slide ON /OFF switch to turn ON the unit. The power ON indicator will go on.
2. Press button to open the disc door.
3. Insert a disc with label face up.
4. Close the disc door. It takes a short while for your unit to load the disc. After loading,
the unit will automatically bring you to the main menu of the DVD or start playing the
DVD. If the unit does not automatically start playing the DVD, press the .
Accelerated play
While the disc is playing, press or one or more times to vary the speed and
direction of the accelerated play. Press to resume normal playback.
Frame advance (DVD)
1. While the disc is playing, press STEP once.
2. Press STEP a number of times to advance forward image by image
3. Press to resume normal playback.
Variable slow motion (DVD)
1. While the disc is playing, press SLOW button.
2. Press the SLOW button repeatedly to change slow speed and direction.
3. Press to resume normal playback.
GB - 7
REPLACING BATTERY FOR THE REMOTE CONTROL
1. Push the button toward right.
2. Pull the battery loader out.
3. Insert one "CR2025" size battery with the positive side (+) facing up.
4. Replace the cover.
Before throwing any batteries away, consult your distributor who may be
able to take them back for specific recycling.
NOTES:
- Never recharge the batteries, apply heat to them or take them apart.
- In order to avoid leakage, always remove the batteries when unit will not be used for
a long period of time.
- If the remote control is not going to be used for a long time, remove the battery to
avoid damage caused by battery leakage corrosion.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.
WARNING
Do not ingest the battery, Chemical Burn Hazard.
(The remote control supplied with) This product contains a coin/ button cell
battery. If the coin/ button cell battery is swallowed, it can cause severe internal burns
in just 2 hours and can lead to death.
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it
away from children.
If you think batteries might have been swallowed or placed inside any part of the body,
seek immediate medical attention.
If at any time in the future you should need to dispose of this product
please note that Waste electrical products should not be disposed of
with household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice.(Waste Electrical and
Electronic Equipment Directive)
GB - 3
Changing chapter/track
While the disc is playing, press or to go immediately to the next or previous
chapter (DVD), or to the next or previous track (CD).
Zoom (DVD, JPEG)
While a disc is playing, press ZOOM until you reach the zoom size you want. The button
cycles through 2x, 3x, 4x and then zooms out to 1/2x, 1/3x and 1/4x, then returns to
normal playback.
Note: Under Zoom function for JPEG file, press ZOOM button to go to Zoom 100%
mode, then Press or button a number of times to vary the Zoom steps which
you want.
ADVANCED FUNCTIONS
On screen display
Press the DISPLAY button a number of times during playback to show in turn:
DVD: Title elapsed time, Title remaining time, Chapter elapsed time, Chapter remaining
time, Display off.
CD: Track elapsed time, Track remaining time, Total elapsed time, Total Remaining time,
Display off.
Search a desired section
The user can access a specific location or a specific track by keying in the target time or
the track number.
1. Press SEARCH button repeatedly to enter different search mode.
DVD CD
2. Input the chapter number or playback time, then it will jump to the target location
immediately.
GB - 8
ACCESSORIES
Remote control x1
AC adaptor x1
Car plug x1
Car mounting bag x1
Earphones x1
POWER SUPPLY
Using the AC adaptor
The AC adaptor operates on AC between 100V and 240V .
The supplied AC adaptor is suitable for use on AC mains supplies of 100-240V and
should only be connected to a mains supply within these parameters.
Right side of unit
AC adaptor
To AC outlet
To DC IN 9V-12V jack
Cautions:
* The AC adaptor included with this unit is for its use only. Do not use it with other
equipment.
* Turn off the unit before unplugging the AC adaptor from the unit so as to avoid the unit
being damaged.
* When the unit is not going to be used for long time, disconnect the AC adaptor from
the AC outlet.
* Be sure to use it near the wall outlet and easily accessible. If a malfunction occurs,
disconnect the plug from the wall outlet at once.
* AC adaptor is used as the disconnect device. It shall remain readily operable and
should not be obstructed during intended use. To be completely disconnected the
apparatus from supply mains, the AC adaptor of the apparatus shall be disconnected
from the mains socket outlet completely.
GB - 4
PLAY MODES
Repeat playback
While the disc is playing, press the REPEAT button repeatedly to select a play mode:
DVD: Repeat Chapter, Repeat Title, Repeat All, (Repeat Off);
CD: Repeat Track, Repeat All, (Repeat Off);
MP3: Single, Repeat one, Repeat Folder, Folder, Shuffle, Random
Note:
"SINGLE" : The selected track will play once and then stop playback.
"REPEAT ONE" : The selected track will play continuously.
"REPEAT FOLDER" : All tracks in the selected folder will play continuously.
"FOLDER" : All tracks in the selected folder will play once and then stop playback.
"SHUFFLE" : Randomly play once and then stop playback.
"RANDOM" : Random play continuously.
Note: Some DVD discs do not allow repeat function.
Program playback
With this option, you choose and program the playback order. You can store up to 20
tracks.
1. Insert a disc.
2. In playing or stop mode, press the PROGRAM button. The Program menu appears.
DVD CD
3. Use the number buttons to enter the title number and then the chapter number (DVD)
or the track number (CD).
4. Use , , , button moving to the next input. Repeat step 3 until programming
is completed.
Note: press to go to next page for programming track 11 to 20.
5. Highlight the "PLAY" icon, press ENTER button to start the program play.
6. Press the button to stop the program playback and clear the program memory.
GB - 9
2016/8/19 15:58:11
