either in automatic or in manual mode. In the lower line of the display the current intensity value appears in
percent.
the UP button, the LED starts flashing, signaling that the glow-lamps can now be turned on with buttons 1-
16. The controller sends switching-on values to the units while you keep that button pressed! If you press the
DOWN button, its LED starts flashing, signaling that glow-lamp switching-out commands can be sent to the
units with buttons 1-16.
You can log off from the setup by pressing the LEFT or RIGHT button.
RESET function
The controller is able to reset the controlled units if the unit has such a function and a special reset function
was set during the installation! In case you keep the ESC-ENTER buttons pressed simultaneously the
controller switches to reset mode. Then the reset command can be forwarded to the units with buttons 1-16.
The controller sends the reset command to the units until the button is kept pressed!
You can log off from the setup pressing the ESC or ENTER button.
The controller can control a dmx smoke-machine with a maximum 8 channels. How the
configuration can be made on the controller was described in the setup menu. In automatic and
manual modes active values can be forwarded to the 8 smoke-machine channels when the
SMOKE button is pressed.
If you keep the SMOKE button pressed the active values can be changed with potentiometers 1-
8. The controller remembers them after releasing the SMOKE button and loads them when
pressing the button next time. The SMOKE active caption appears in the lower line on the display when the
button is pressed.
MENÜ - PENDRIVE
The user can save the controller data to a pendrive, and also possible to load this data from pendrive to
controller.
After ENTER the menu the controller will looking for plugged pendrive. It takes some seconds. If you plugged
already the pendrive, but the controller doesn't found, then try to extot from menu and enter again. There is
many type of USB Pendrive and sometimes you should try again because of compatibility problems. But the
most pendrive works first time.
After succesfull contact you can choose between two possibility.
All DATA from PENDRIVE to controller
Select this menu and press ENTER. With UP-DOWN buttons you can select a file from the pendrive. Press
ENTER to start copy data from pendrive. The process takes about 8 minutes. Under process the controller
can not be switched off! After succesfull reading, all data will be lost which was on the controller before copy.
We can offer you befor copy data to controller to save the actual data to another file to pendrive or PC.

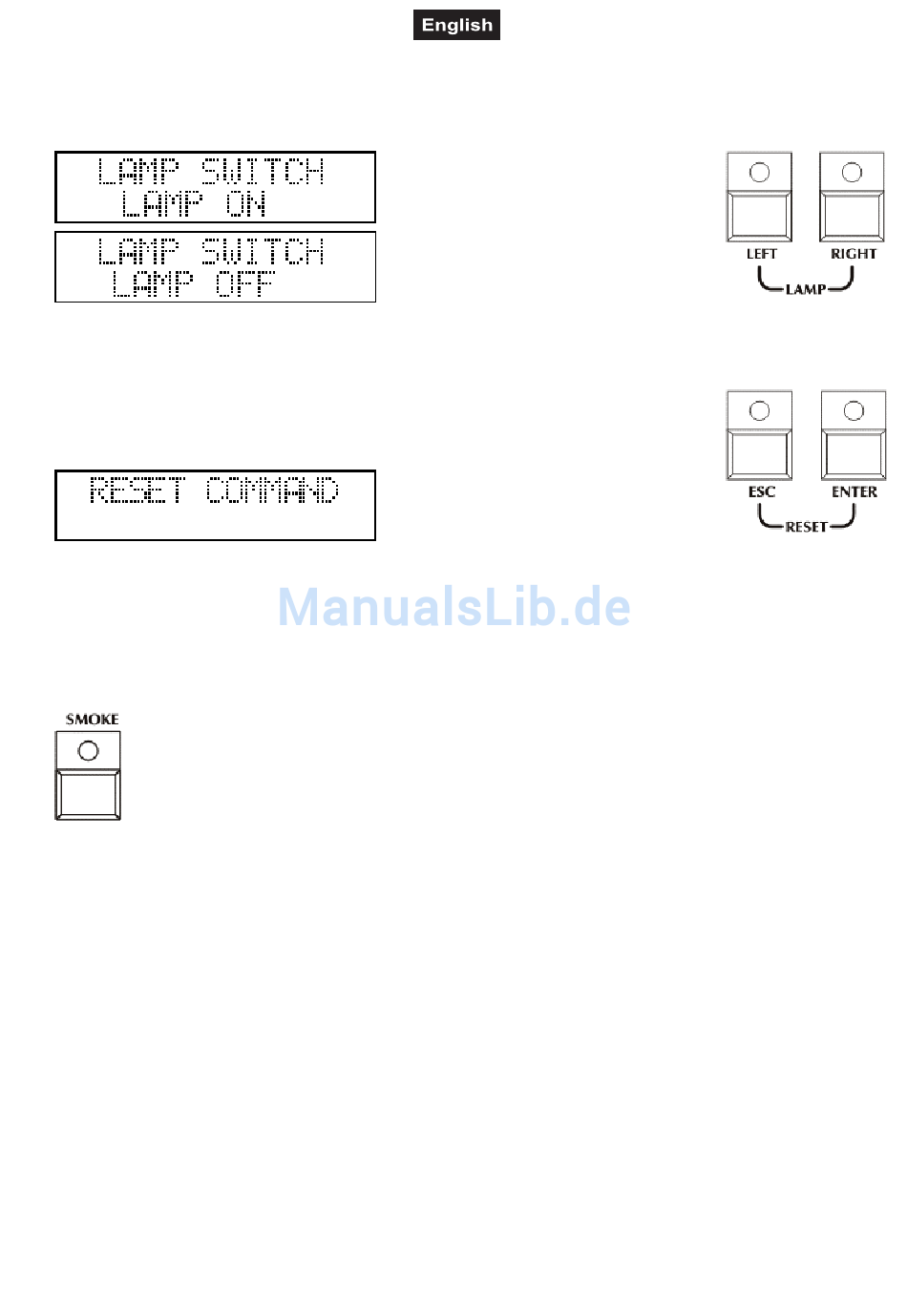

LAMP function
The controller is able to simply switch the
glow-lamp of the controlled units on and off
– only if the unit has such a function and a
special lamp function was set at the
installation! By keeping the LEFT/RIGHT
buttons
controller switches to lamp mode. At that
time switching-on and switching-out values
can be forwarded to the units with buttons 1-16. If you press
SMOKE-MACHINE control
61/62
pressed simultaneously the
