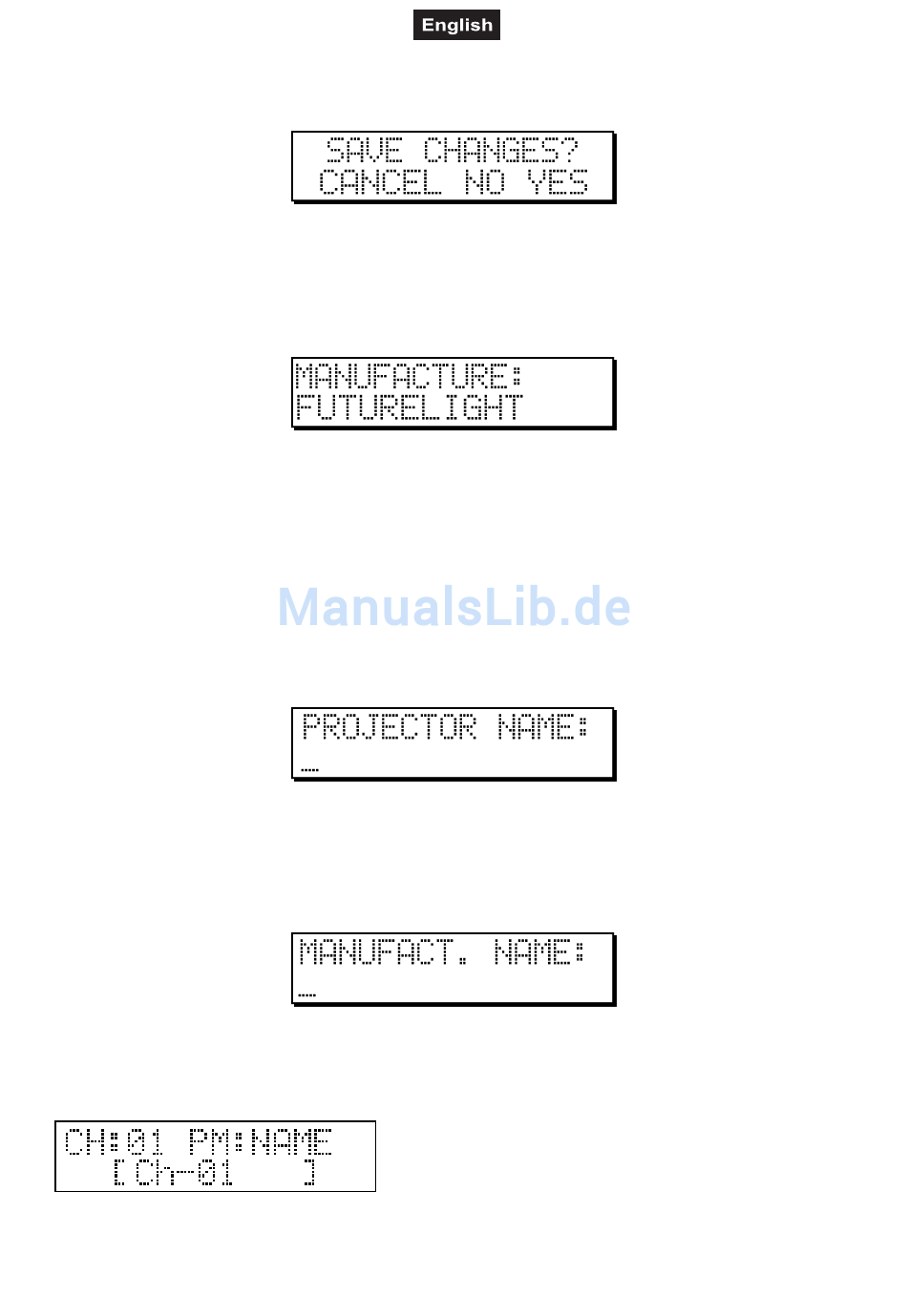

If no modification has been made in the menu item, the controller returns to the setup menu by pressing the
ESC button, if any modifications have been made, the controller asks for the confirmation to save the
modification.
By pressing the 'Cancel' (LEFT) button the controller will remain in the menu item. By pressing the 'No'
button the controller will return to the menu without saving the modifications, while pressing the 'Yes' button
(ENTER) makes the controller save the modification and return to the menu.

SETUP MENU 1: UNIT INSTALLATION

You can find the directory of the control unit here. The controller is able to store a max. of 256 different units
in its memory. Due to the great number of types the data is systemized according to the manufacturer. It is
possible to enter a new unit if you have not used all the 256 possibilities yet. The date of a selected unit can
be modified and a unit can be deleted.
ENTERING A NEW UNIT:
Press the NEW (RIGHT) button to enter the new unit. It does not matter whether you are in the selection of
manufacturer's name or unit name, the only difference will be that the controller will automatically provide the
manufacturers name when starting from the selection of a unit name.
Providing the unit name:
Give the unit name.
By pressing ESC the controller returns to unit selection, in case of a modification it asks for the confirmation
to save.
By pressing ENTER the controller advances a step and asks you to provide the name of the unit's
manufacturer.
Give the name of the unit's manufacturer.
By pressing ENTER the controller advances to editing the unit, it will immediately edit the name of the unit's
first channel.
Supply the unit channel name:
In the upper line the current channel number of the unit and the name of the current parameter appears.
When logging on these are ch:1 and PM: NAME. In the lower line the name of the current channel appears.
