14. PROGRAM button: program event group, after pressing it down programs can be launched on the
1-16 buttons.
15. SCENE button: scene shifting of the running programs stops, and when pressing it down the active
programs can be shifted manually.
16. PRESET button: preset scenes can be launched on the 1-16 buttons after pressing it down
17. SEQUENCE button: sequences can be started on the 1-16 buttons after pressing it down.
18. JOG wheels: in manual mode the mirrors of units and the rotating heads can be moved on the
selected units, and in automatic mode the program scene shifting time can be set up with the PAN
disc between 60.0-200.0bpm k, while with the TILT disc the frequency of scene shifting can be set
up between 1-8.
19. BPM button: manual bpm value can be set up for shifting the program scene. The button has to be
struck according to the music rhythm, so the controller remembers the frequency of pressing down,
and it will shift the program scenes in such pace.
20. BLACK-OUT button: the controller can be switched on or off by pressing down if for a long and the
black out function can be activated by short pressing down.
2-7. MENU buttons: shortly after keeping the two buttons pressed down simultaneously the controller
enters the menu.
14-15. LAMP buttons. Shortly after keeping the two buttons pressed down simultaneously the controller
enters the fervent switching on-off mode.
16-17. RESET buttons: shortly after keeping the two buttons pressed down simultaneously the
controller enters the reset activating mode.

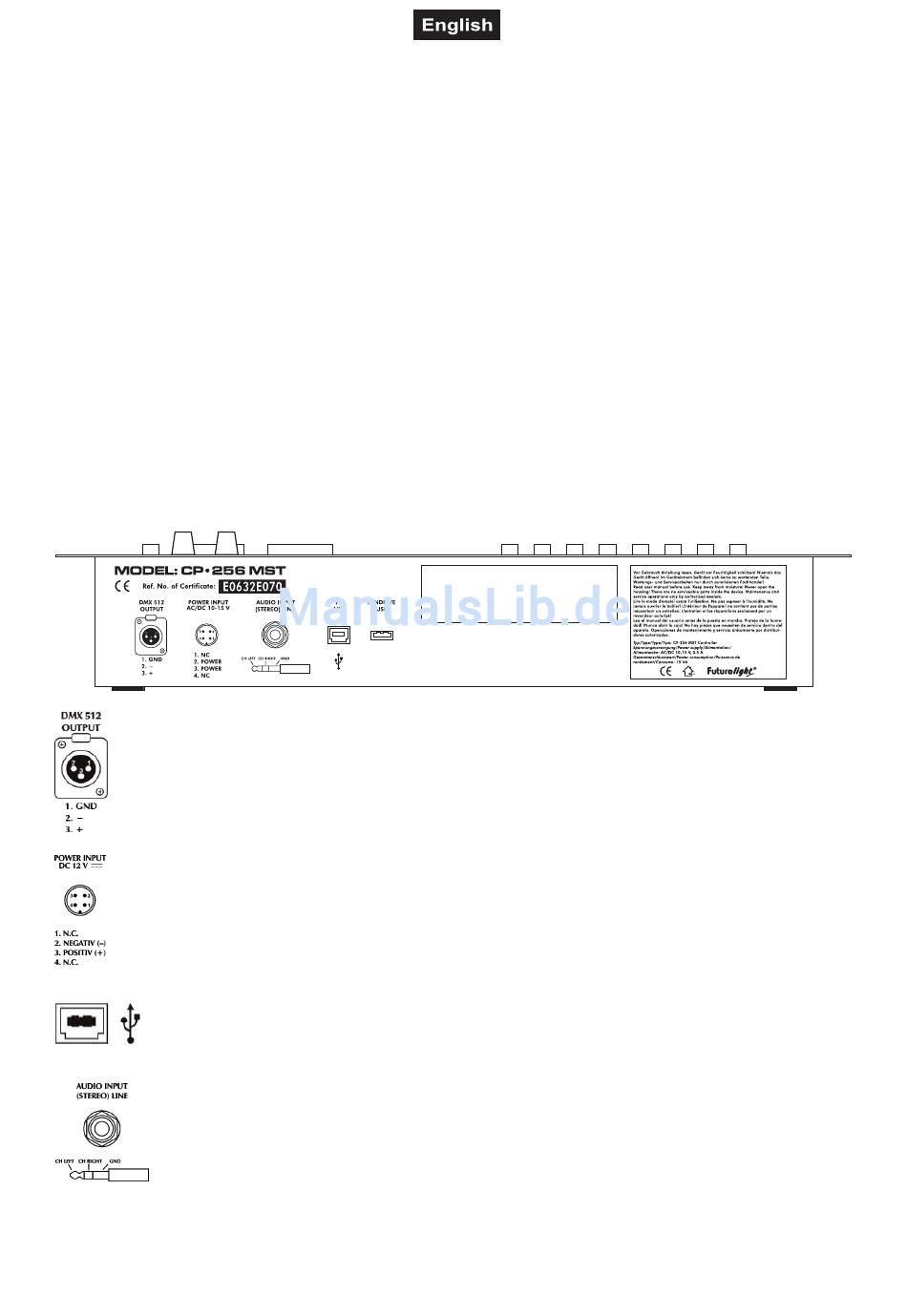

Rear panel:
DMX connector: For scanners, movingheads, dimmers and smoke-machines
Power supply: The controller can be operated from a power supply of AC and DC types, therefore
the linking is not sensitive to polarity. The controller should be operated only from such a power
supply, which is of 12 voltage and can be loaded with at least 500mA.
PC USB connector
AUDIO INPUT (STEREO LINE) connector: 6,3 mm jack
USB Pendrive
