4. DESCRIPTION OF THE DEVICE

4.1 Features
DMX-controller with Pendrive
512 control channel for 16 projectors with up to 32 channels • 16 bit resolution for fine Pan/Tilt movements •
Comprehensive projector library • USB Pendrive for memory back up, loading fixture profiles and software
updates (up to 2 GB) • 64 programs with up to 99 scenes can be programmed • 64 records • 64 Preset
Scenes • 10 selectable languages • Mirror-movement direction can be inverted • Copy-function for the
scenes, programs and records • 64 Sequences • Blackout-function • Sound control via built-in microphone or
Audio-socket • Security code operation • Operating hour meter • 19" mounting dimensions with 4 units

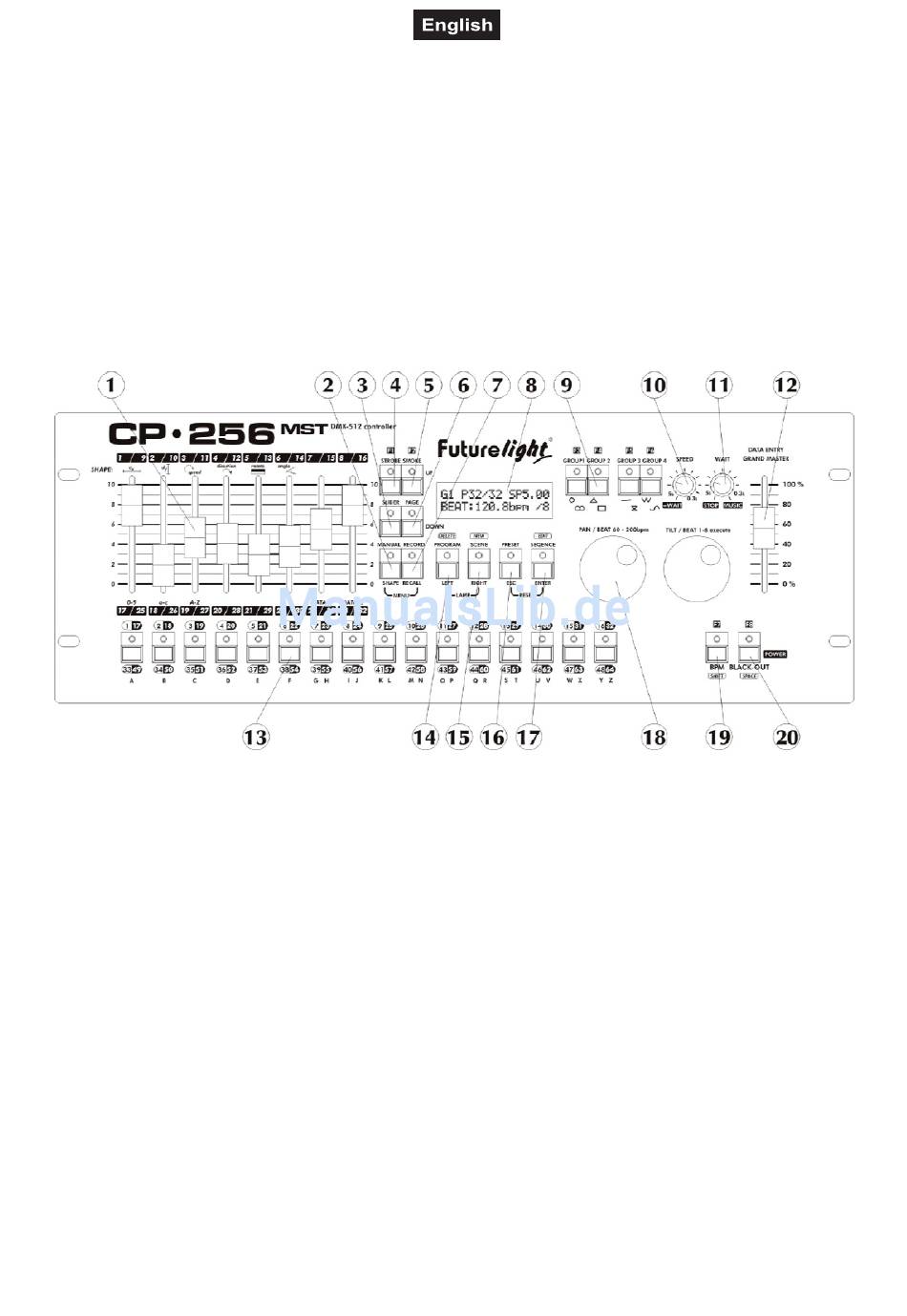

4.2 Overview
Overview on the control elements
1. 1-8 potentiometers: Manual setting of the channels of the units and modification of the formation
parameters
2. MANUAL button: For entering the manual mode, if the LED is at full intensity the manual mode is
active, if the LED is flashing the channel is overridden in manual mode.
3. SLIDER button: Potentiometer shifting button; shifting can be made by pressing down the 1-16
channels or the 17-32 channels can be modified with the 1-8 potentiometers. If the LED is flashing
the upper 16 ones are available.
4. STROBE button: Press it and the strobo effect can be stopped on the units.
5. SMOKE button: Control of the smoke-machine, pressing it to get the active values to the dmx line,
by keeping it pressed down the active values can be set up with the 1-8 potentiometers.
6. PAGE button: Shifting button for the 1-16 buttons. After pressing it down the 17-32 events can be
accessed on the 1-16 buttons. Press it again and the 1-16 events are available.
7. RECORD button: Press it and the record events can be launched on the 1-16 buttons
8. DISPLAY: LCD display with 2x16 characters, the intensity of the background illumination and its
contrast can be set up in the menu, when moving any of the operating devices, it presents
information about the changes.
9. GROUP1-GROUP4 buttons: In automatic mode four banks can be selected with them and it
supports the selection of the 8 formations in formation construction.
10. SPEED potentiometer: Sets the running speed of programs, sequences from 0.3s-5.0s. The setup
is linear between the two limits, the current value is shown by the display to the thousandth second.
11. WAIT potentiometer: Time between shifting the program steps can be set up between 0.3s-0.5s, in
minimum position the music mode is turned on, and in maximum position it stops shifting the steps.
12. DATA ENTRY potentiometer: In automatic mode it operates as GRAND MASTER, it sets the
intensity of the dimmer channels. In the menu it supports retrieving the values and positioning.
13. 1-16 buttons: the events of the current event group can be launched on them (program, sequence,
record, preset), in manual mode the unit can be selected with them.
