MASTER control for the overall volume
1
POWER indicator
2
CLIP indicator
3
Lights red in case of overload. Reduce the volume with the master control until the LED does not
light anymore, or only at signal peaks.
SUB volume control for the subwoofer
4
Line input
5
6.3 mm stereo jack and bal. XLR jack, for connecting microphones or audio units with line level
(e.g. mixer, CD player).
Always use either the XLR or the 6.3 mm jack input.
LINK OUT feed-through output
6
Bal. XLR jack, connected in parallel to the inputs, to connect another device, e.g. a further active
speaker system.
TO SATELLITE speaker connector
7
Speaker jack for connecting the satellite speaker.
Power input
8
Plug in the supplied power cable here.
Fuse
9
Only replace the fuse when the device is disconnected from mains. Only use fuses of the same
rating and power. The correct fuse value is specified on the rear panel.
Voltage selector switch
10
Power switch
11
..............................................................................................................................................................................
5
INSTALLATION

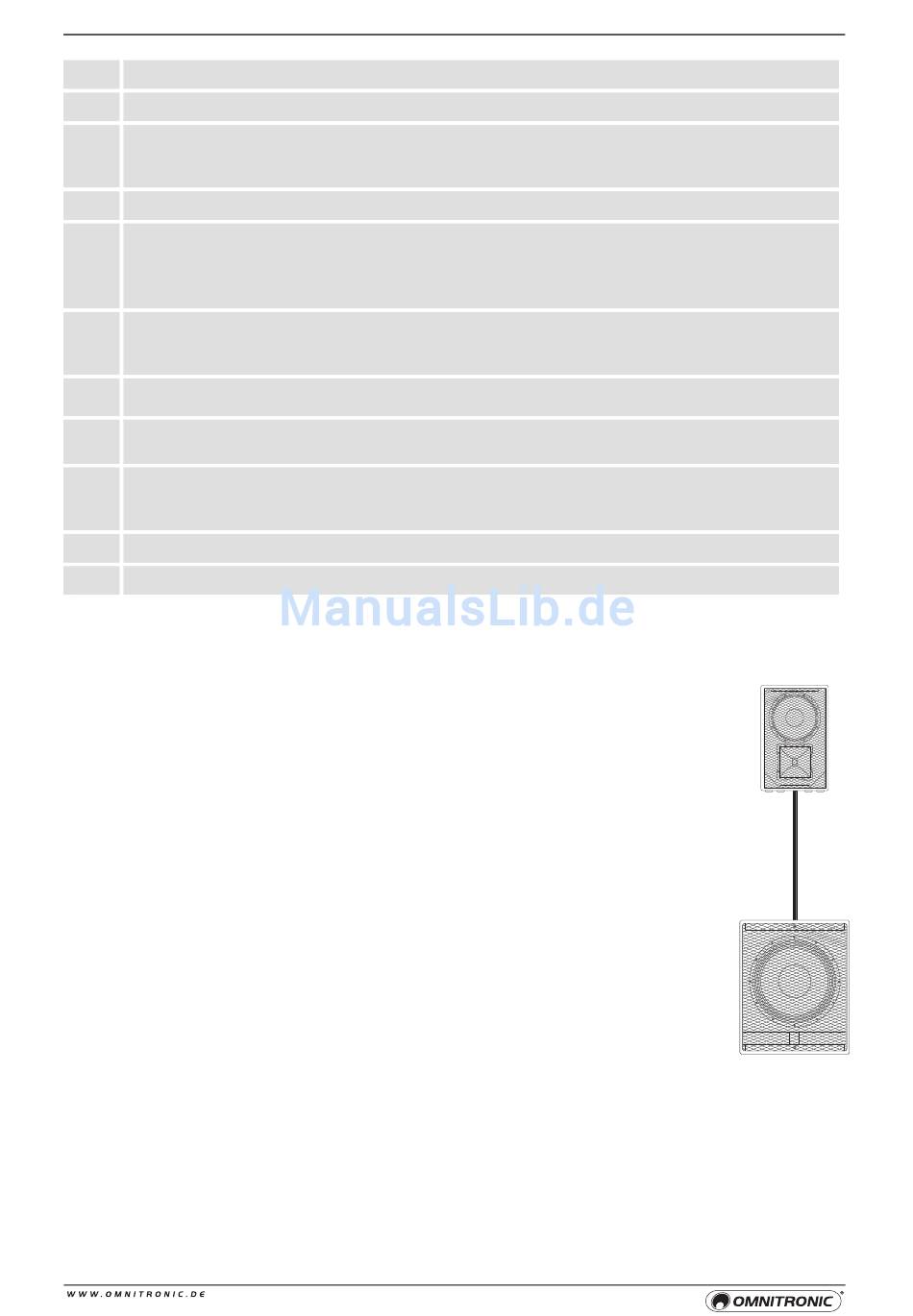

The speaker systems can be placed as desired or mounted to a satellite system with a
distance tube. For this, insert a distance tube of 35 mm (accessory) into the flange on
the upper side of the subwoofer; then fasten the satellite speaker on top.
• Always install the speakers at a solid, plane, anti-slip, vibration-free, oscillation-free
and fire-resistant location. Before installing the system, make sure that the installation
area can hold a minimum point load of 5 times the system's load (e.g. weight 20 kg -
point load 100 kg). The speakers must never be installed higher than 100 cm without
secondary attachment.
• Satellite systems must only be installed on a plane area with a maximum inclination
angle of 5°.
• The stand has to be installed out of the reach of people. An unintended movement of
the load has to be avoided - also in case of fire!
• Depending upon the individual installation spot, all necessary measures against
movement and for securing the standing safety have to be taken.
16
