Installation

7. Installation
!
On installation, the minimum distance
between the hob and the hood must be
exactly complied with (see chapter 7.1
"Installation data") and follow the num-
bering of the steps and the additional
instructions. Execution with air exhaus-
ted outdoors (A- see also the installation
data). The vapours are extracted via an
air exhaust hose fixed to the connector
ring.
The diameter of the exhaust air hose
must conform to that of the connector
ring. If a smoke non-return valve is used
or is planned, check whether it can open
and close freely after the installation of
the exhaust air hose. The extractor hood
can be equipped with one (top) or two
(top and back) extractor openings.
The hood is normally initially fitted out
for use of the top extractor opening, as
an extractor hood.
Openings not required are fitted with a
plastic cover. This plastic cover can be
easily removed by turning counterclock-
wise and optionally fitted to another ope-
ning which is not required.
30

4.2 Carbon filters

Traditional carbon filters (normally round
in shape) can be neither washer nor rege-
nerated. In normal use and depending
on their size, replace every 4 to 6 months.
Comply with the relevant instructions on
the package.
Original Carbon filter
for this model: K122

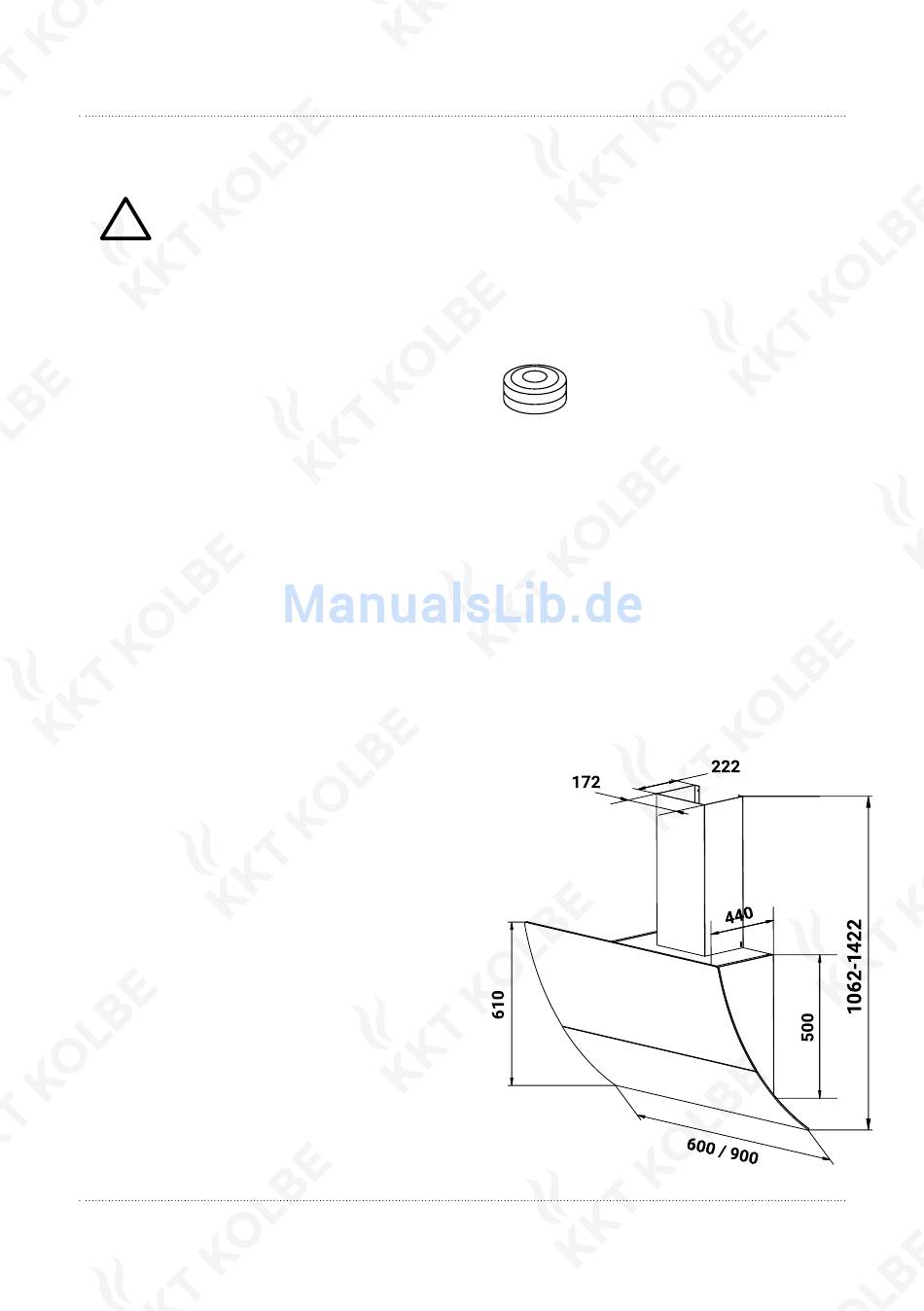

7.1 Installation data /

dimensions
Minimum distance from the lower edge of
the hood body:
to ceramic and cast cooking hobs 65 cm.
to gas hob 70 cm.
to hobs with coal/oil/wood firing 85 cm.
