Installation Step 4 (installation of the RC components)

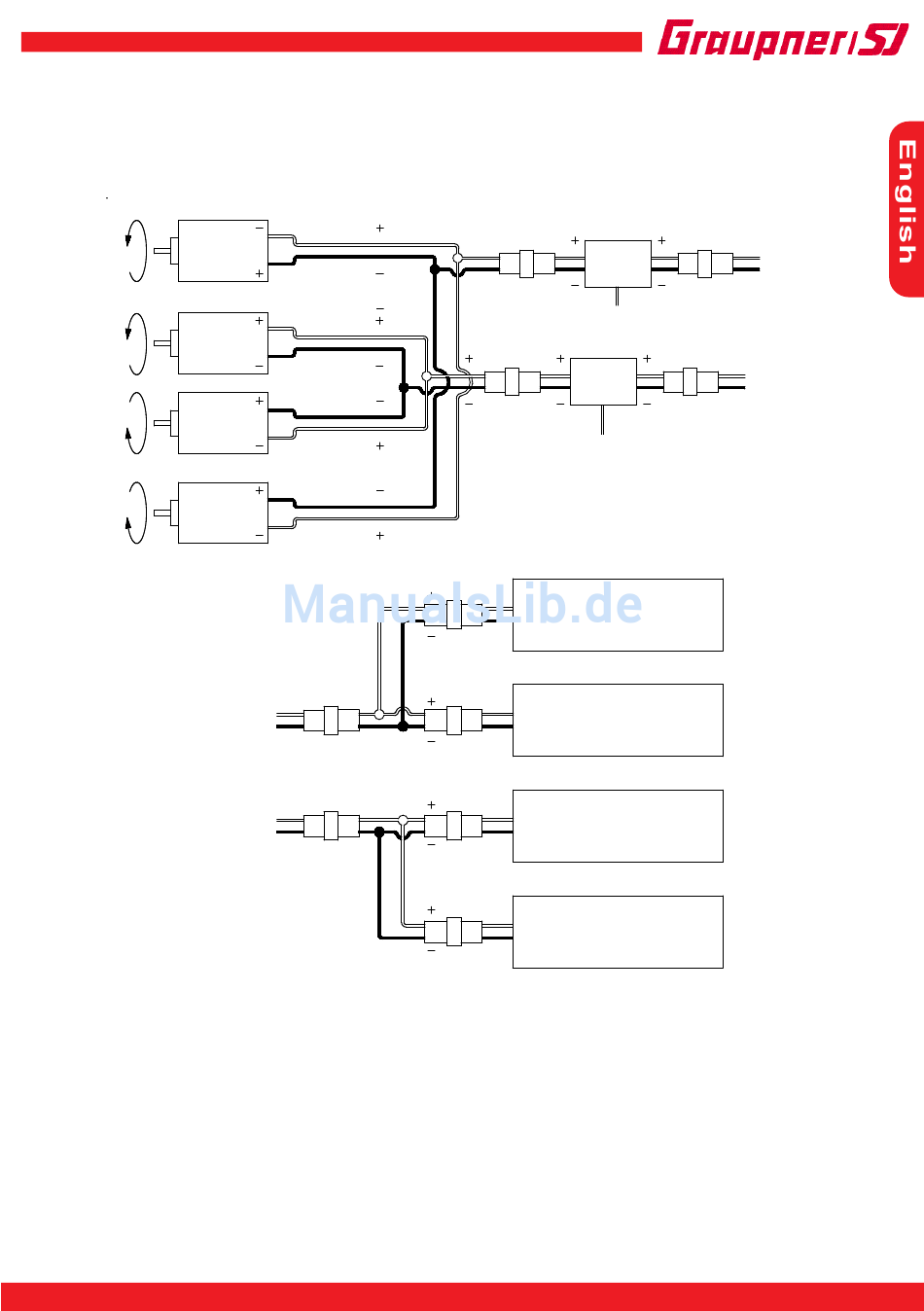

The outer motors are connected in parallel and attached in opposite directions. Please act according to the
circuit diagram. Pay attention to the direction of rotation of the motors when the battery is connected, the
drives should rotate so that the model would go forward.
Speed Controller 1
Speed controller 2
Install the battery with velcro in the model. NOTE: Due to the velcro you can change the position of the batte-
ries easy to achieve the optimum trim. The batteries are typically placed in front of the block of four engines.
Place the total weight approx 4kg heavy ballast in the hull. Are suitable for this particular flat sections of steel
or lead. Trim the model and fix the ballast weights with adhesive. TIP: If you mount the ballast weights with
Velcro, you can find it if required (eg ease of transport). TIP: To re-retrieve the correct position of the weights
without the trims, you should mark the position with waterproof ink pen.
Mount the receiver under the cover and the speed controller left and right to the hull by means of Velcro.
Motor
Motor
Motor
Motor
Graupner/SJ USS NIMITZ
Speed controller 2
Speed controller 1
Drive battery
Drive battery
Drive battery
Drive battery
