3.2.2

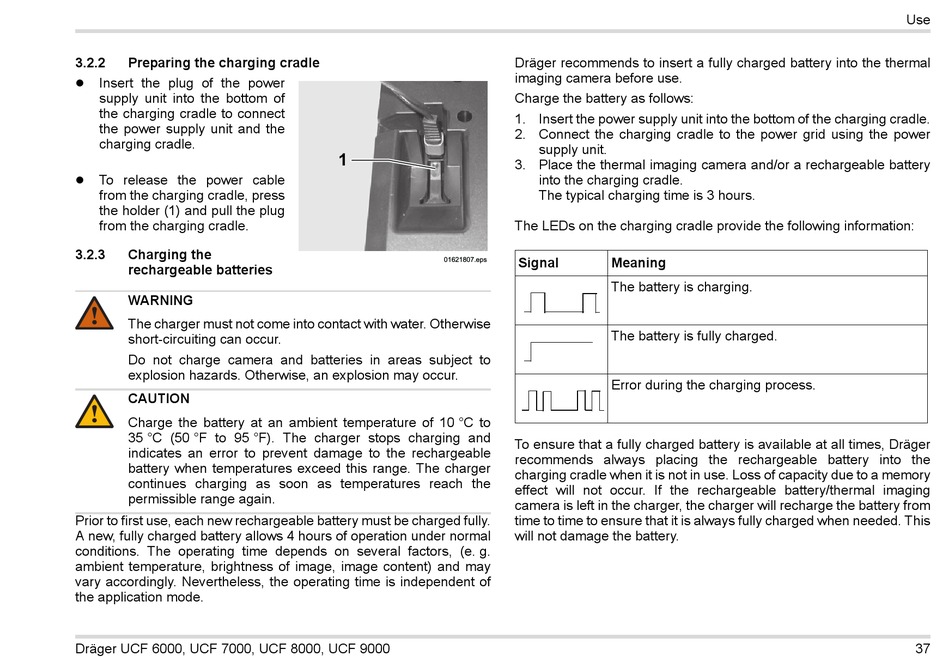

Preparing the charging cradle

Insert the plug of the power

supply unit into the bottom of
the charging cradle to connect
the power supply unit and the
charging cradle.
To release the power cable

from the charging cradle, press
the holder (1) and pull the plug
from the charging cradle.
3.2.3 Charging the
rechargeable batteries
WARNING
!
The charger must not come into contact with water. Otherwise
short-circuiting can occur.
Do not charge camera and batteries in areas subject to
explosion hazards. Otherwise, an explosion may occur.
CAUTION
!
Charge the battery at an ambient temperature of 10 °C to
35 °C (50 °F to 95 °F). The charger stops charging and
indicates an error to prevent damage to the rechargeable
battery when temperatures exceed this range. The charger
continues charging as soon as temperatures reach the
permissible range again.
Prior to first use, each new rechargeable battery must be charged fully.
A new, fully charged battery allows 4 hours of operation under normal
conditions. The operating time depends on several factors, (e. g.
ambient temperature, brightness of image, image content) and may
vary accordingly. Nevertheless, the operating time is independent of
the application mode.
Dräger UCF 6000, UCF 7000, UCF 8000, UCF 9000
Dräger recommends to insert a fully charged battery into the thermal
imaging camera before use.
Charge the battery as follows:
1. Insert the power supply unit into the bottom of the charging cradle.
2. Connect the charging cradle to the power grid using the power
1
3. Place the thermal imaging camera and/or a rechargeable battery
The LEDs on the charging cradle provide the following information:
01621807.eps
To ensure that a fully charged battery is available at all times, Dräger
recommends always placing the rechargeable battery into the
charging cradle when it is not in use. Loss of capacity due to a memory
effect will not occur. If the rechargeable battery/thermal imaging
camera is left in the charger, the charger will recharge the battery from
time to time to ensure that it is always fully charged when needed. This
will not damage the battery.
supply unit.
into the charging cradle.
The typical charging time is 3 hours.
Signal Meaning
The battery is charging.
The battery is fully charged.
Error during the charging process.
Use
