WHEN CONNECTED TO A VCR NOT EQUIPPED WITH A
JLIP JACK
When using a VCR not equipped with a JLIP jack, set your VCR brand using the remote control
unit, then perform editing using the remote control.

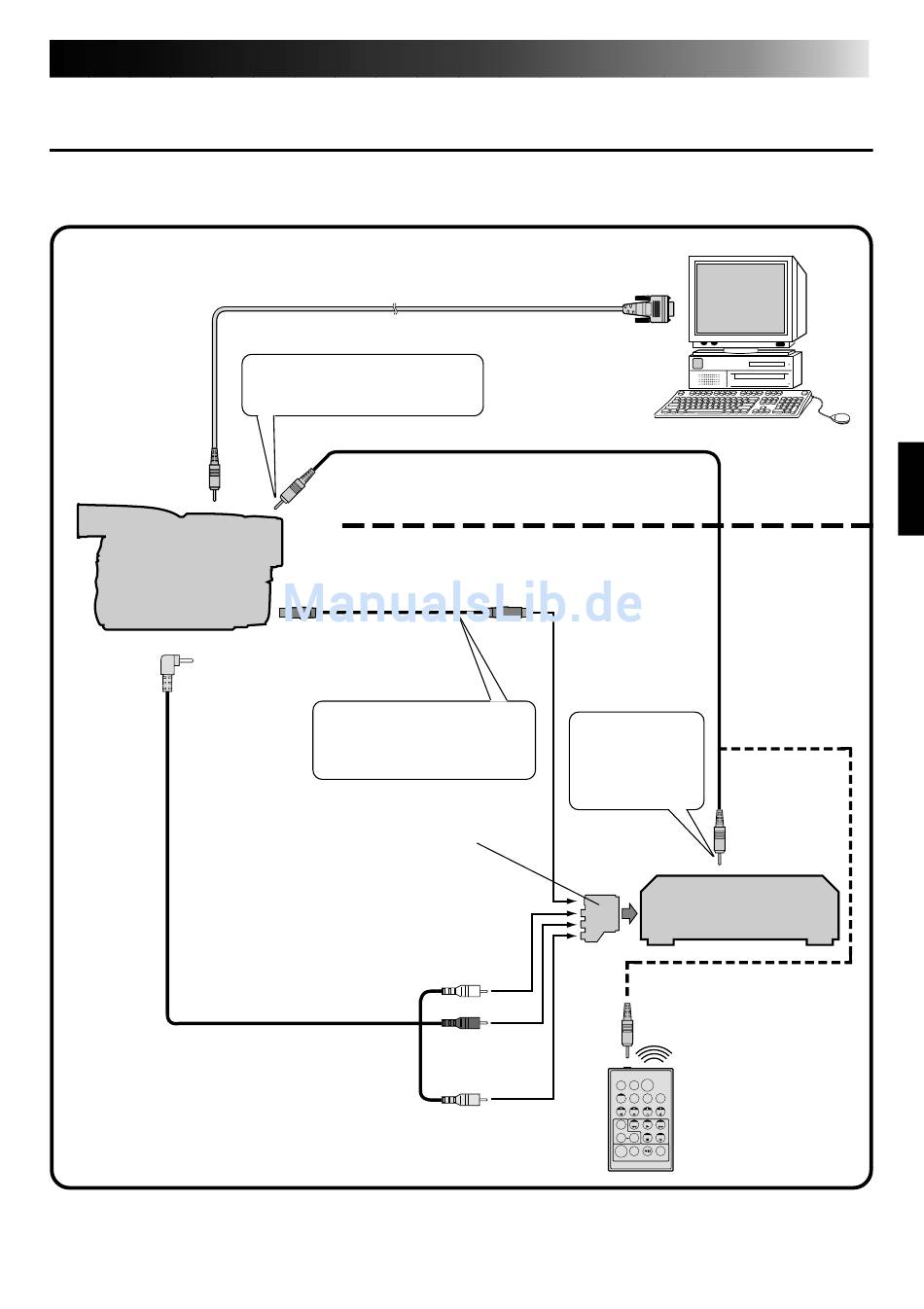

When JLIP Video Capture is used:
To PC jack
Video Camera
To AV jack
AUDIO/VIDEO cable
PC connection cable
Use the plug which has three
yellow rings around the pin.
To JLIP jack
When JLIP Video Producer is used:
S-VIDEO cable
To S OUT jack
Connect this if the video
source unit has an S-Video
input jack.
If your VCR has a SCART
connector, use the cable
adapter.
To COM port
(RS-232C)
To S-VIDEO
input jack
Use the plug
which has one
black ring
around the pin.
White to
AUDIO L
Red to
AUDIO R
Yellow to
VIDEO
PC
Editing cable
To remote
pause jack
VCR
(Recording deck)
Connect here if the
recording deck doesn't
have a remote pause jack.
T W
Remote control unit
