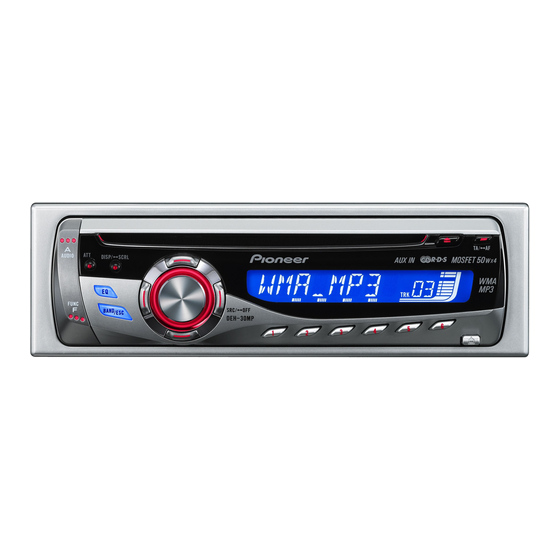

Pioneer DEH-30MP Installationsanleitung

DEH-30MP
This product conforms to new cord colors.
Los colores de los cables de este producto se confor-
man con un nuevo código de colores.
Dieses Produkt entspricht den neuen Kabelfarben.
Le code de couleur des câbles utilisé pour ce produit
est nouveau.
Questo prodotto è conforme ai nuovi codici colori.
De kleuren van de snoeren van dit toestel zijn gewijzigd.
чÌÌÓ ÛÒÚÓÈÒÚ‚Ó ÒÓÓÚ‚ÂÚÒÚ‚ÛÂÚ ÌÓ‚˚Ï
Ú·ӂ‡ÌËflÏ Í ˆ‚ÂÚÛ ÔÓ‚Ó‰Ó‚.
Printed in China
Imprimé en Chine
<YRD5059-A/U> EW <KMMNX> <05J00000>
Installation
Note: DIN Front-mount
• Before making a final installation of the unit,
temporarily connect the wiring to confirm that the
Installation with the rubber bush
connections are correct and the system works
properly.
After inserting the holder into the dashboard,
• Use only the parts included with the unit to then select the appropriate tabs according to the
ensure proper installation. The use of thickness of the dashboard material and bend
unauthorized parts can cause malfunctions. them.
• Consult with your nearest dealer if installation (Install as firmly as possible using the top and
requires the drilling of holes or other bottom tabs. To secure, bend the tabs 90 degrees.)
modifications of the vehicle.
• Install the unit where it does not get in the
Holder
driver's way and cannot injure the passenger if Dashboard
there is a sudden stop, like an emergency stop. 182
• The semiconductor laser will be damaged if it
53 Rubber bush
Screw
overheats, so don't install the unit anywhere hot
— for instance, near a heater outlet.
• If installation angle exceeds 60° from horizontal,
the unit might not give its optimum performance.
Removing the Unit
60° To remove the frame, extend top and bottom of
the frame outwards in order to unlock it. (When
reattaching the frame, point the side with a
groove downwards and attach it.)
• It becomes easy to remove the frame if the
DIN Front/Rear-mount
front panel is released.
This unit can be properly installed either from
"Front" (conventional DIN Front-mount) or
Frame
"Rear" (DIN Rear-mount installation, utilizing
threaded screw holes at the sides of unit chassis).
For details, refer to the following illustrated
installation methods.
Insert the supplied extraction keys into the unit,
as shown in the figure, until they click into place.
Keeping the keys pressed against the sides of the
unit, pull the unit out.
<ENGLISH>
DIN Rear-mount Fixing the front panel
If you do not operate the removing and attaching
Installation using the screw holes on the
the front panel function, use the supplied fixing
side of the unit
screws to fix the front panel to this unit.
1. Remove the frame.
1. Fix the front panel to the unit using
To remove the frame, extend top and bottom of fixing screws.
the frame outwards in order to unlock it. (When
reattaching the frame, point the side with a
groove downwards and attach it.)
• It becomes easy to remove the frame if the
front panel is released.
Fixing screw
Frame
2. Fastening the unit to the factory
radio mounting bracket.
Select a position where the screw holes of the
bracket and the screw holes of the head unit
become aligned (are fitted) and tighten the screws
at 2 places on each side. Use either truss screws
(5 × 8 mm) or flush surface screws (5 × 9 mm),
depending on the shape of the screw holes in the
bracket.
Screw
Dashboard or
Console
Factory radio
mounting bracket
