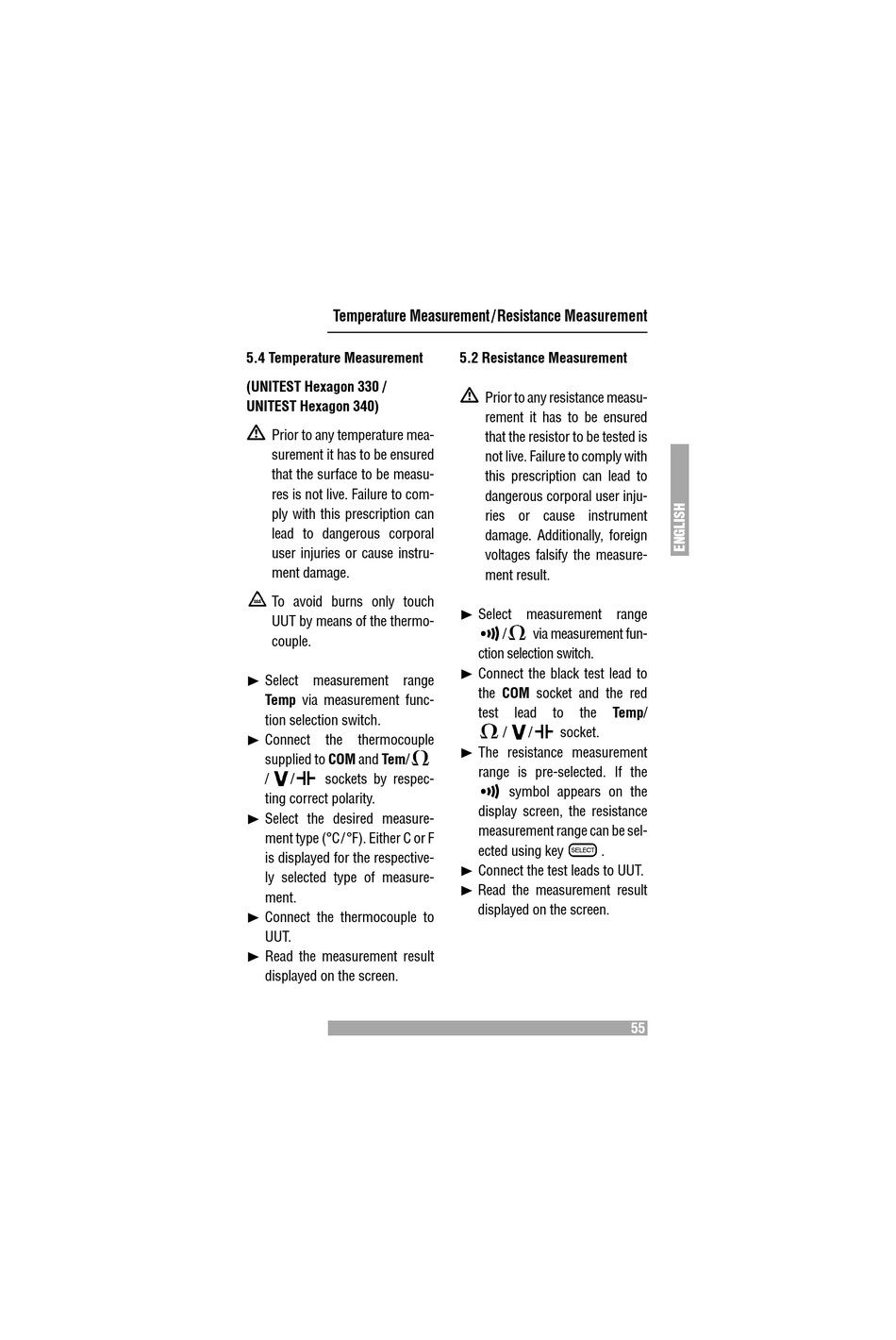

Temperature Measurement / Resistance Measurement

5.4 Temperature Measurement

(UNITEST Hexagon 330 /
UNITEST Hexagon 340)
Prior to any temperature mea-
surement it has to be ensured
that the surface to be measu-
res is not live. Failure to com-
ply with this prescription can
lead to dangerous corporal
user injuries or cause instru-
ment damage.
To avoid burns only touch
UUT by means of the thermo-
couple.
❿ Select measurement range
Temp via measurement func-
tion selection switch.
❿ Connect the thermocouple
supplied to COM and Tem/
/ / sockets by respec-
ting correct polarity.
❿ Select the desired measure-
ment type (°C/°F). Either C or F
is displayed for the respective-
ly selected type of measure-
ment.
❿ Connect the thermocouple to
UUT.
❿ Read the measurement result
displayed on the screen.

5.2 Resistance Measurement

Prior to any resistance measu-
rement it has to be ensured
that the resistor to be tested is
not live. Failure to comply with
this prescription can lead to
dangerous corporal user inju-
ries or cause instrument
damage. Additionally, foreign
voltages falsify the measure-
ment result.
❿ Select measurement range
/ via measurement fun-
ction selection switch.
❿ Connect the black test lead to
the COM socket and the red
test lead to the Temp/
/ / socket.
❿ The resistance measurement
range is pre-selected. If the
symbol appears on the
display screen, the resistance
measurement range can be sel-
ected using key .
❿ Connect the test leads to UUT.
❿ Read the measurement result
displayed on the screen.
