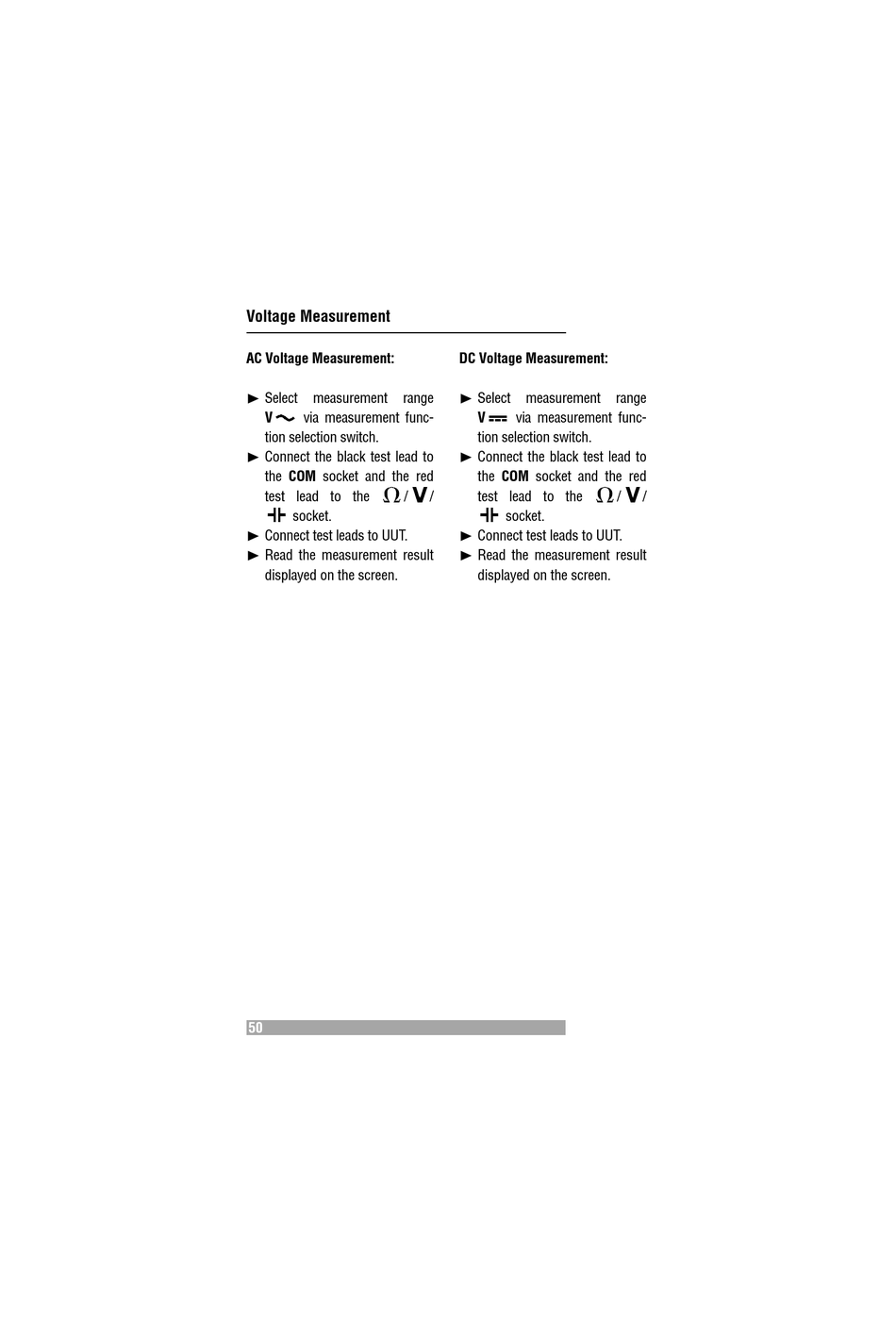

Voltage Measurement
AC Voltage Measurement:
❿ Select measurement range
V via measurement func-
tion selection switch.
❿ Connect the black test lead to
the COM socket and the red
test lead to the /
socket.
❿ Connect test leads to UUT.
❿ Read the measurement result
displayed on the screen.
50
DC Voltage Measurement:
❿ Select measurement
V via measurement func-
tion selection switch.
❿ Connect the black test lead to
the COM socket and the red
/ test lead to the
socket.
❿ Connect test leads to UUT.
❿ Read the measurement result
displayed on the screen.
range
/ /
