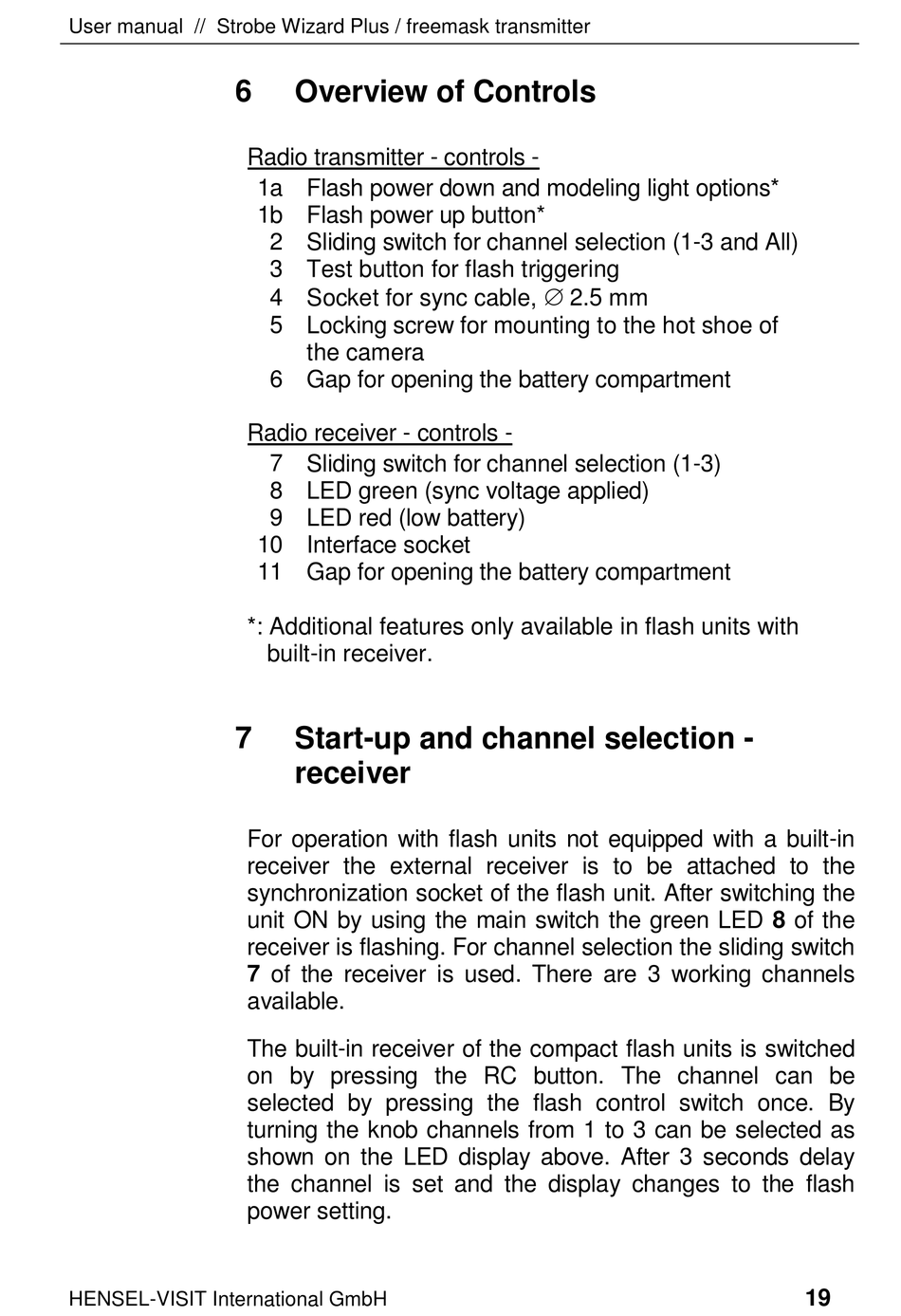

Overview of Controls

Radio transmitter - controls -
1a Flash power down and modeling light options*
1b Flash power up button*
2 Sliding switch for channel selection (1-3 and All)
3 Test button for flash triggering
4 Socket for sync cable,  2.5 mm
5 Locking screw for mounting to the hot shoe of
the camera
6 Gap for opening the battery compartment
Radio receiver - controls -
7 Sliding switch for channel selection (1-3)
8 LED green (sync voltage applied)
9 LED red (low battery)
10 Interface socket
11 Gap for opening the battery compartment
*: Additional features only available in flash units with
built-in receiver.
Start-up and channel selection -
receiver
For operation with flash units not equipped with a built-in
receiver the external receiver is to be attached to the
synchronization socket of the flash unit. After switching the
unit ON by using the main switch the green LED 8 of the
receiver is flashing. For channel selection the sliding switch
7 of the receiver is used. There are 3 working channels
available.
The built-in receiver of the compact flash units is switched
on by pressing the RC button. The channel can be
selected by pressing the flash control switch once. By
turning the knob channels from 1 to 3 can be selected as
shown on the LED display above. After 3 seconds delay
the channel is set and the display changes to the flash
power setting.
