Dimensions - Baumer PA408 Betriebsanleitung

PA408
38
Technical data - mechanical design
Ambient temperature
Storing temperature
Relative humidity
Connection
Core cross-section
Protection DIN EN 60529
Operation / keypad
Housing type
Dimensions W x H x L
Mounting
Material
Weight approx.

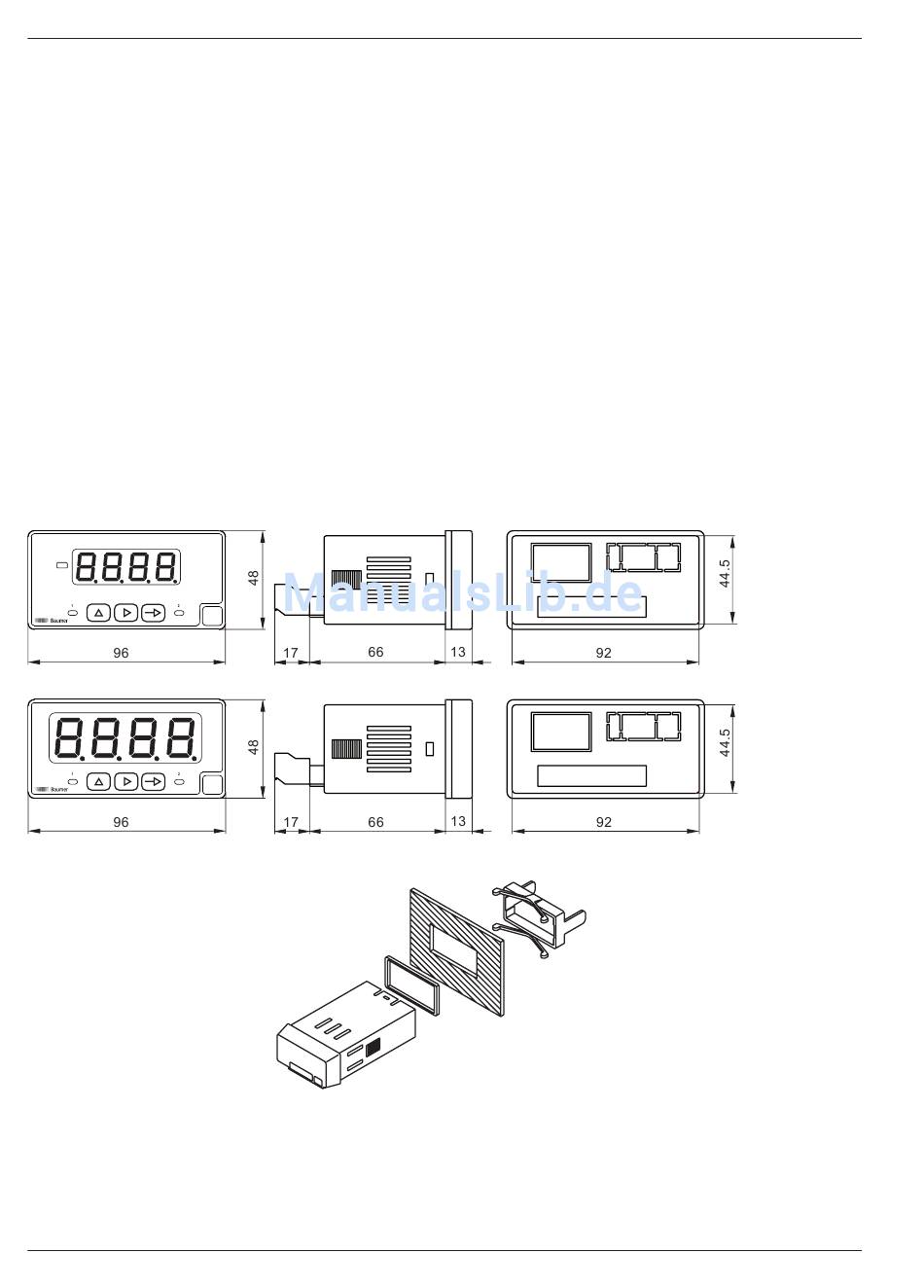

7.1 Dimensions

PA408 - without clip frame
PA408 - clip frame mounting
www.baumer.com
-10...+60 °C
-25...+85 °C
95 % non-condensing
Spring-loaded terminal connector,
detachable
1 mm² (grid 5.08)
2.5 mm (grid 7 .62)
2
IP 65 (face)
Membrane with softkeys
Built-in housing
96 x 48 x 66 mm
Front panel installation by clip frame
Housing: Polycarbonate, UL94V-0
150 g
