2.3 Limit outputs

The device provides 2 relay limit outputs. Output trigger either at ≥
displayed value or ≤ limit is defined by HIGH or LOW configuration.
The outputs can be configured as time delay or hysteresis.

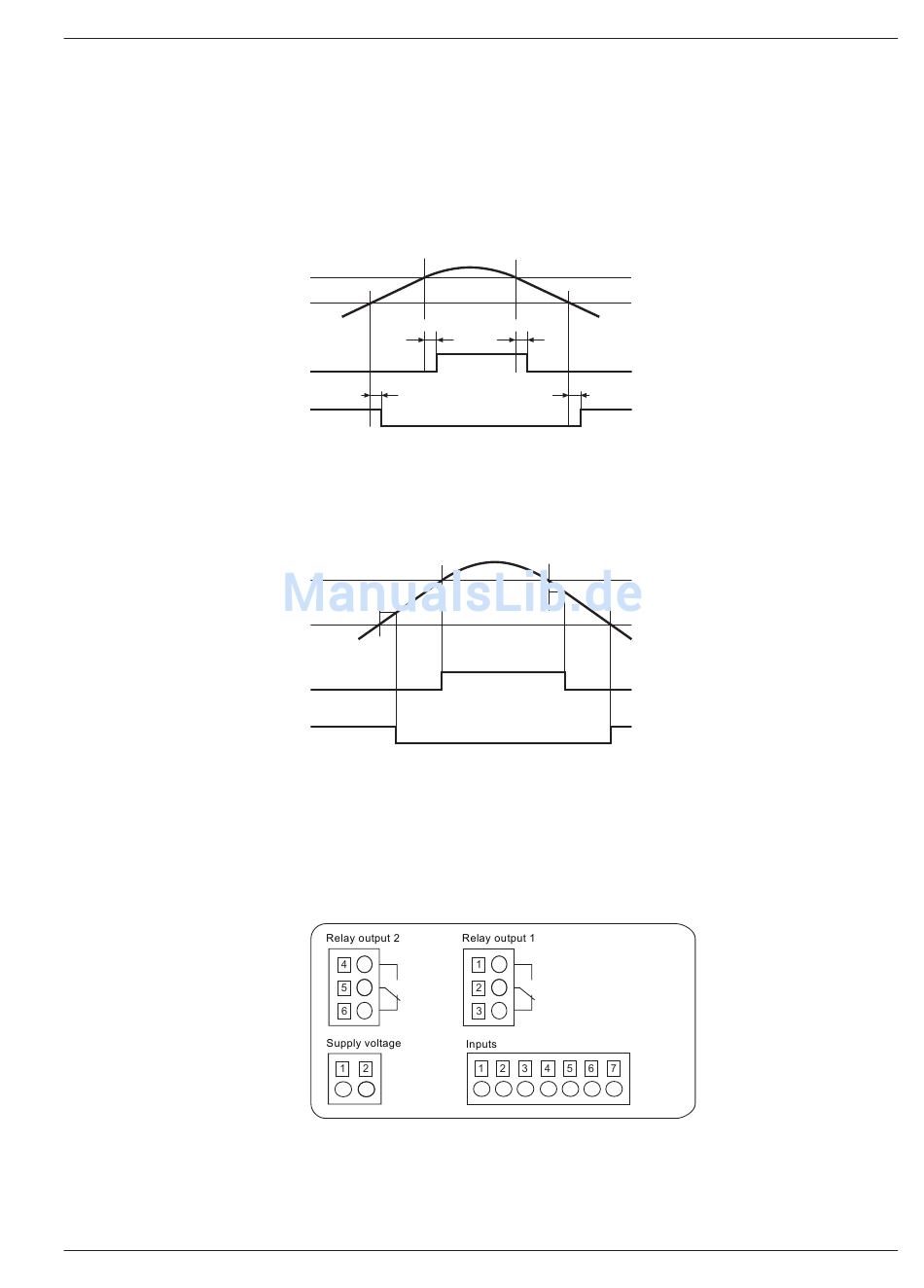

Limit outputs as time delay
Time delay parameterization is within the range from 0 to 99,9 s and
will be effective both at limit output power on and off.
Limit 1
Limit 2
Delay Delay
Relay 1 =
HIGH
Relay 2 = Delay Delay
LOW
Asymmetrical hysteresis
Hysteresis is configured in display units from 0 to 9999 and only ef-
fective at limit output power off.
Limit 1
Hysteresis
Limit 2
Hysteresis
Relay 1 =
HIGH
Relay 2 =
LOW

3 Connection

This chapter is about terminal assignment and will present some wi-
ring examples.

3.1 Terminal assignment
