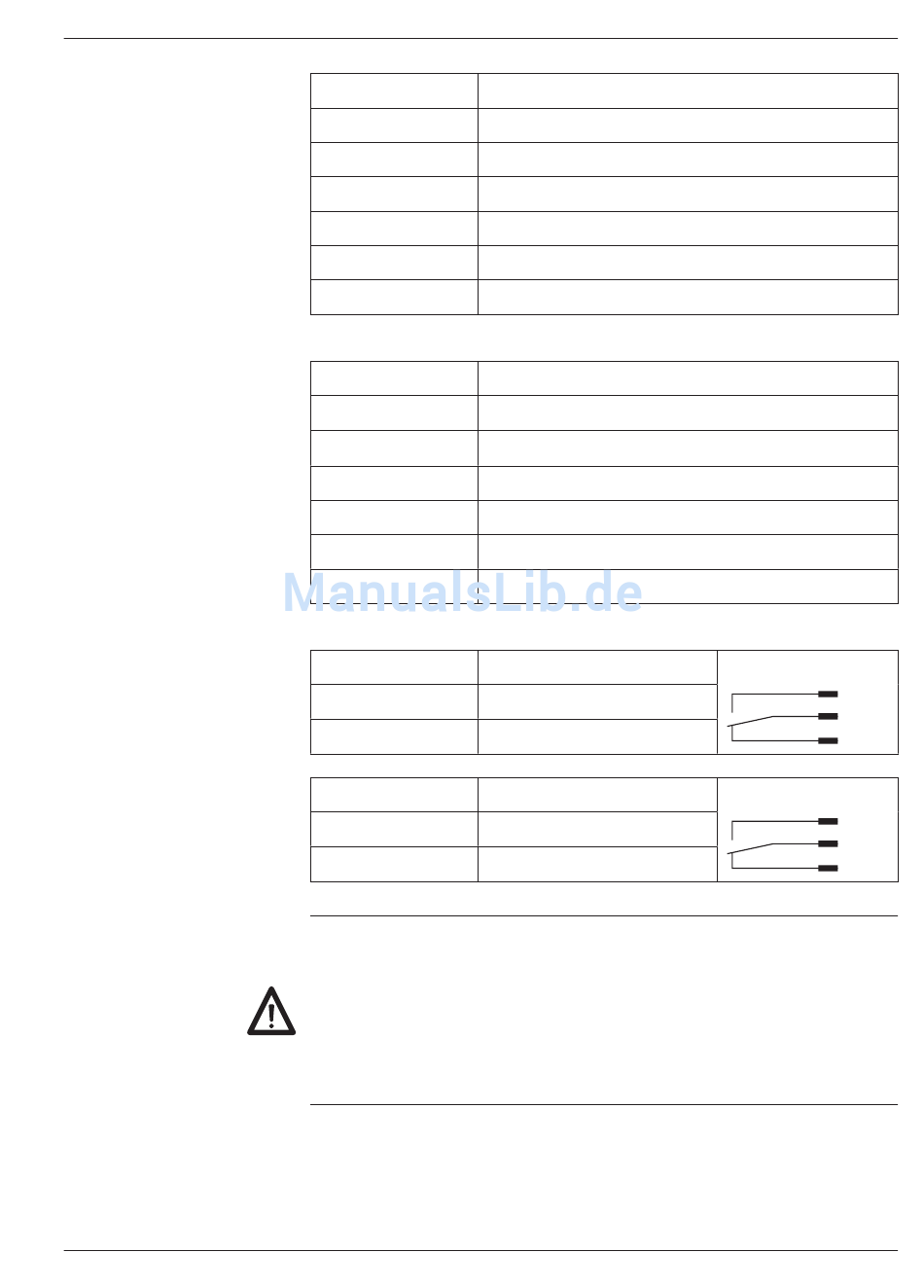

Baumer PA408 Betriebsanleitung Seite 27

Input potentiometer
Connector 1
Connector 2
Connector 3
Connector 4
Connector 5
Connector 6
Connector 7
Input resistance
Connector 1
Connector 2
Connector 3
Connector 4
Connector 5
Connector 6
Connector 7
Limit outputs/2 relay
Connector 1
Connector 2
Connector 3
Connector 4
Connector 5
Connector 6
Litz contact only by means of connector sleeves with insulating
enclosures for reasons of shock protection according to EN 61010.
Do not otherwise assign contacts that have been left unassigned
ex factory. We recommend to shield all sensor terminal leads and to
ground the shield on one side. Shields on both sides are recommen-
ded in case of RF interference or in case of equipotential bonding
over long distances. Sensor leads should not be in the same phase
winding as mains supply and output contact leads.
www.baumer.com
Potentiometer -
Potentiometer Out
Potentiometer +
NC
NC
NC
NC
Common
IN 999,9...9999Ω
IN 50kΩ
NC
NC
NC
NC
Normally closed
Changeover contact
Normally open
Normally closed
Changeover contact
Normally open
PA408
Relay 1
Relay 2
