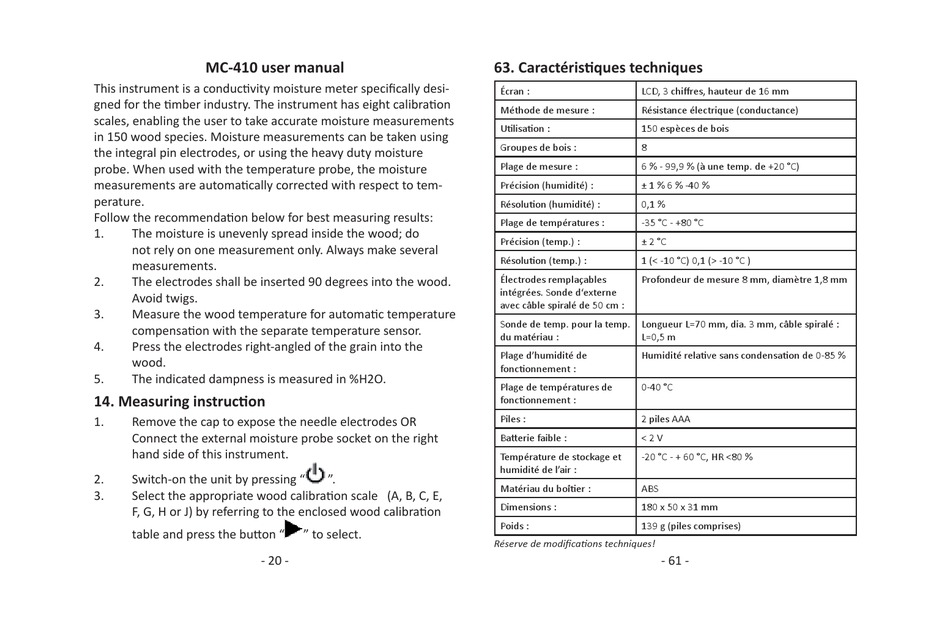

MC-410 user manual
This instrument is a conduc vity moisture meter specifi cally desi-
gned for the mber industry. The instrument has eight calibra on
scales, enabling the user to take accurate moisture measurements
in 150 wood species. Moisture measurements can be taken using
the integral pin electrodes, or using the heavy duty moisture
probe. When used with the temperature probe, the moisture
measurements are automa cally corrected with respect to tem-
perature.
Follow the recommenda on below for best measuring results:
1.
The moisture is unevenly spread inside the wood; do
not rely on one measurement only. Always make several
measurements.
2.
The electrodes shall be inserted 90 degrees into the wood.
Avoid twigs.
3.
Measure the wood temperature for automa c temperature
compensa on with the separate temperature sensor.
4.
Press the electrodes right-angled of the grain into the
wood.
5.
The indicated dampness is measured in %H2O.

14. Measuring instruc on

1.
Remove the cap to expose the needle electrodes OR
Connect the external moisture probe socket on the right
hand side of this instrument.
2.
Switch-on the unit by pressing "
3.
Select the appropriate wood calibra on scale (A, B, C, E,
F, G, H or J) by referring to the enclosed wood calibra on
table and press the bu on "
- 20 -
".
" to select.
63. Caractéris ques techniques
Écran :
LCD, 3 chiff res, hauteur de 16 mm
Méthode de mesure :
Résistance électrique (conductance)
U lisa on :
150 espèces de bois
Groupes de bois :
8
Plage de mesure :
6 % - 99,9 % (à une temp. de +20 °C)
Précision (humidité) :
± 1 % 6 % -40 %
Résolu on (humidité) :
0,1 %
Plage de températures :
-35 °C - +80 °C
Précision (temp.) :
± 2 °C
Résolu on (temp.) :
1 (< -10 °C) 0,1 (> -10 °C )
Électrodes remplaçables
Profondeur de mesure 8 mm, diamètre 1,8 mm
intégrées. Sonde d'externe
avec câble spiralé de 50 cm :
Sonde de temp. pour la temp.
Longueur L=70 mm, dia. 3 mm, câble spiralé :
du matériau :
L=0,5 m
Plage d'humidité de
Humidité rela ve sans condensa on de 0-85 %
fonc onnement :
Plage de températures de
0-40 °C
fonc onnement :
Piles :
2 piles AAA
Ba erie faible :
< 2 V
Température de stockage et
-20 °C - + 60 °C, HR <80 %
humidité de l'air :
Matériau du boî er :
ABS
Dimensions :
180 x 50 x 31 mm
Poids :
139 g (piles comprises)
Réserve de modifi ca ons techniques!
- 61 -
