• Connection sockets for this DVD receiver are located
on the rear of the device. Please read the instructions
of the respective device manufacturer carefully and
follow these instructions when connecting video and
audio machines to this DVD receiver.
• Only when all connections have been carried out cor-
rectly should the device be connected to the power
supply.
• The red socket (marked with an R) is used for
connecting the right-hand channel. The white socket
(marked with an L) is used to connect the left-hand
channel. The yellow socket is for the video connec-
tion. Check that all connections are tight. Incorrect
connections may cause noise, interference or even
damage to the device.
40
5....-05-DVD4606_GB 40

CONNECTING DEVICES

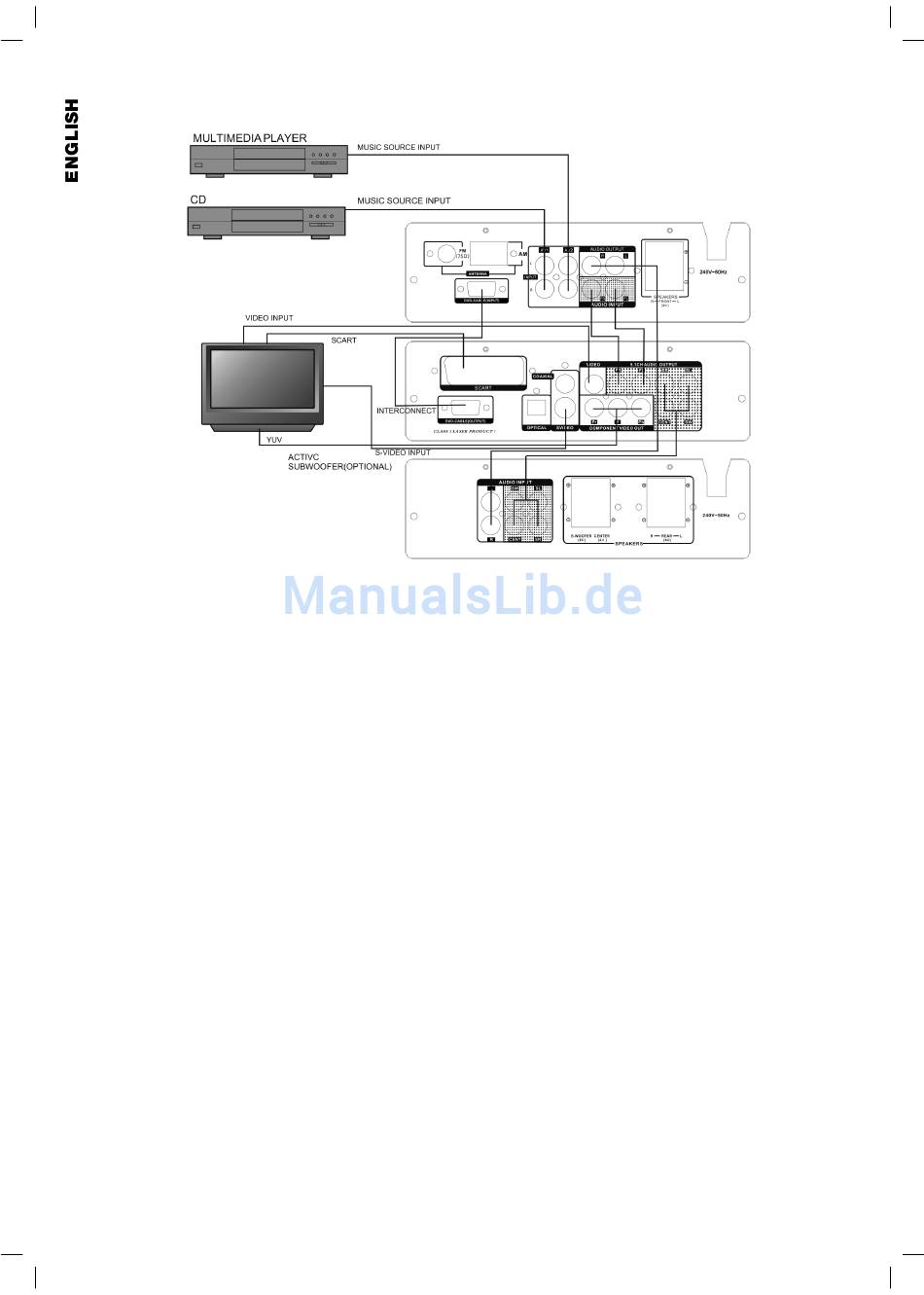

• Connect the individual components together as
follows:
1. Connect the DVD CABLE INPUT socket on the
receiver with the DVD CABLE OUTPUT socket on
the DVD drive.
2. It is also necessary to connect the AUDIO
OUTPUT socket (R/L) on the receiver with the
AUDIO INPUT socket (R/L) on the surround
amplifi er.
3. Now connect the 5.1 AUDIO OUTPUT socket
(FR/FL) of the DVD drive with the AUDIO INPUT
socket of the receiver.
4. Finally connect the four 5.1 AUDIO OUTPUT
sockets (SR/SL/SW/CENT) to the corresponding
AUDIO INPUT sockets on the surround amplifi er.
• The AV cable must not be connected to other cables
such as power or loudspeaker cables as this may
cause the device to malfunction.
