DIP-Schalter Schoko-Jet III

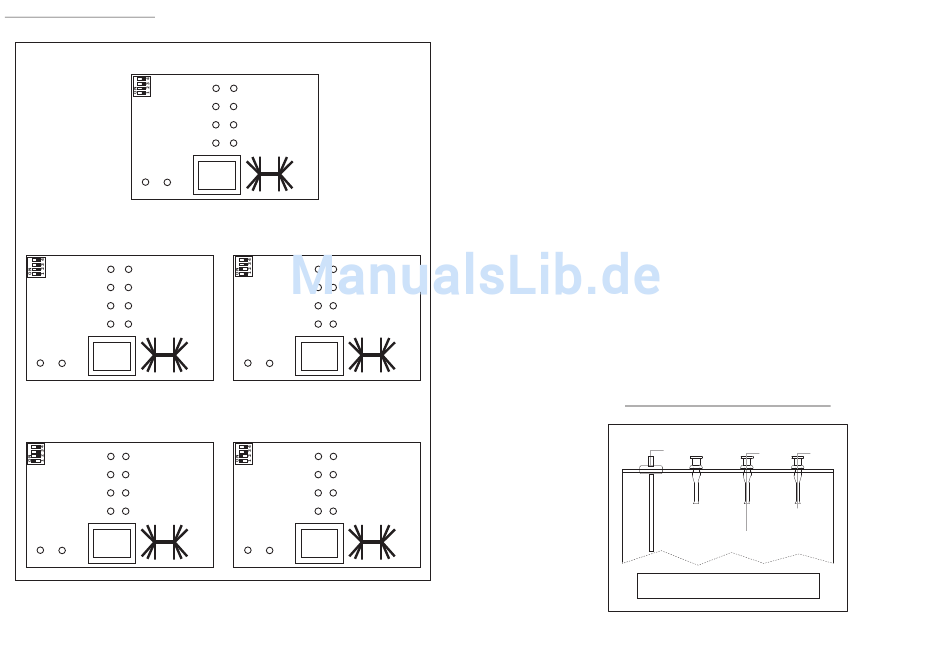

Übersicht DIP-Schalterstellung
Temp.
LED
Heizung
Belegung Programm-Typ 0
X
Wasser [4,0-12,0]
X
Schnecke1 [3,5-11,5]
X
Vorlauf [0-3]
X
Faktor [1-1,8]
Temp.
LED
Heizung
Belegung Programm-Typ 2
Wasser [4,0-12,0] Wasser Prod.2 [4,0-12,0]
Schnecke1 [3,5-11,5] Schnecke2 [3,5-11,5]
Vorlauf 1+2 [0-3] Wasser Mischprod.[4-12]
Faktor [1-10] Verhältnis S1 zu S2
Temp.
LED
Heizung
P2 P1
P4 P3
P6 P5
P8 P7
Belegung Programm-Typ 1
Wasser [4,0-12,0] Wasser Prod.2 [4,0-12,0]
Schnecke1 [3,5-11,5] Schnecke2 [3,5-11,5]
Vorlauf 1+2 [0-3] Wasser Mischprod.[4-12]
Faktor [1-10] Verhältnis S1 zu S2
Temp.
LED
Heizung
Belegung Programm-Typ 3
Wasser [4,0-12,0] Wasser Prod.2 [4,0-12,0]
Schnecke1 [3,5-11,5] Schnecke2 [3,5-11,5]
Vorlauf 1+2 [0-3] Wasser Mischprod.[4-12]
Faktor [1-10] Verhältnis S1 zu S2
Temp.
LED
Heizung
9
5. After the warm up of the machine when the dispenser is operational, press the
cleaning key 20 times so the boiler is rinsed. After the rinsing cycle fastened the boiler
lid and the back board. Now the dispenser is ready for use again.
INFORMATION:
If you don't use the dispenser for a while or during vacation, drop all the water and
empty the product boxes. Before using the dispenser again (reconnection) its
necessary to press the cleaning key 20 times.
The chocolate-dispenser is low maintenance. Nevertheless, if problems occur, call
this company
COFFEE QUEEN presso!mat GmbH
Gewerbestrasse 3
D-99880 Laucha
phone: +49 36 22 - 20 87 - 0
fax: +49 36 22 - 20 87 - 22
or your after sale service. We help you to avoid downtimes.
Connections of the fill level sensors
heater
free
position behind the appliance
white brown
BOILER
