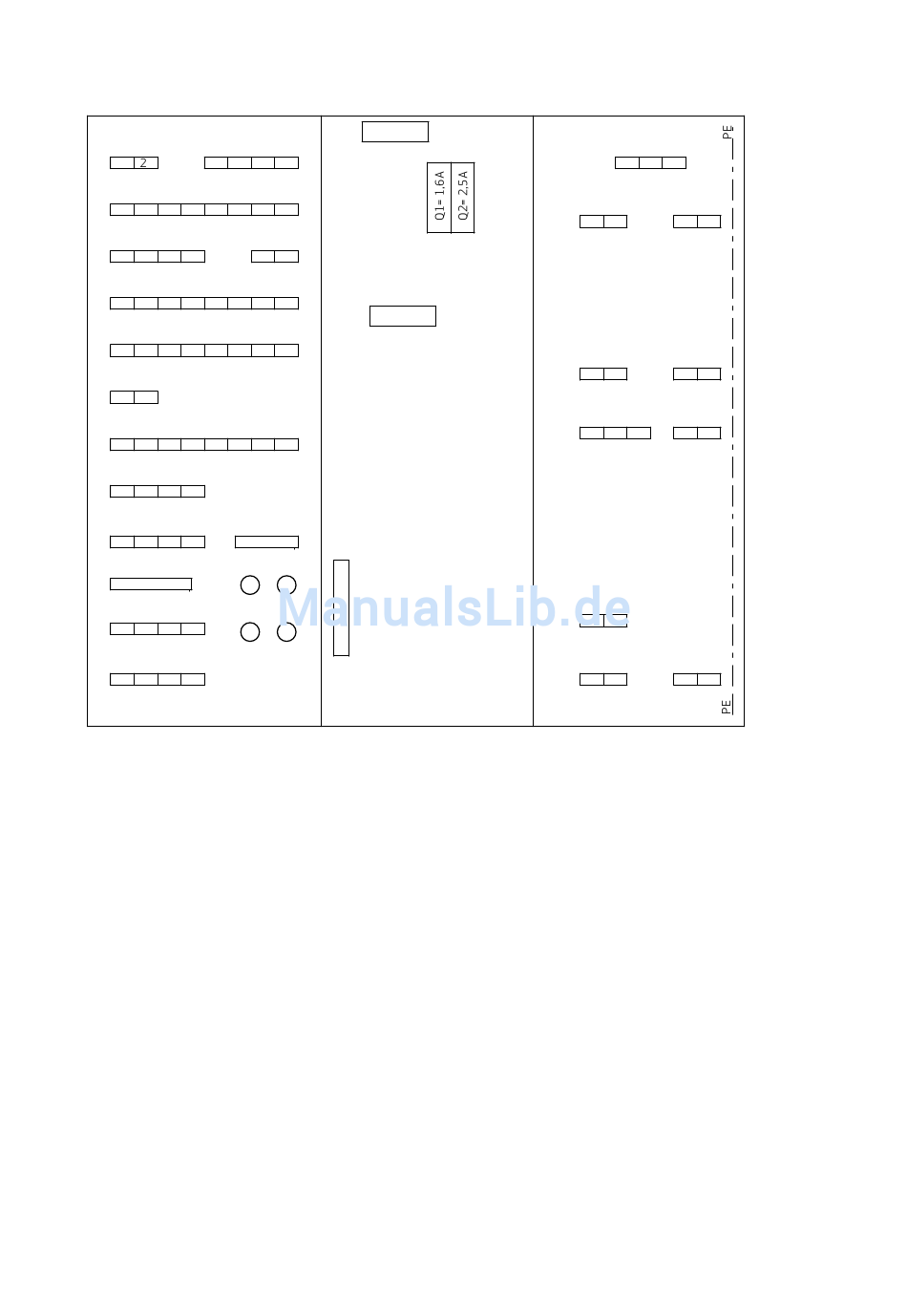

SCHALTPLAN – OPT260
L1
1
L3
1
2
3
L4
1
2
3
L6
1
2
3
L7
1
2
3
L8
1
2
L10
1
2
3
L11
1
2
3
L13
1
2
3
L15
1
1
2
2
3
3
4
4
L16
1
1
2
2
3
3
L17
1
1
2
2
3
3
A = LED Flash - Power on
A = Blinkende LED – Strom ein
B = LED Flash - Startup
B = Blinkende LED – Start
D = LED Flash - Loads the program from sd card
D = Blinkende LED – Programm von SD-Karte wird geladen
Q = Fuse
Q = Sicherung
L1 = Potential free input for optional:
L1 = Potenzialfreier Eingang für optionale Einheit:
Humidistat, Extractor hood ,CO2
Feuchtigkeitsregler, Dunstabzugshaube, CO2
L3 = Sensors T1,T3,T4,T7
L3 = Fühler T1, T3, T4, T7
L4 = Humidity sensor P1
L4 = Feuchtigkeitsfühler P1
L5 = Room sensor T2 (optional)
L5 = Raumfühler T2 (optional)
L6 = Option 1 & 2, Sensors T8,T9
L6 = Option 1 und 2, Fühler T8, T9
L7 = Option 1
L7 = Option 1
L8 = External stop
L8 = Externer Stopp
L10 = Modulating Pre / Reheating & Option 2
L10 = Modulierende Vor-/Nachheizung und Option 2
L11 = 0-10V Motorvalve Reheating
L11 = 0-10 V Motorventil Nachheizung
0-10V Belimo LM230ASR bypass
0-10 V Belimo LM230ASR Bypass
L13 = Option 1
L13 = Option 1
L14 = Data logger socket
L14 = Anschluss für Datalogger
L15 = Programming socket
L15 = Programmieranschluss
L16 = Modbus
L16 = Modbus
L17 = 0-10V extract air fan and
L17 = 0-10 V Abluftventilator und
0-10V supply air fan
0-10 V Zuluftventilator
L2
1
2
3
4
4
5
6
7
8
L5
4
1
2
4
5
6
7
8
4
5
6
7
8
4
5
6
7
8
4
L14
4
1
1
2
2
3
3
4
4
A
B
5
5
C
D
4
4
SD
4
4
Q3= 0,5A
Q4= 0,5A
Q1= H8,H14,H16,H17
Q2= H6,H7,H9
Q3= L1-L17
Q4= L1-L17
ES960CC
H1 =
Mains connection 230 VAC
H1 =
Netzanschluss 230 V WS
H2 =
(R2) Electric Reheater 230VAC
H2 =
(R2) Elektrisches Nachheizregister 230 V WS
H3 =
(R3) Electric Preheater 230VAC
H3 =
(R3) Elektrisches Vorheizregister 230 V WS
H2, H3 = Max. load total 1800W
H2, H3 = Max. Gesamtlast 1800 W
H6 =
(R10) Motorvalve Reheating,
H6 =
(R10) Motorventil Nachheizung,
Belimo LM230ASR 230VAC
Belimo LM230ASR 230 V WS
H7 =
(R10) Fan, extract air 230VAC
H7 =
(R10) Ventilator, Abluft 230 V WS
H8 =
(R12) Saia-UCK ON/OFF Bypass 2x230VAC
H8 =
(R12) Saia-UCK EIN/AUS-Bypass 2 x 230 V WS
H9 =
(R10) Fan, supply air 230VAC
H9 =
(R10) Ventilator, Zuluft 230 V WS
H14 =
H14 =
(R6) Belimo CM230-F-R EIN/AUS-Bypass 230 V WS
(R6) Belimo CM230-F-R ON/OFF Bypass 230VAC
H16 =
H16 =
(R8) Belimo CM230-F-R EIN/AUS-Bypass 230 V WS
(R8) Belimo CM230-F-R ON/OFF Bypass 230VAC
H17 =
(R9) AUX relay 230VAC
H17 =
(R9) Hilfsrelais 230 V WS
H1
1
2
H2
H3
1
2
1
2
H6
H7
1
2
1
2
H8
H9
1
2
3
1
2
H14
1
2
H16
H17
1
2
1
2
15
