The teach button is located at the rear of the elec-
tronics unit. This button is located within a recess so
that it cannot be pressed accidentally.

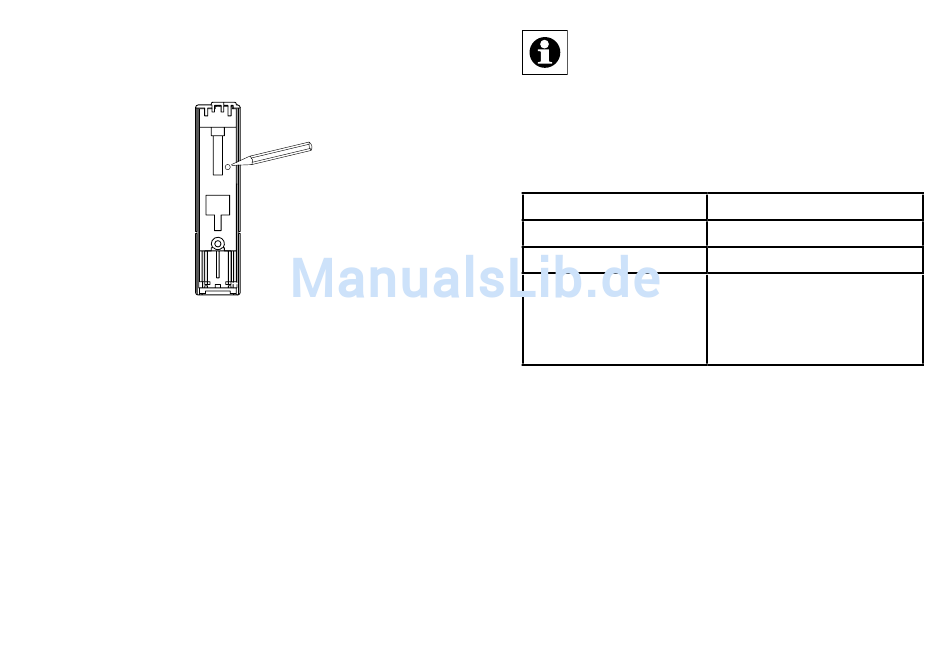

To actuate teach mode on the shutter contact, press
the teach button with a pointed object. The device
LED flashes orange.
(Abort with a short press of the teach button, the
device LED will then illuminate in red.)
If no teaching occurs, teach mode is automatically
ended after 20 seconds. If other devices are in teach
mode, these are taught.
If learning is completed successfully, it is indicated
with the flashing green LED (length of time depends
on whether it is still configuring).
40
Note: If the sensor is already taught for a
center and therefore is blocked for direct trai-
ning, it can still be put in teach mode as described
above but no teaching occurs and the device LED is
illuminated in red for two seconds.
Green LED
Red LED
Orange flashing
Brief orange flashing
and red or green
(depending upon
success)
8 Feedback by the device LED
The feedback signals apply for operation with and
without the center.
No actuators have been taught yet:
Status change: LED is briefly illuminated
Teaching successful
Teaching failed
Sensor in teach mode
Other device in teach
mode and sensor put in
teach mode.
