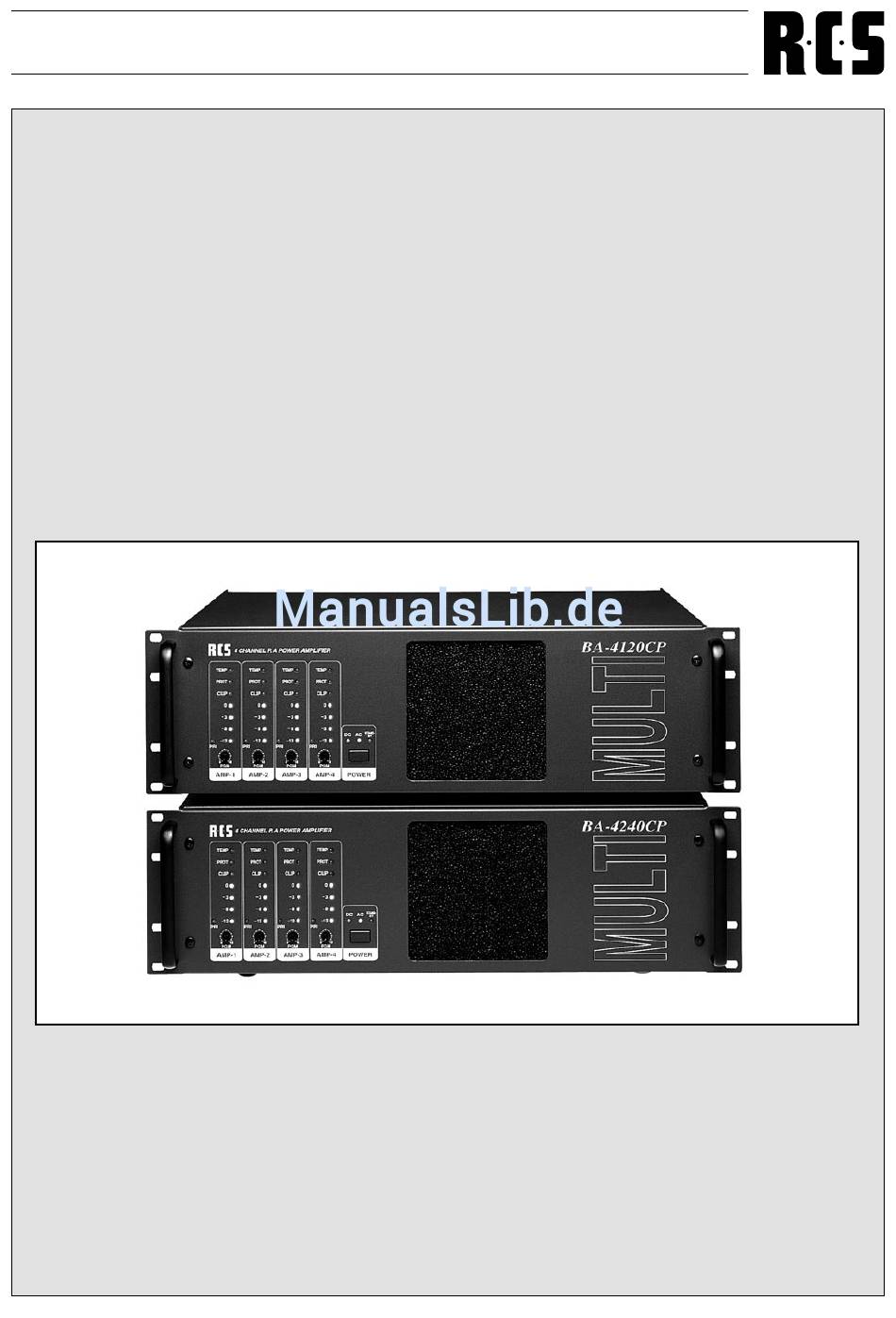

BA-4060/4120/4240 CP SAFETY INSTRUCTIONS SICHERHEITSHINWEISE Read all instruction before operating. Vor Inbetriebnahme des Gerätes bitten wir sie die Sicherheits- hinweise aufmerksam zu lesen. 1. Install equipment as follow condition: Install at flat place, not bending curved. 1. Installation nach folgenden Richtlinien: Do not install near the water and moisture.
Seite 3
BA-4060/4120/4240 CP MOUNTING MONTAGE Amplifier racking size JPA series are designed for standard Die Verstärker sind mit seitlichen Befestigungswinkeln für den 19" rack mounting. Please pay close attention to the cooling Einbau in 19" Gestelle versehen. Zusätzlich empfiehlt sich die requirements.
BA-4060/4120/4240 CP FRONT PANEL CONTROLS VORDERSEITE 1. EIN- /AUSSCHALTER 1. POWER SWITCH/LEDS Dieser Schalter ist ohne Funktion, wenn eine 24 V DC Not- When DC power is supplied, the power switch is without stromversorgung anliegt, das heißt das Gerät kann nicht effect, the amplifier will continue operate after power switch ausgeschaltet werden.
BA-4060/4120/4240 CP REAR PANEL CONTROLS RÜCKSEITE 1. PROGRAM AUDIO INPUT TERMINALS 1. PROGRAMM EINGÄNGE Audio input terminal of Program signal (for normal announ- Symmetrische Audio Eingänge (INPUT) für Programm- und cment) with screw terminal. Signaleinspeisung, wobei durch die Phönix-Stecker der Ver- Input level is +4dBu (1,23 V) 30 kΩ...
Seite 6
BA-4060/4120/4240 CP • For JRG-220 A • Priorität durch Relaisfeld JRG-220 A Connect terminal of AMP PRIORITY CONTROL OUT of Mit dieser Schaltung wird die Priorität vom Relaisfeld JRG- JRG-220 A. 220 A ausgelöst. 5. ROUTING SCHALTER 5. ROUTING SWITCH 1 - 4 Diese drei "ROUTING SWITCH"- Schalter ermöglichen das You can push routing switch for parallel connection, then Zusammenschalten der Eingänge, wodurch diese Endver-...
Seite 7
BA-4060/4120/4240 CP 8. POWER REMOTE 8. "POWER REMOTE“- KONTAKT This is screw connection for Power Remote switch when Ferneinschalten des Verstärkers möglich, wenn der Haupt- main switch is "OFF" and only for 230 V AC. schalter nicht gedrückt ist und keine 24 V DC anliegen. 9.
Seite 12
BA-4060/4120/4240 CP Electromagnetic compatibility and low-voltage guidelines: RCS leaves all devices and products, which are subject to the CE guidelines by certified test laboratories test. By the fact it is guaranteed that you may sell our devices in Germany and in the European Union domestic market without additional checks.
