5. Installation instruction and calibration
17. If there is no screen device to monitor the video image, install the product with the
vertical and horizontal balance as shown in the picture below. Then start the engine, drive
outdoors and wait for GPS reception.
After checking the GPS reception, follow the step 15.

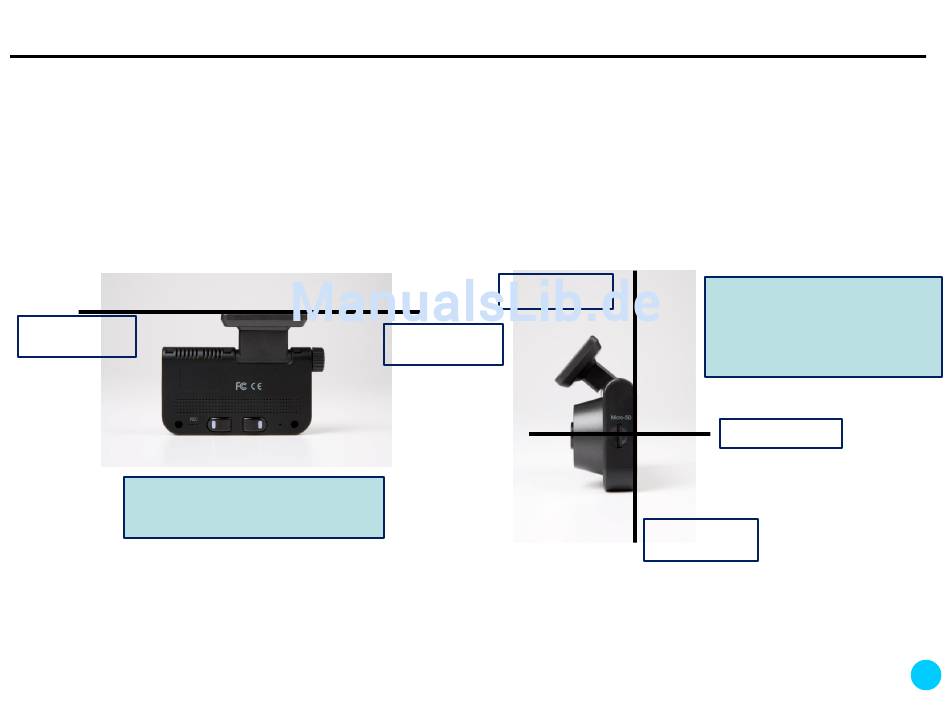

Fix the bracket horizontally with the front windshield. Fix the main body with the angle
adjusting bolt horizontally with the ground.
horizontal
Fix the bracket horizontally
with the front windshield.
vertical
horizontal
Fix the main body with
the angle adjusting bolt
horizontally with the
ground.
Horizontal
vertical
